Greenlee  |  SKU: 50072056  |  Barcode: 783310072058

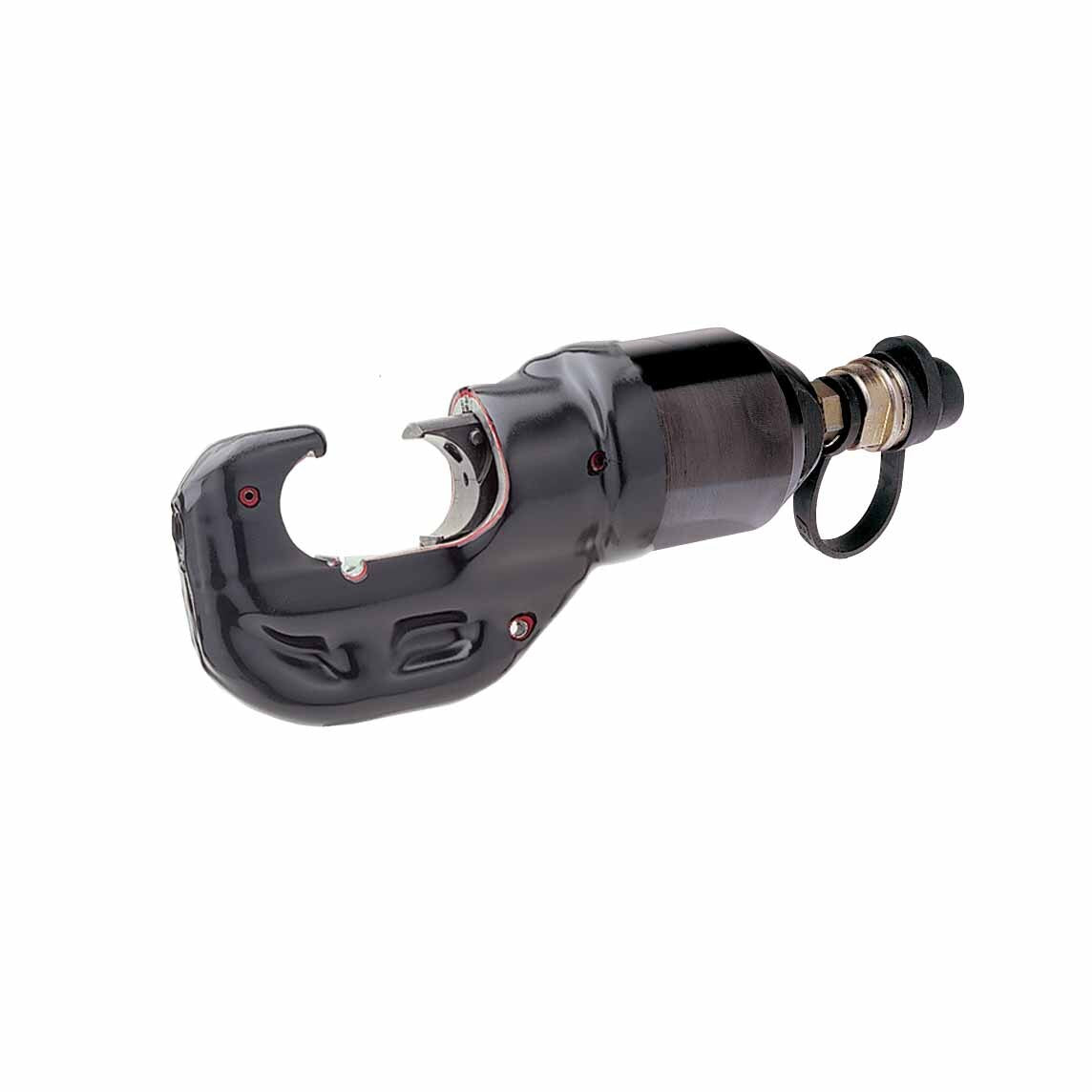

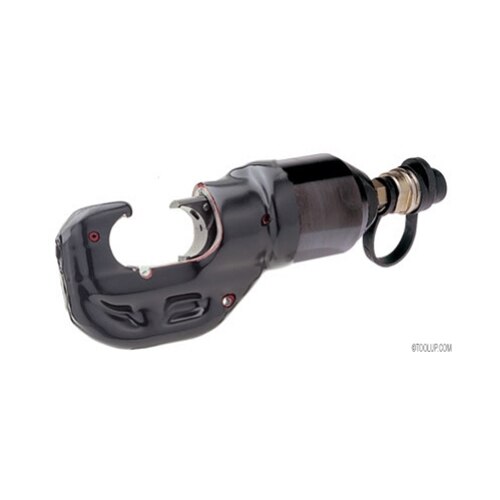

Greenlee RK1240C 42mm Remote Powered Crimping Head Assembly

Free Shipping
$2,116.50 $2,836.75
Loading delivery estimate...

Description
Features:
  • Three crimping head choices: RK1230 for industry U type dies with 1.20" (30 mm) opening, RK1240 for industry U type dies with 1.65" (42 mm) opening, and RK1240K for Kearney PH2 type dies.
  • New head designs result in lower weight and improved durability - tested to 50,000 crimp cycles.
  • Boss included on each crimping head for use with hotsticks.
  • Easy to get into tight locations, lightweight makes them excellent choices for hotstick use.
  • Single-acting tools that require an external hydraulic pump capable of 10,000 psi (700 bar).
  • Equipped with a 3/8" male screw type coupler.
  • Capable of crimping a wide range of lugs, C-taps, H-taps and overhead tension sleeves.
  • Covered head models have two layers of PVC that total approximately 3/16" (4.8 mm) thick.
  • The outer layer is black and the inner layer is red.
  • Includes steel carrying case.

Specifications:
  • Capacity: RK1240K - ASCR terminals 1033 kcmil (MCM), ASCR tension fittings 477 kcmil (MCM)
  • Crimping Force: 24,000 lbs (106 kN)
  • Length: RK1230 - 10-3/4" (273 mm); RK1240 - 11-7/8" (302 mm); RK1240K - 12-1/4" (311 mm)
  • Weight: RK1230 - 8.7 lbs (3.9 kg); RK1240 & RK1240K - 9.7 lbs. (4.4 kg)
  • Max. Operating Pressure: 10,000 psi (700 bar)
