Greenlee TAG-5000/KIT1 Tag Wireless Phaser Kit
Description
Description
Greenlee TAG-5000/KIT1 Description

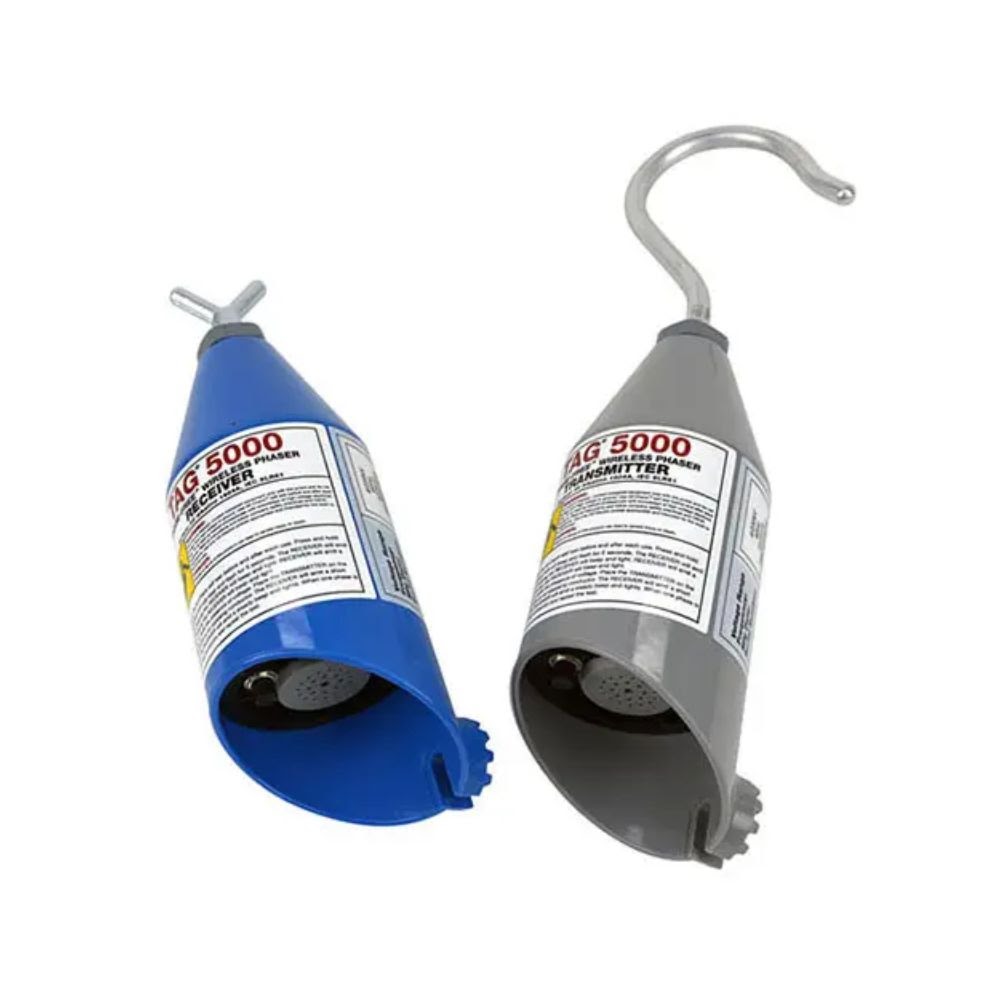

The Greenlee TAG-5000/KIT1 (52068926) TAG Wireless Phaser Set with Transmitter, Receiver, Overhead and Unground Probes, 4kV to 230kV, is a two unit system used to verify an in-phase condition between any two phases of a three phase power system. The TAG-5000 can be used anywhere a typical phasing voltmeter is used and many places where phasing voltmeters cannot be used due to distance or higher voltages. The TAG-5000 is supplied with a carrying case, the receiver and transmitter units and two probes (one hook and one "Y" probe) designed for overhead use. The probes are interchangeable between the two units, and can be selected based on preferred placement and company procedures. The Kit also includes underground probes for underground or pad mount applications or for any application where the TAG-5000 will be used in close proximity to grounded conductors or surfaces. Each unit has a universal spline hot stick attachment built into the housing; extension hot sticks (sold separately) should always be used. Both units are powered by 9V lithium or alkaline batteries
Greenlee TAG-5000/KIT1 Includes
- (1) TAG-5000 Transmitter & Receiver Set
- (2) Underground Bushing Probes, 15/25/35 kV Class (IEP-UD/C)
- (1) Overhead Suspension Small Hook Probe (TAG-AC60)
- (1) Overhead "Y" Probe (TAG-42029)
- (1) Metal Carrying Case (CM-5000)
Greenlee TAG-5000/KIT1 Features
- Phases conductors on system voltages up to 230kV line-to-line
- Transmission range is over 33 ft. through air and more than 1000 ft. along overhead conductors
- Performs phasing operations through walls and metal enclosures
- Beeps and flashing lights provide clear in-phase/out-of-phase indications
- Wireless operation with no connecting cord required
- All-Check self-test feature verifies proper operation prior to use
- Rugged and lightweight design ideal for field use
- Suitable for both overhead and unground applications
- Equipped with built-in universal spline hot stick attachments (hot stick sold separately)
- Supplied with overhead hook probe, overhead "Y" probe, and underground bushing probe
Greenlee TAG-5000/KIT1 Specifications
| Operating Voltage Range: | 4kV to 230kV Line-to-Line |
| Operating Frequency: | Can be used on 50Hz and 60Hz systems |
| Phasing: | In Phase Indication for Phase Angle Shift Is ? 10°; No In Phase Indication For Phase Angle ? 30° |
| Transmission Radio Frequency: | 433.9MHz |
| Transmission Power: | < 10Mw |
| Transmission Range: | More than 33 ft. through air; over 1000 ft. along overhead conductors & underground cables with polyethylene insulation |
| Diplay Type: | Audible and Visual Alert |
