At a Glance
CAT Rating
CAT IV
Voltage Range
12-1000 V
Detection Type
Voltage
Sold As
Individual
Color
Black/Green
Description
Description
Greenlee VW-20H Description

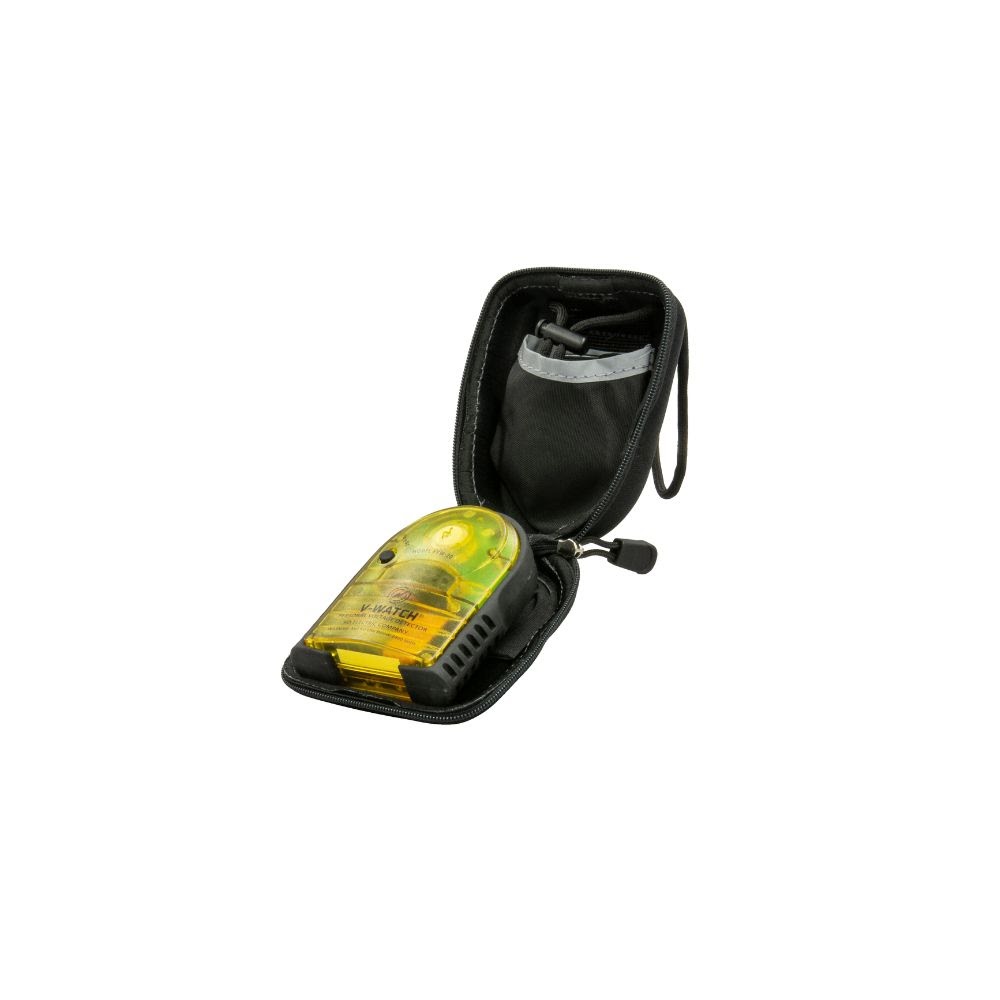

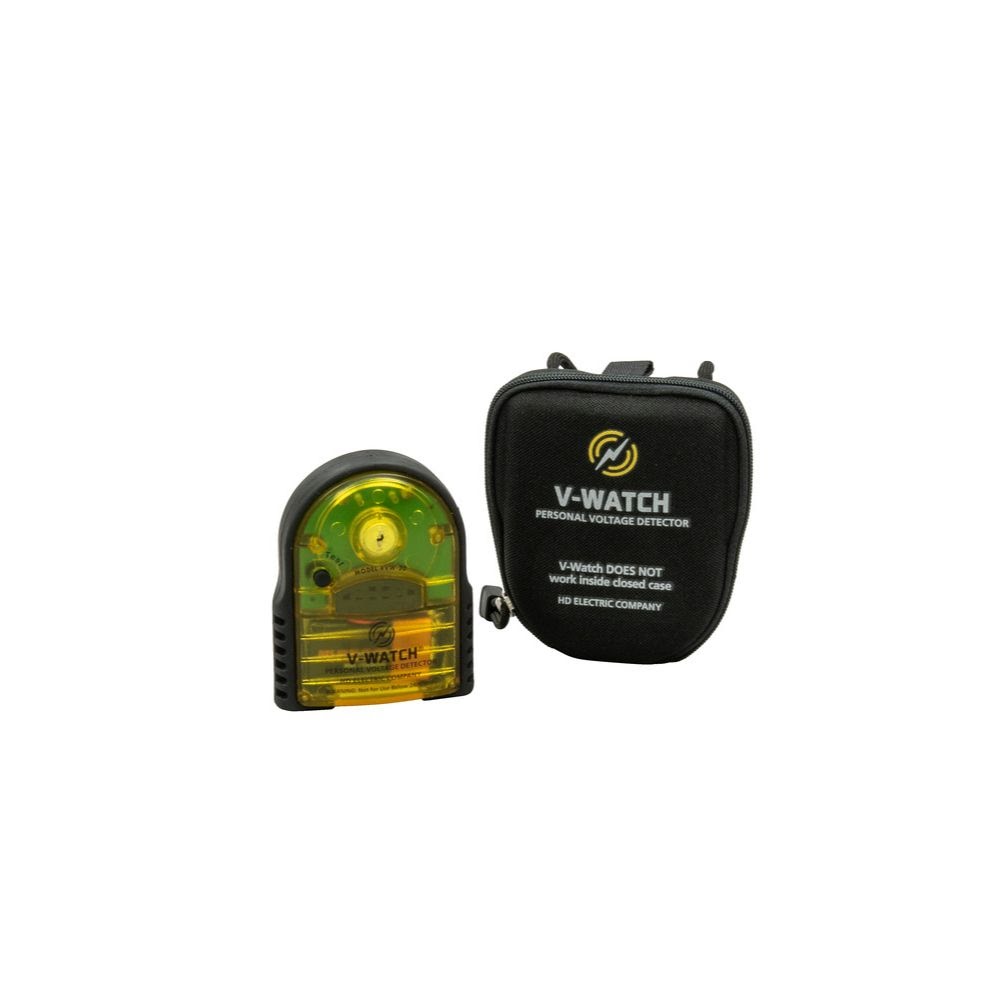

The Greenlee VW-20H (52068928) is a V-Watch Personal Voltage Detector with a Lanyard Case. It detects strong electric fields surrounding high voltage conductors. It emits loud beeps and flashing lights when an electric field is detected, increasing in frequency as the source is approached. The self-test button verifies battery power and proper device functioning.
Greenlee VW-20H Includes
- (1) VW-20H Detector
- (1) Carrying Case
Greenlee VW-20H Features
- Provides another level of safety for line crews, storm restoration workers and first responders
- Alerts user to the proximity of electric fields or energized electrical equipment with a loud alarm and bright lights
- Frequency of alarm increases as the user gets closer to the electrical hazard
- Detects voltage above 4kVAC line-to-line
- Typical initial warning distance is about 7 ft from a 4kVAC conductor
- Warning distance increases with higher voltages
- Field replaceable 9V battery with low battery indicator
Greenlee VW-20H Specifications
| Type | Personal Voltage Detector |
| Frequency Rating | 50/60Hz |
| Voltage Rating | 2400VAC and Above - Do Not Use Below 2400VAC Line-to-Ground |
| Indication Type | Audible and Visual Alert |
| Model | VW-20H |
| Overall Length | 3.5" |
| Sub Brand | HDE |
Toolup Part # :
424674
