FEATURES:

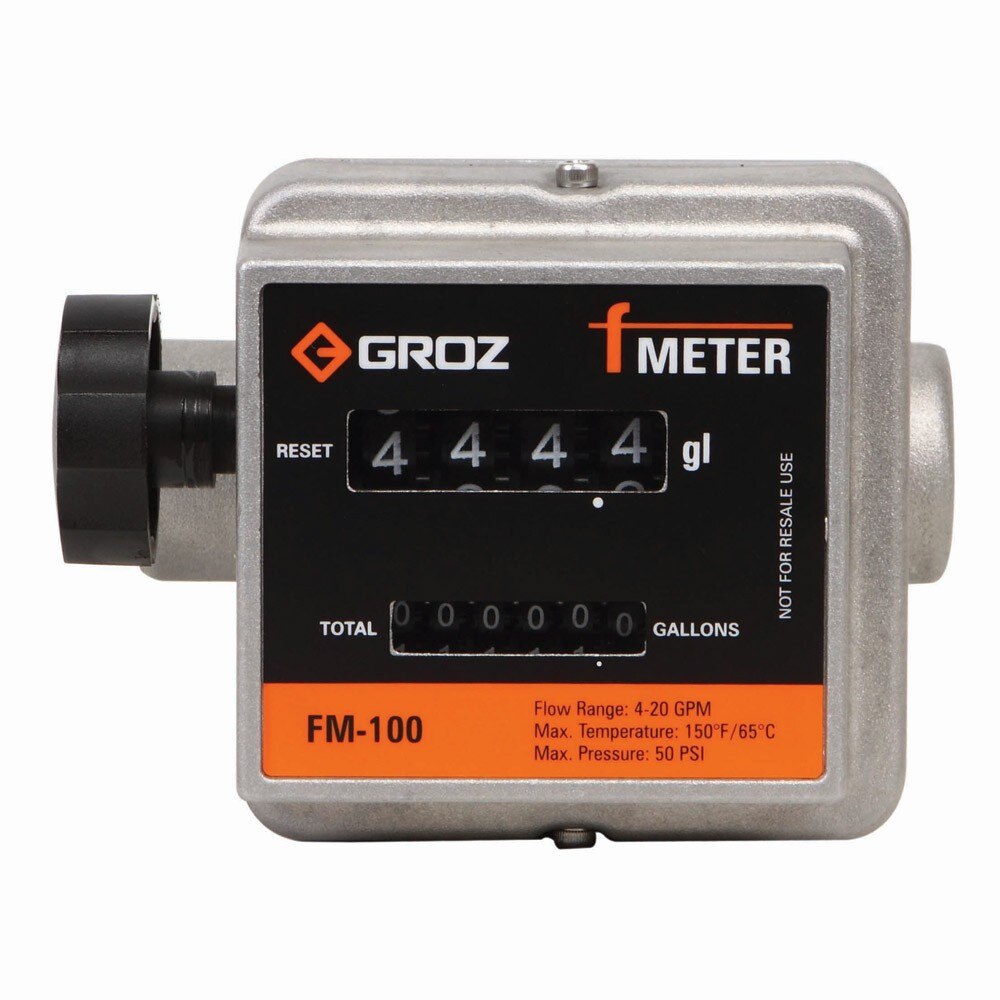

• Mechanical Fuel Meter (Gallons), 3/4" NPT (F)
• Flow Range 4-20 GPM.
• Resettable batch counter. Non resettable Totalizer.
• 3 Port Design – Can be fitted in-line of with inlet and outlet port at right angle.
• Easy reading and recalibration. Comes with instruction manual
Mechanical Fuel Meter (Gallons) , 3/4" NPT Flow Range 4-20 GPM. Max Temperature 150 degrees F. Max pressure 50 PSI. Resettable batch counter. Non resettable Totalizer. Non Resettable totalizer may have logged gallons due to flow testing on unit. Robust Aluminum Die Construction. 3 Port Design – Can be fitted in-line of with inlet and outlet port at right angle. Nutating Disc Mechanism, High tolerance to fuel contamination. Foe use with electric fuel pumps and gravity feed Applications Easy reading and recalibration. Comes with instruction manual.
• Mechanical Fuel Meter (Gallons), 3/4" NPT (F)
• Flow Range 4-20 GPM.
• Resettable batch counter. Non resettable Totalizer.
• 3 Port Design – Can be fitted in-line of with inlet and outlet port at right angle.
• Easy reading and recalibration. Comes with instruction manual
Mechanical Fuel Meter (Gallons) , 3/4" NPT Flow Range 4-20 GPM. Max Temperature 150 degrees F. Max pressure 50 PSI. Resettable batch counter. Non resettable Totalizer. Non Resettable totalizer may have logged gallons due to flow testing on unit. Robust Aluminum Die Construction. 3 Port Design – Can be fitted in-line of with inlet and outlet port at right angle. Nutating Disc Mechanism, High tolerance to fuel contamination. Foe use with electric fuel pumps and gravity feed Applications Easy reading and recalibration. Comes with instruction manual.
Toolup Part # :
306291
