Guardian 00103 Description

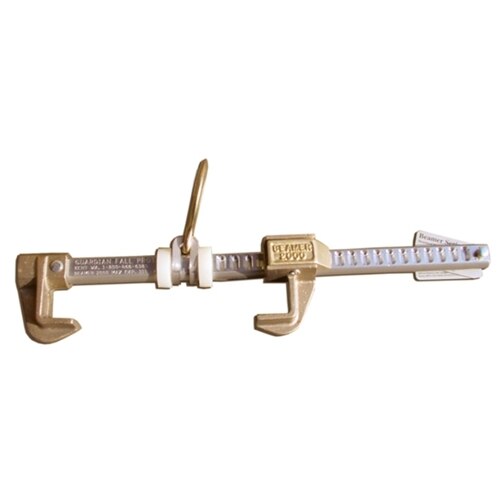

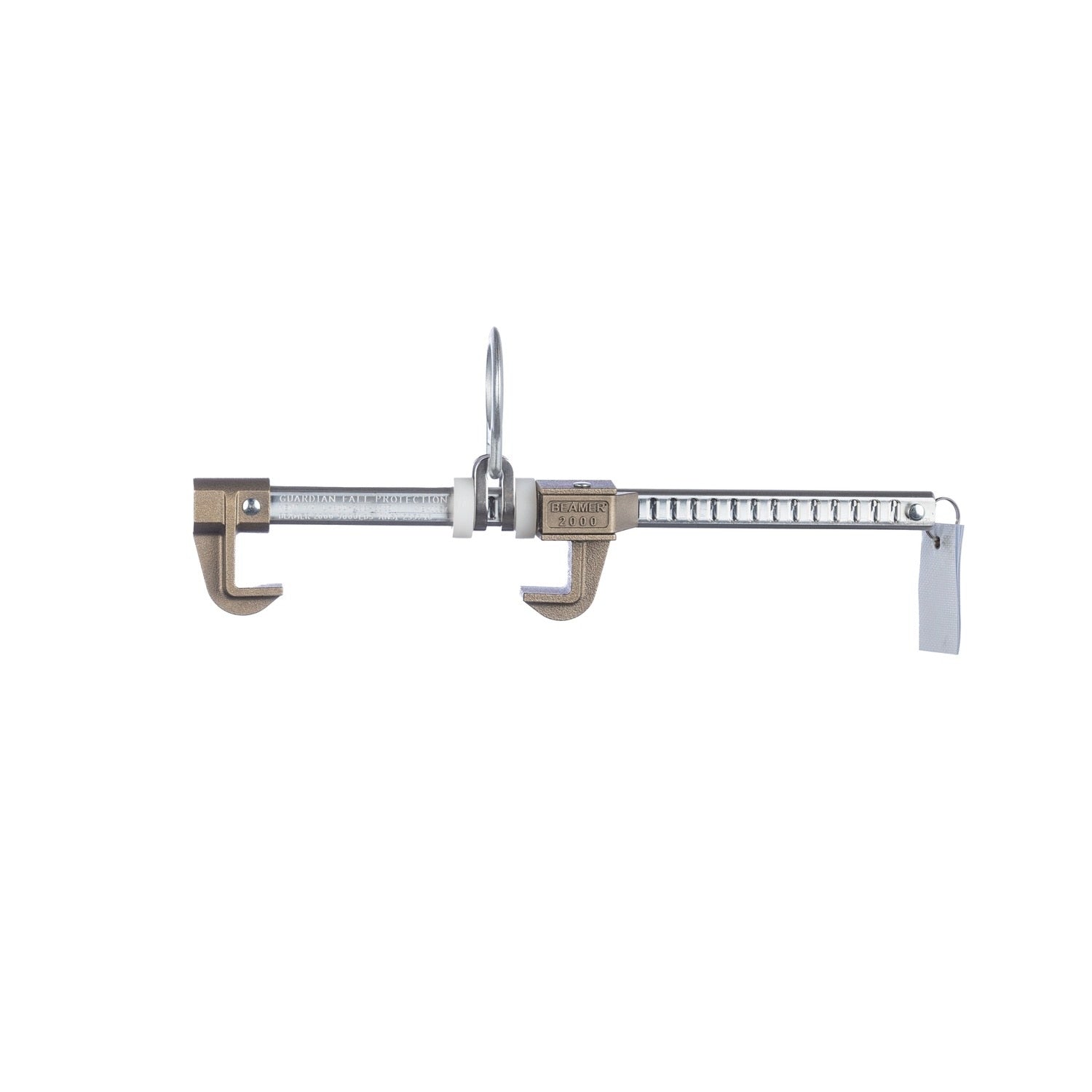

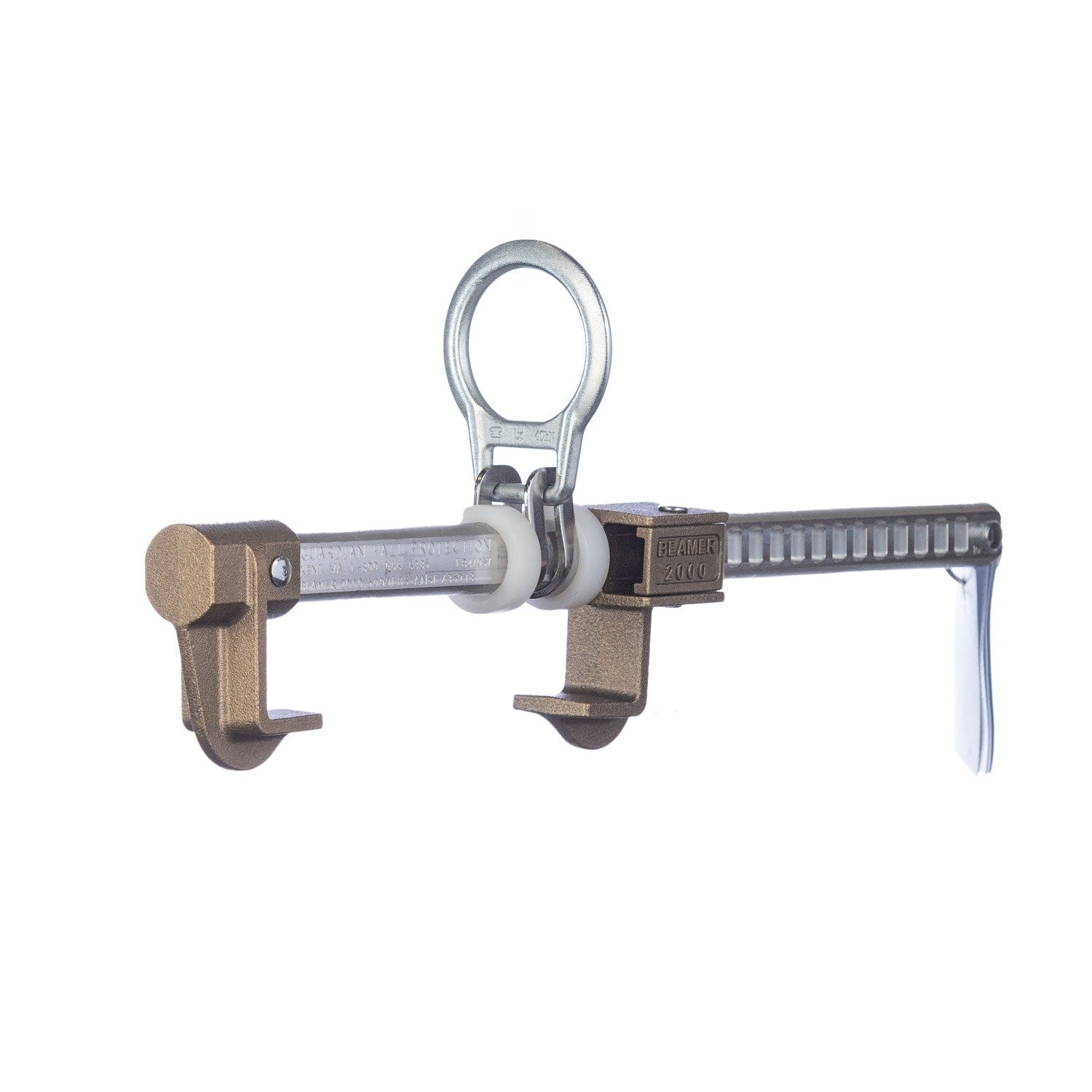

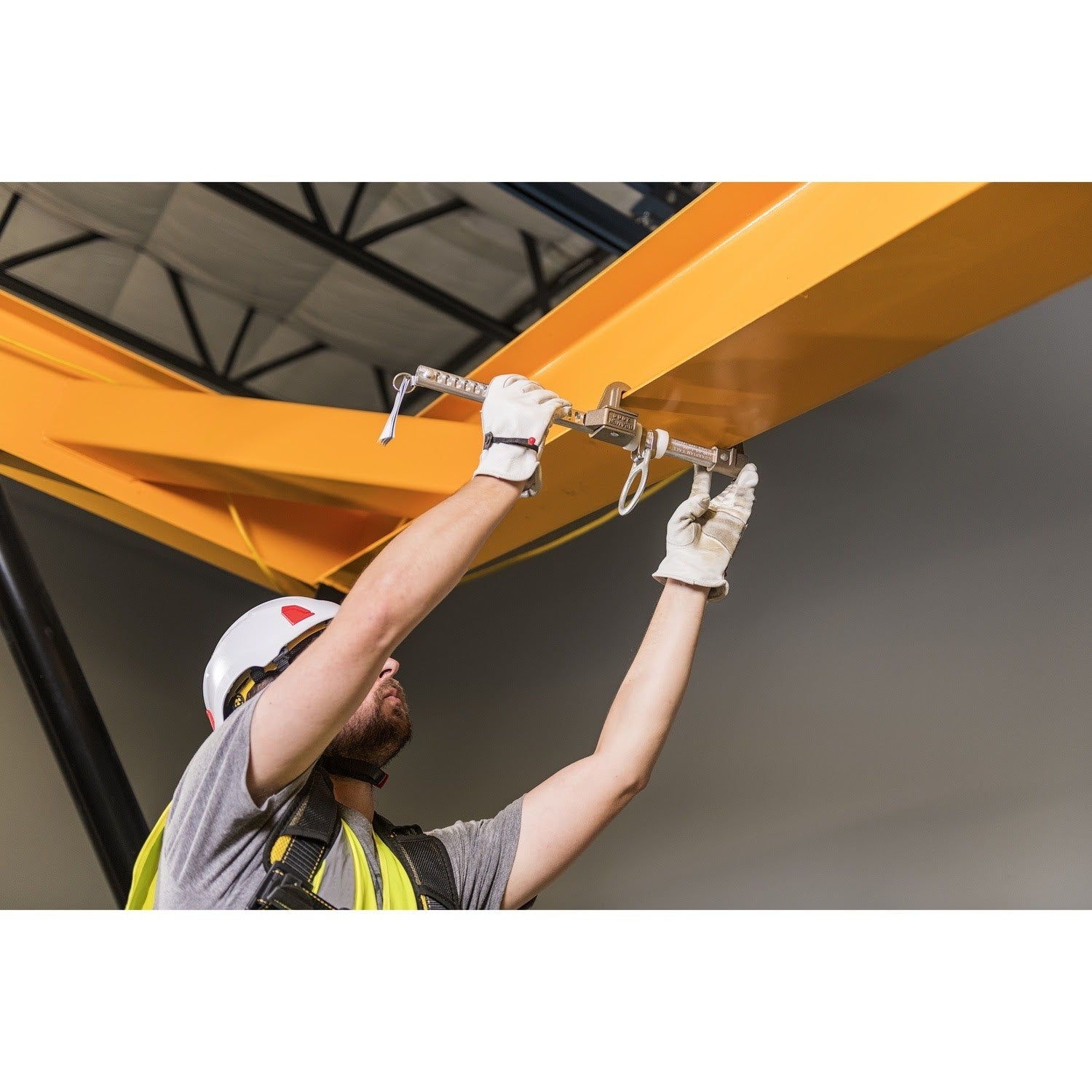

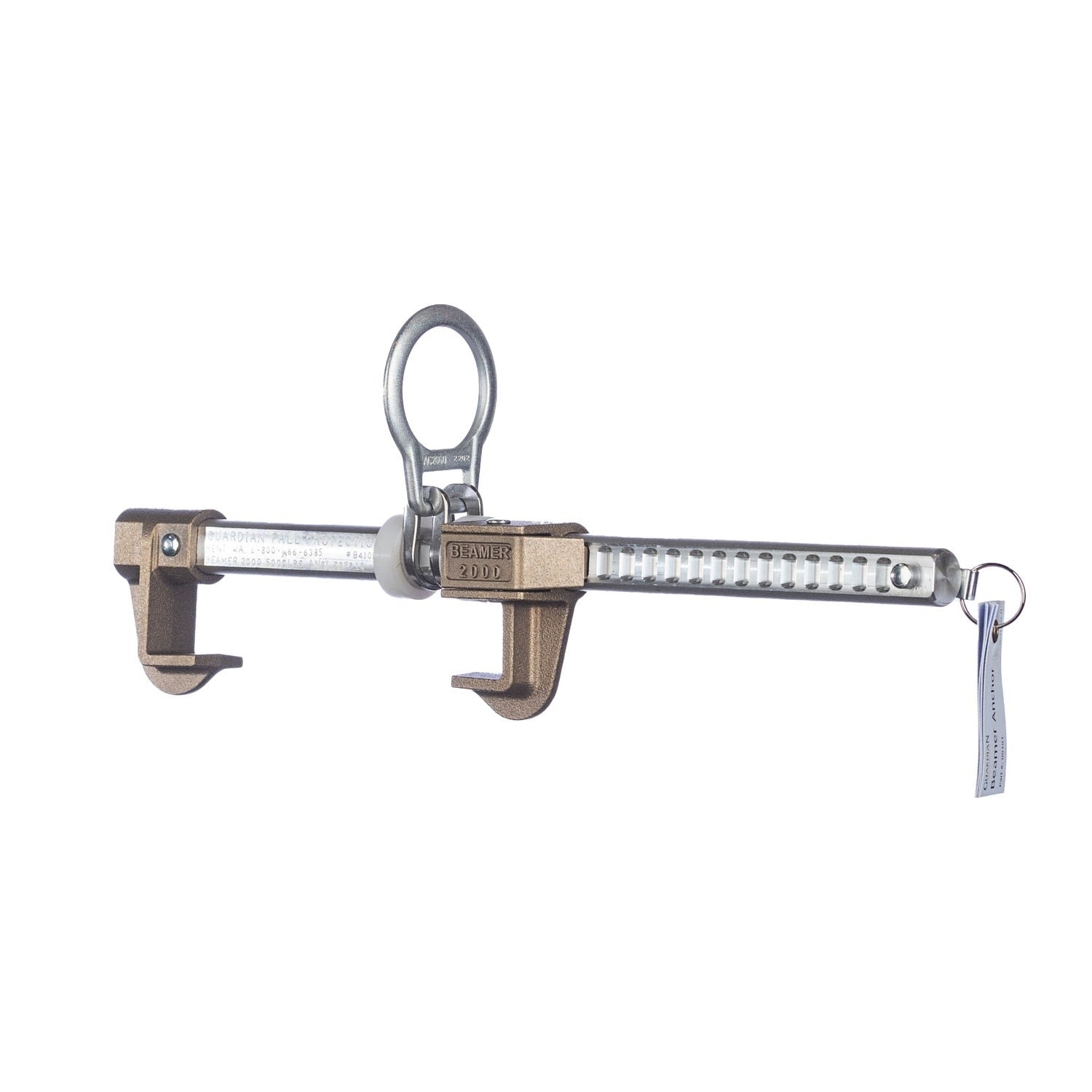

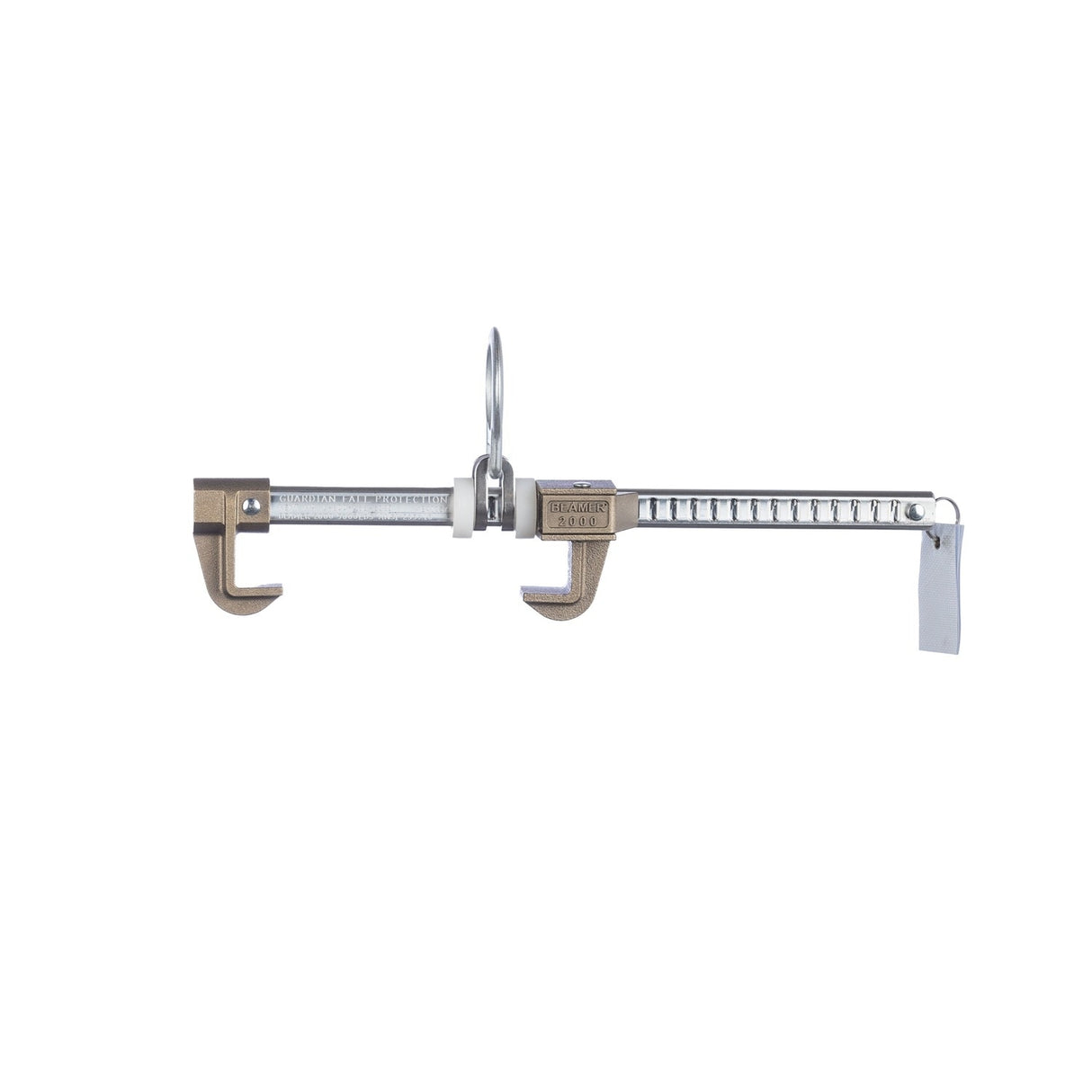

The Guardian Beamer 2000 is a trailing anchorage connector for I or H structural steel beams that allows hands-free travel along or under the beam without repositioning. Designed for foot-level or overhead tie-offs, it features long-wearing bronze-manganese hooks and an oversized locking lever for easy adjustment with gloved hands.
Guardian 00103 Includes
- (1) Guardian 00103 Beamer 2000 Trailing Beam Anchor
Guardian 00103 Features
- Trailing anchorage connector for I or H structural beams
- Compatible with foot-level or overhead tie-offs
- Allows traversal along or under beams without repositioning the anchor
- Oversized locking lever for positive grip and precise adjustment with gloved hands
- Bronze-manganese hooks slide smoothly and resist slag and contaminants
- Nylon bushings enable smooth D-ring travel and act as an impact indicator
- Pivoting D-ring helps keep connection point in optimal orientation
- Fits beams 6 to 16 inches with flanges up to 1.25 inches thick
- Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017 requirements
- Tensile strength rated to 5,000 lb
Guardian 00103 Specifications
| Product Type | Trailing anchorage connector (beam anchor) |
| Fits Beam Width | 6 to 16 in |
| Max Flange Thickness | 1.25 in |
| Tensile Strength | 5,000 lbs |
| Worker Capacity | 130 to 420 lbs |
| Material | Aluminum |
| Color/Finish | Stainless and galvanized steel, aluminum |
| Standards Compliance | OSHA 1910.140; OSHA 1926.502; ANSI Z359.18-2017 |
| Unit Length | 31 in |
| Unit Width | 8.5 in |
| Unit Height | 4 in |
| Unit Weight | 4.6 lb |
| UPC (Each) | 672421001036 |
| GTIN-14 (Each) | 672421001609 |
| Country of Origin | UNITED STATES |
