At a Glance
Weight Capacity
420 lb
Beam Width Range
8 in-18 in
Clamp Capacity
2-1/2 in
Material
Steel
Sold As
Individual
Mount Type
Beam Clamp
Safety Rating
ANSI Z359.18, OSHA 1926.500
Description
Description
Guardian 00125 Description

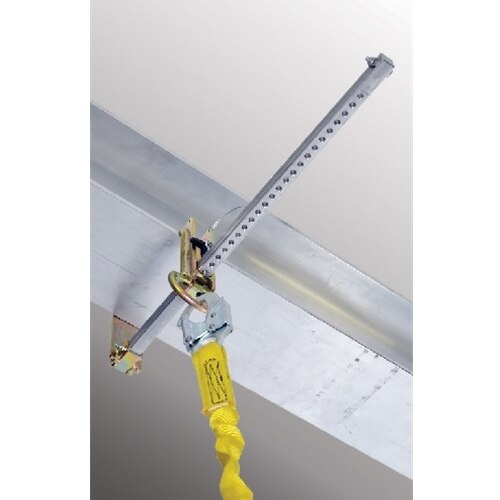

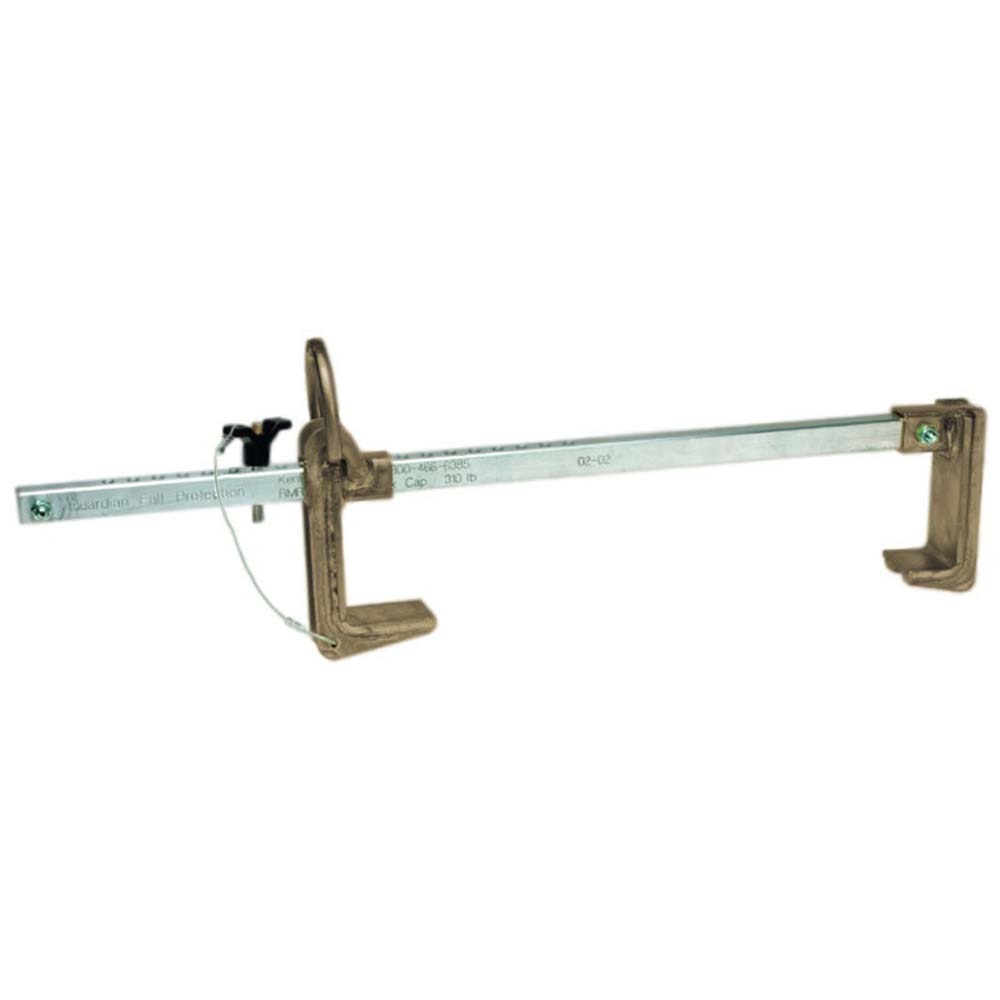

The Guardian Beamer Large Beam Clamp is a fall arrest anchorage connector designed for use on the top or bottom flange of steel I or H beams. Built for durable jobsite performance, it offers snag-free operation and resists welding slag and other contaminants.
Guardian 00125 Includes
- (1) Beamer Large Beam Clamp
Guardian 00125 Features
- Fall arrest anchorage connector for steel I or H structural beams
- Designed for use on the top or bottom flange of the beam
- Snag-free operation helps improve ease of use
- Durable components resist welding slag and other contaminants
- Rated for 130-420 lbs. worker capacity
- 5,000 lbs tensile strength
- Meets ANSI Z359.18-2017, OSHA 1926.502, and OSHA 1910.140 requirements
Guardian 00125 Specifications
| Product Type | Beam clamp fall arrest anchorage connector |
| Beam Compatibility | Steel I or H structural beams |
| Fits Beam Width | 8 in. to 18 in. |
| Tensile Strength | 5,000 lbs |
| Weight Capacity | 130-420 lbs. |
| Product Length | 26.5 in. |
| Product Width | 4 in. |
| Product Height | 7.9 in. |
| Product Weight | 4.2 lb |
| Standards Compliance | ANSI Z359.18-2017, OSHA 1926.502, OSHA 1910.140 |
| Country of Origin | United States |
Toolup Part # :
17485
