Guardian 00163 Description

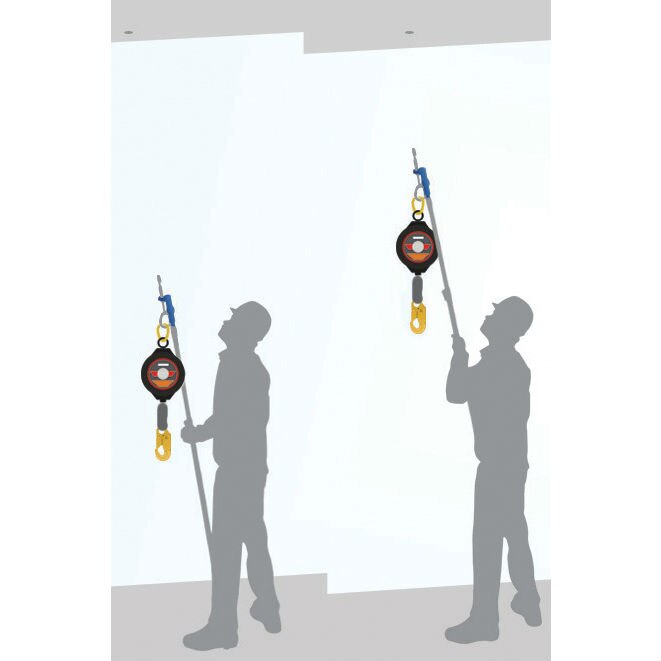

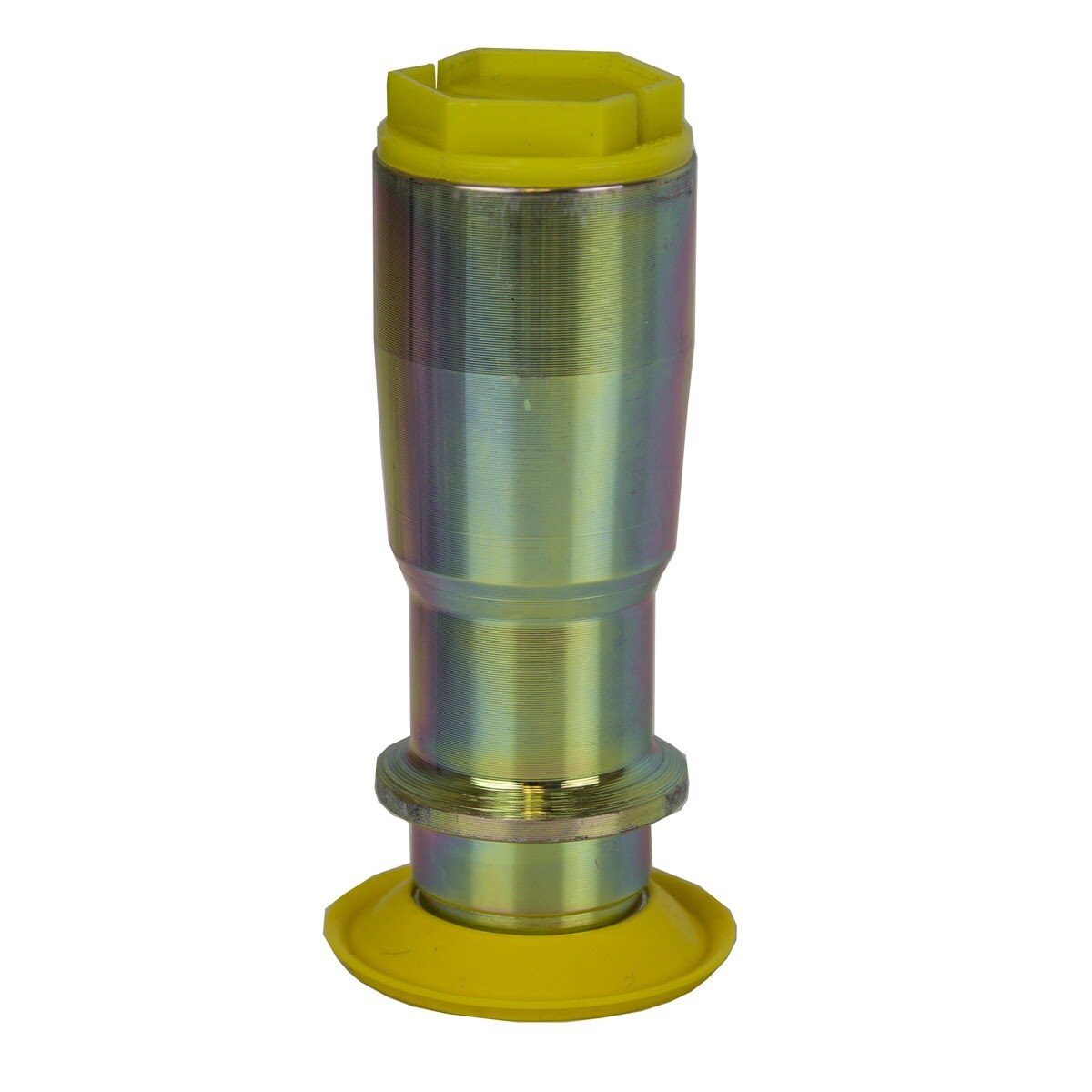

This Guardian cast-in concrete anchor receptacle is designed for installation in wood or metal decking as part of the Ground-Up Anchor System, helping workers install a fall arrest anchor from the ground when used with compatible system components. It is rated to a 5,000 lb tensile strength and meets ANSI Z359.1 requirements.
Guardian 00163 Includes

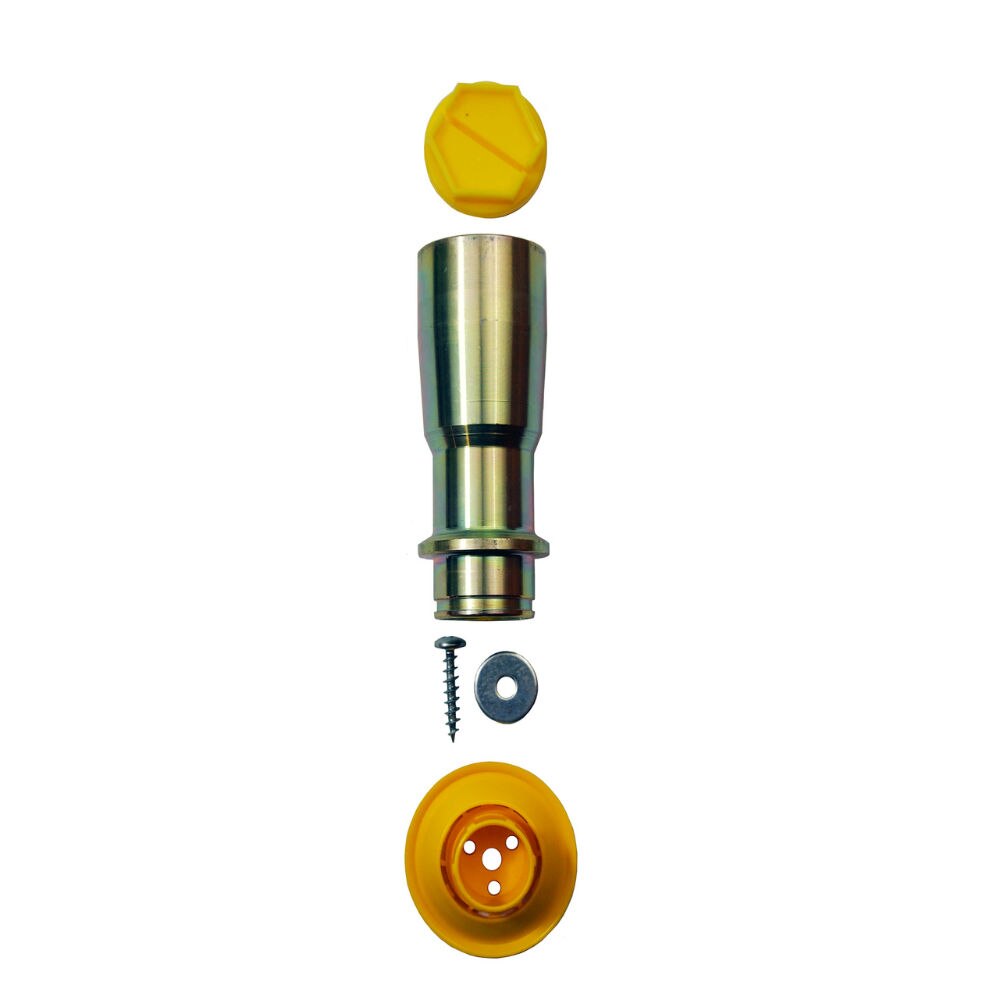

- (1) Cast-In Concrete Receptacle
Guardian 00163 Features
- Cast-in place anchor receptacle for wood or metal decking applications
- Designed for use with the Ground-Up Anchor System components
- Tensile strength rated at 5,000 lb
- Meets ANSI Z359.1 compliance
- Weight capacity range: 130 to 420 lb
- Made in the United States
Guardian 00163 Specifications
| Brand | Guardian |
| Part Number | 00163 |
| Product Type | Cast-In Concrete Receptacle |
| Application | Wood or Metal Decking |
| Tensile Strength | 5,000 lbs |
| Weight Capacity | 130-420 lbs. |
| Standards Compliance | ANSI Z359.1 |
| Material | Aluminum, Steel, Zinc-Plated Steel, & Stainless Steel |
| Country of Origin | US |
| Product Length (in) | 6 |
| Product Width (in) | 6 |
| Product Height (in) | 12 |
| Shipping Weight (lb) | 56 |
| Tariff Code | 7616.99.5050 |
