Guardian 00240 Concrete Swivel Anchor D-ring and Bracket Assembly
Description
Description
Guardian 00240 Description

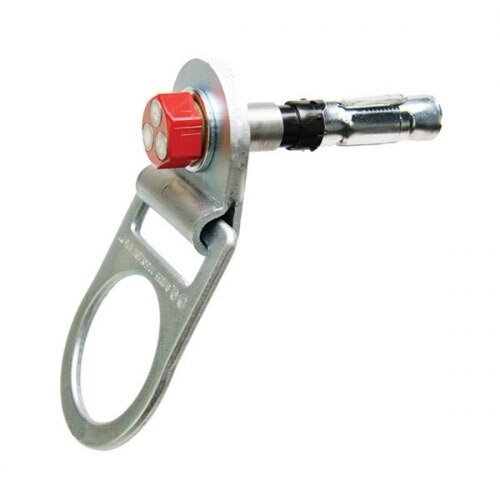

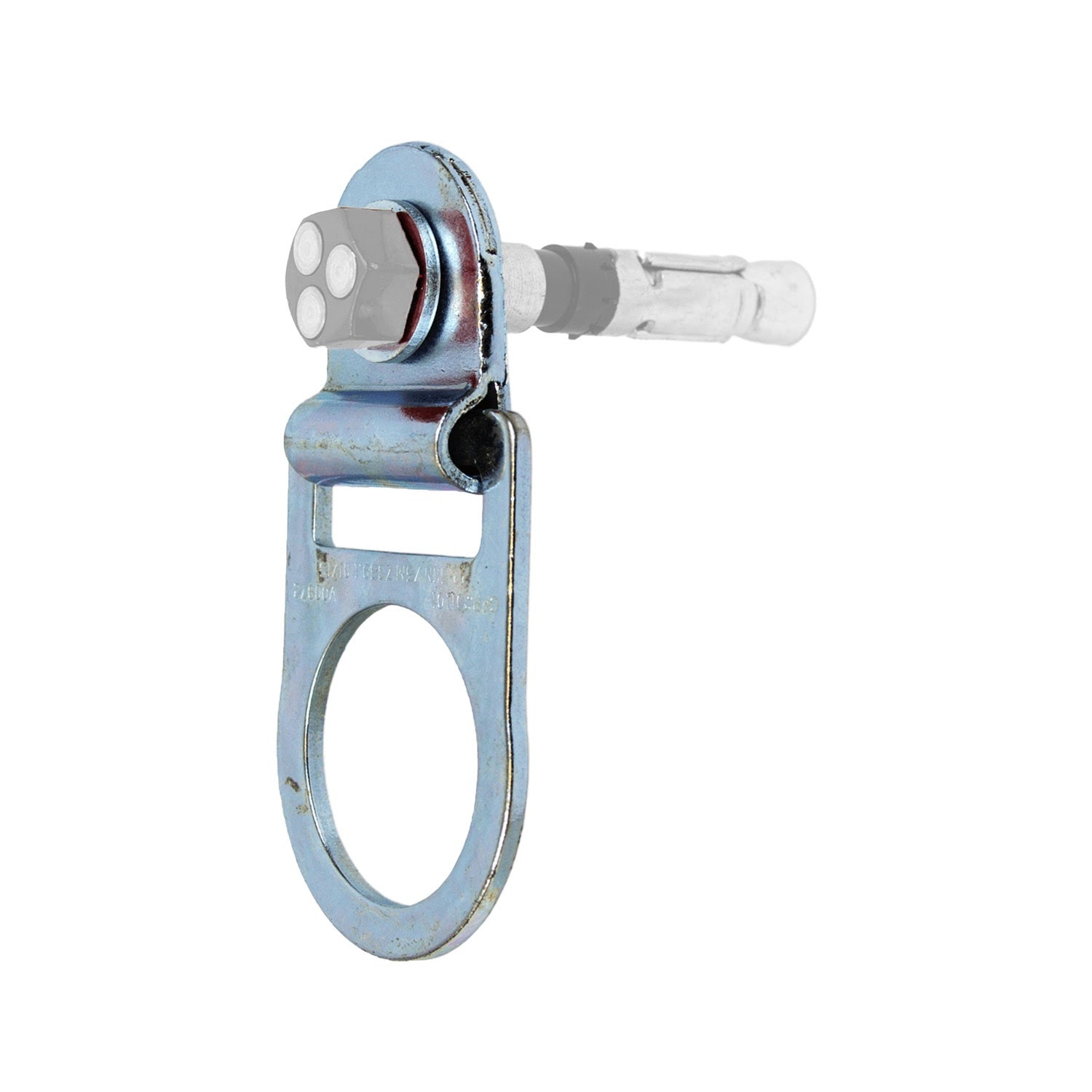

Guardian 00240 Concrete Swivel Anchor D-ring and Bracket Assembly. Fall Protection Concrete Swivel Anchor is specially designed to include a visual indicator that allows the user to clearly see when it is installed correctly (when proper torque is reached, the red cap will break away to display a green cap). This anchorage connector is composed of high strength steel and stainless steel to make it capable of functioning in a variety of rough environments, and functions to rotate 180° to allow for increased mobility. It is compliant with all applicable OSHA and ANSI regulations, and is suited for both temporary and permanent applications.
Guardian 00240 Includes
- (1) Swivel Anchor assembly
Guardian 00240 Features
- Has a visual indicator that allows the user to see that the anchor is hooked up properly: the red cap will break off & green will appear once the proper torque is reached
- Sturdy design of high strength plated steel & stainless steel makes the anchor capable of working in a wide variety of rough environments
- Rotates 180° degrees
- Meets or exceeds all applicable OSHA & ANSI standards
Guardian 00240 Specifications
Weight | .6 lbs |
Dimensions | 5.73”(L) x 3”(W) x 4 ½”(H) |
Weight capacity | 310 lbs |
Minimum breaking strength | 5,000 lbs |
Minimum compression strength | 3,000 psi |
Hole size for installation | 11/16”, ¾” hole (no special drill bits are needed) |
The D-ring Bracket | Zinc plated steel |
The D-ring | Forged alloy steel |
