At a Glance
Material
Galvanized Steel
Sold As
Individual
For Use On
Concrete
Mount Type
Rigid Plate
Safety Rating
ANSI Z359.18, OSHA 1910.140, OSHA 1926.502
Description
Description
Guardian 00645 Description

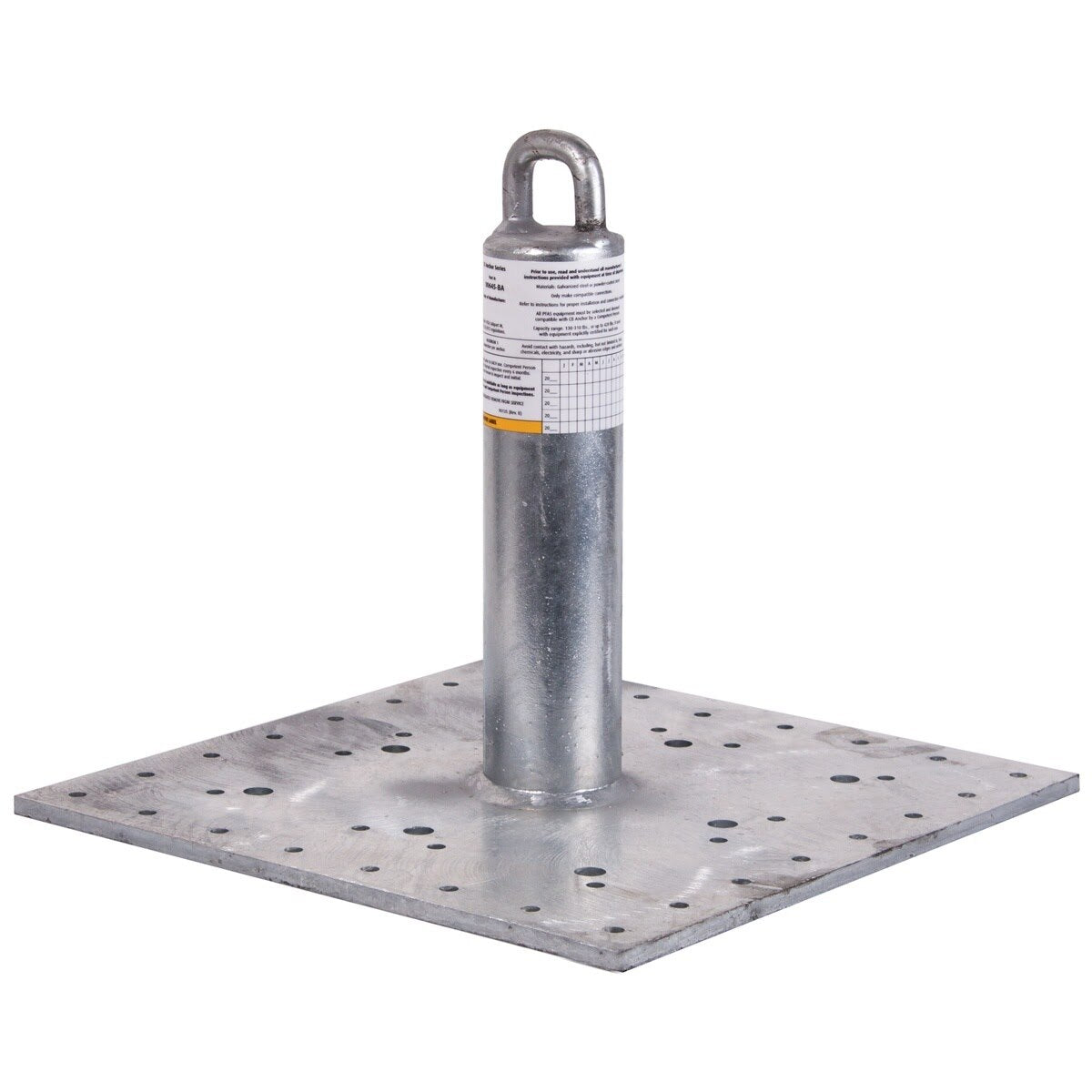

The Guardian CB-12 Anchor Post is a permanent, post-style roof anchorage connector built from galvanized steel for long-term corrosion resistance. Designed for installation on concrete, wood, I-beams, or steel decking, the 12 in. post extends through finished roofing for convenient tie-off. It can be used as a single-user anchor point or as part of a compatible horizontal lifeline system for expanded work area coverage and OSHA-compliant fall protection.
Guardian 00645 Includes
- (1) CB-12 Anchor Post
Guardian 00645 Features
- Permanent post-style roof anchor for fall arrest applications
- Galvanized steel construction helps resist corrosion for long-term rooftop use
- Compatible with multiple substrates including concrete, wood, I-beams, and metal decking
- 12 in. post height designed to extend through finished roofing for easy connection
- Can be used as a single-user tie-off point or with horizontal lifeline systems
- OSHA 1910.140 and OSHA 1926.502 compliant; meets ANSI Z359.18-2017
Guardian 00645 Specifications
| Brand | Guardian |
| Category | Anchorage Connectors |
| Anchorage Connector Type | Roofing |
| Anchor Type | Fall Arrest |
| Material | Steel |
| Finish | Galvanized |
| Color | Steel |
| Post Height | 12 in. |
| Mounting Location | Finished Roof |
| Substrate Type | Wood; Metal Deck; Concrete; Backer Plate |
| Concrete Thickness | 6 in. |
| Concrete PSI | 2500; 3000; 3500; 4000; 4500; 5000 |
| Wood Thickness | 5/8 in.; 3/4 in.; 1 in.; 2 in.; 3 in.; 4 in.; 5 in.; 6 in. |
| Metal Thickness | 16 ga; 18 ga; 20 ga; 22 ga |
| Tensile Strength | 5,000 lbs |
| Weight Capacity | 130-420 lbs. |
| Backer Plate Compatible | Yes |
| Top Style | U-Bar |
| Standards Compliance | OSHA 1910.140; OSHA 1926.502; ANSI Z359.18-2017 |
| Product Length | 16 in. |
| Product Width | 16 in. |
| Product Height | 13 in. |
| Shipping Weight | 35 lb |
| Country of Origin | United States |
Toolup Part # :
17894
