Guardian 00690 Description

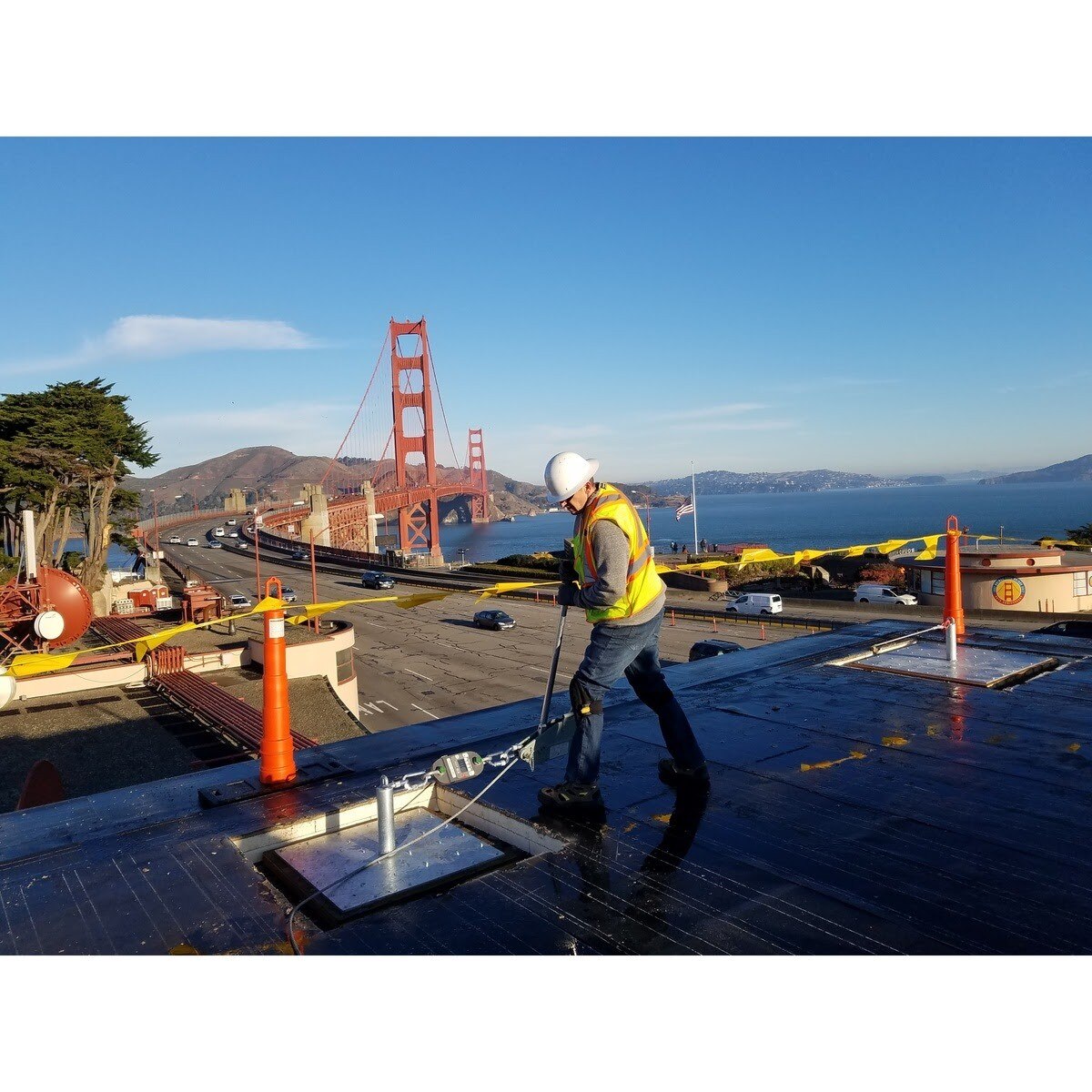

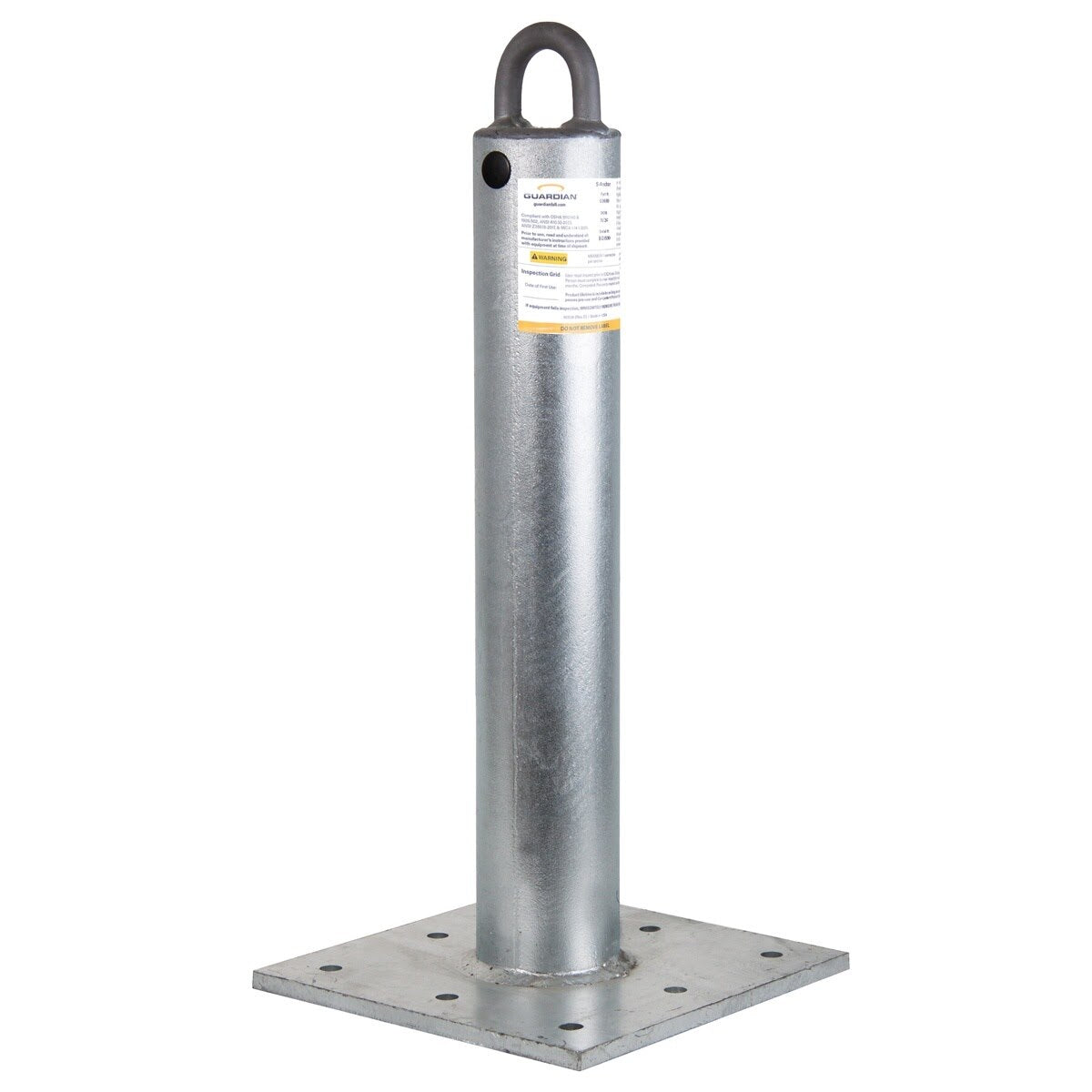

The Guardian S-Anchor (00690) is a galvanized steel, post-style roofing anchor designed for tie-back and suspension work such as window washing and facade maintenance. Its oversized 24 in post allows installation through finished roof materials and it can also be used as a standard fall protection anchor. Built for concrete or backer plate installations and compatible with horizontal lifelines, it meets OSHA and ANSI requirements for demanding jobsite use.
Guardian 00690 Includes
- (1) Guardian 00690 S-Anchor Roofing Fall Protection Anchor with Baseplate
Guardian 00690 Features
- Post-style anchor designed for tie-back and suspension applications, including window washing and full-suspension work
- 24 in post accommodates a wide range of finished roof materials during installation
- Galvanized steel construction for durability in demanding environments
- Designed for concrete and backer plate installations
- Compatible with horizontal lifeline systems for expanded fall protection setups
- Meets OSHA 1910.140 and OSHA 1926.502 requirements
- Meets ANSI Z359.18-2017 requirements
- Tensile strength rated at 5,000 lb
- Weight capacity supports 130 to 420 lb
Guardian 00690 Specifications
| Brand | Guardian |
| Model | S-Anchor |
| Anchor Type | Fall Arrest; RDS / Window Washing |
| Anchorage Connector Type | Roofing |
| Material | Steel |
| Finish | Galvanized |
| Post Height | 24 in |
| Top Style | Standard Loop |
| Anchor Post Top Style | U-Bar |
| Mounting Location | Finished Roof |
| Substrate Type | Concrete; Backer Plate |
| Concrete Thickness | 6 in |
| Concrete PSI | 2500 to 5000 PSI |
| Tensile Strength | 5,000 lb |
| Weight Capacity | 130 to 420 lb |
| Backer Plate Compatible | Yes |
| Standards Compliance | OSHA 1910.140; OSHA 1926.502; ANSI Z359.18-2017 |
| Packaged Dimensions | 12 in L x 12 in W x 28 in H |
| Product Weight | 57 lb |
