At a Glance
Material
Steel
Sold As
Individual
Mount Type
Clamp-On
Safety Rating
ANSI Z359.1, OSHA 1926.501, OSHA Compliant
Description
Description
Guardian 04701 Description

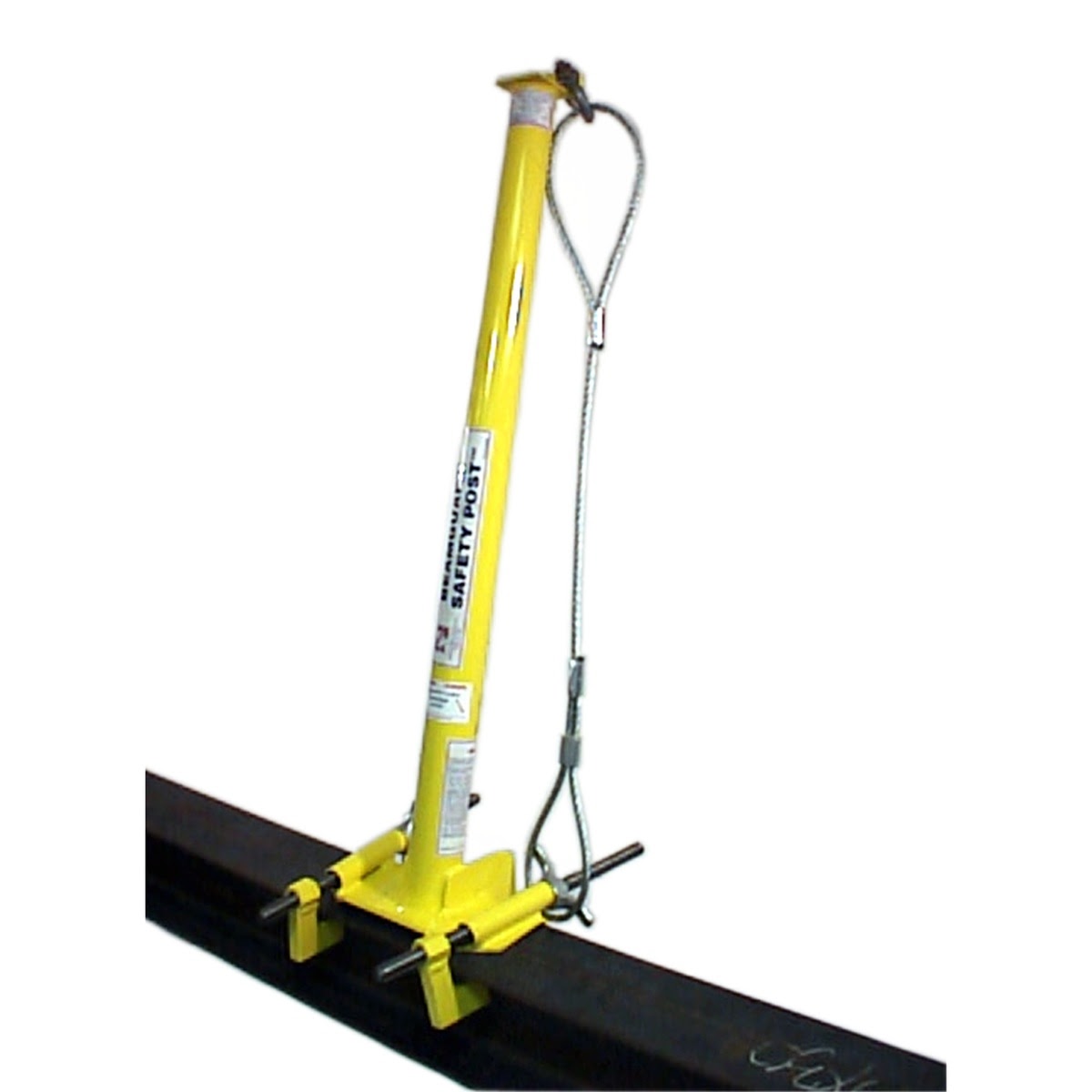

The Guardian Beamguard HLL Stanchion is an anchor post component designed for installation onto steel I-beams as part of a complete cable horizontal lifeline system. It elevates the lifeline off the beam to help reduce clearance requirements and help prevent contact with sharp edges and surfaces, and it can also be used as a standalone anchor point.
Guardian 04701 Includes
- (1) Beamguard HLL Stanchion
Guardian 04701 Features
- Powder-coated steel construction helps resist abrasion and impact and withstand prolonged exposure to wind and rain
- Accommodates horizontal lifeline installation both parallel and perpendicular to the I-beam
- Clamps to I-beam with no penetrations required
- Designed for use with standard Guardian horizontal lifeline systems
- Elevates the lifeline off the beam to help reduce clearance requirements and help avoid contact with sharp edges and surfaces
- Can function as a standalone anchor point
Guardian 04701 Specifications
| Product Type | Horizontal lifeline stanchion |
| Material | Powder-coated steel |
| Product Length | 48 in |
| Product Width | 12 in |
| Product Height | 9 in |
| Shipping Weight | 50 lb |
| Flange Hook Size | Intermediate - 24 in |
| Tensile Strength | 5,000 lb |
| Weight Capacity | 130-420 lb |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502 |
| Country of Origin | United States |
Toolup Part # :
136066
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
