Description
Description
Guardian 04727 Description

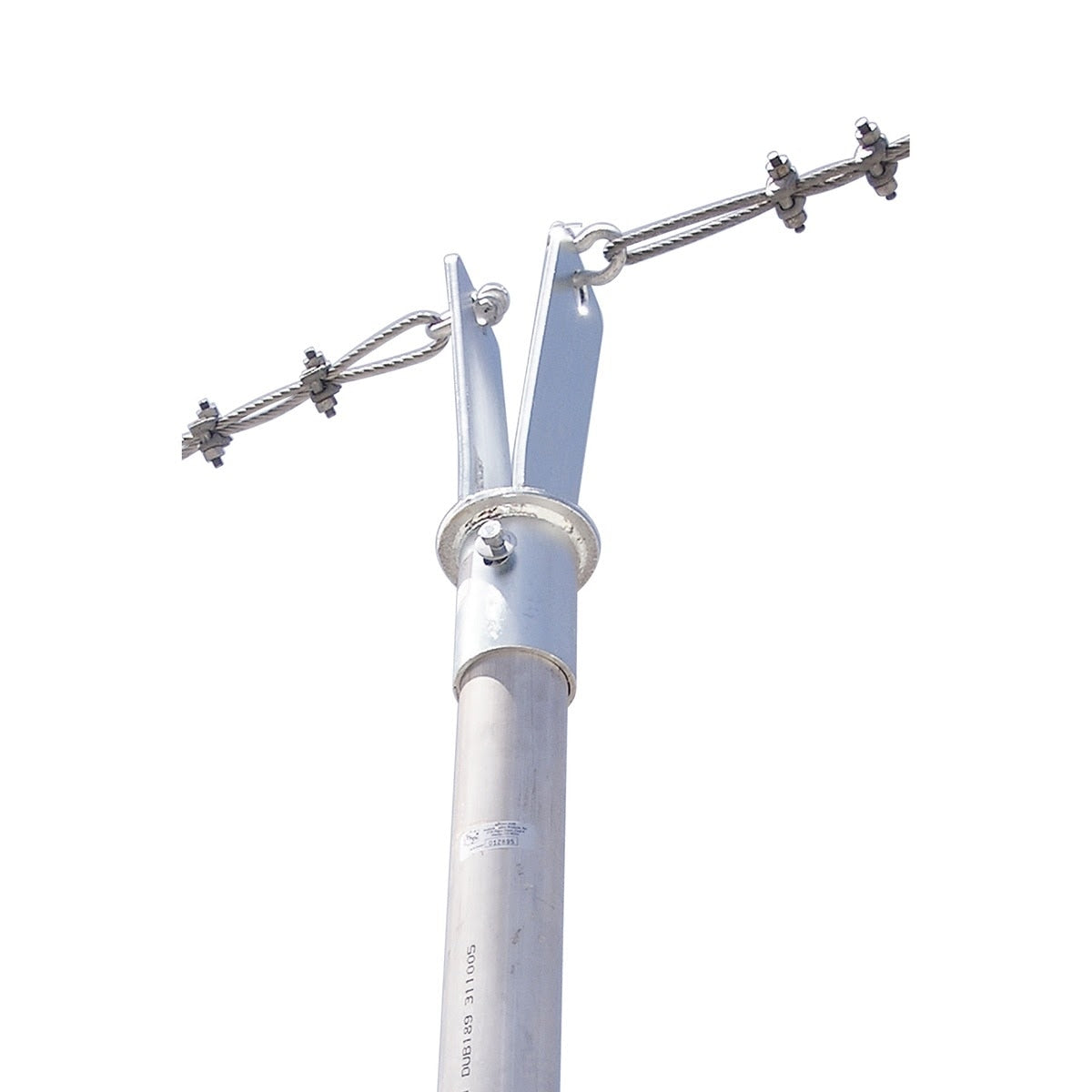

The Guardian Bridge Guard intermediate post is a 90 inch aluminum horizontal lifeline system component designed for bridge-building, precast concrete, and leading edge structural concrete applications. Its shock absorbing design helps dissipate fall arrest forces while providing a durable, weather-resistant solution for quick on-site HLL setup.
Guardian 04727 Includes
- (1) Bridge Guard Intermediate Post
Guardian 04727 Features
- Easy to install
- Designed for permanent horizontal lifeline system applications
- Cast in place or retrofit into existing concrete forms
- Shock absorbing pole and topper help dissipate fall arrest forces
- Lightweight aluminum construction for durability and weather resistance
- Reusable system component for bridge-building, precast concrete, and leading edge structural concrete applications
- Supports up to 2 workers in fall arrest applications
- Allows spans up to 60 ft between safety posts when used as part of the Bridge Guard HLL system
- Meets ANSI and OSHA compliance requirements for horizontal lifeline applications
Guardian 04727 Specifications
| Product Type | Intermediate Post |
| System | Bridge Guard |
| Material | Aluminum |
| Product Length (in) | 90 |
| Product Width (in) | 7 |
| Product Height (in) | 4 |
| Each Shipping Weight (lb) | 15 |
| Tensile Strength | 5,000 lbs. |
| Weight Capacity | 130-420 lbs. |
| Maximum Span Between Posts | Up to 60 ft |
| Standards Compliance | ANSI Z359.1-07; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910 |
| Country of Origin | US |
Toolup Part # :
136072
