Guardian 10645 Description

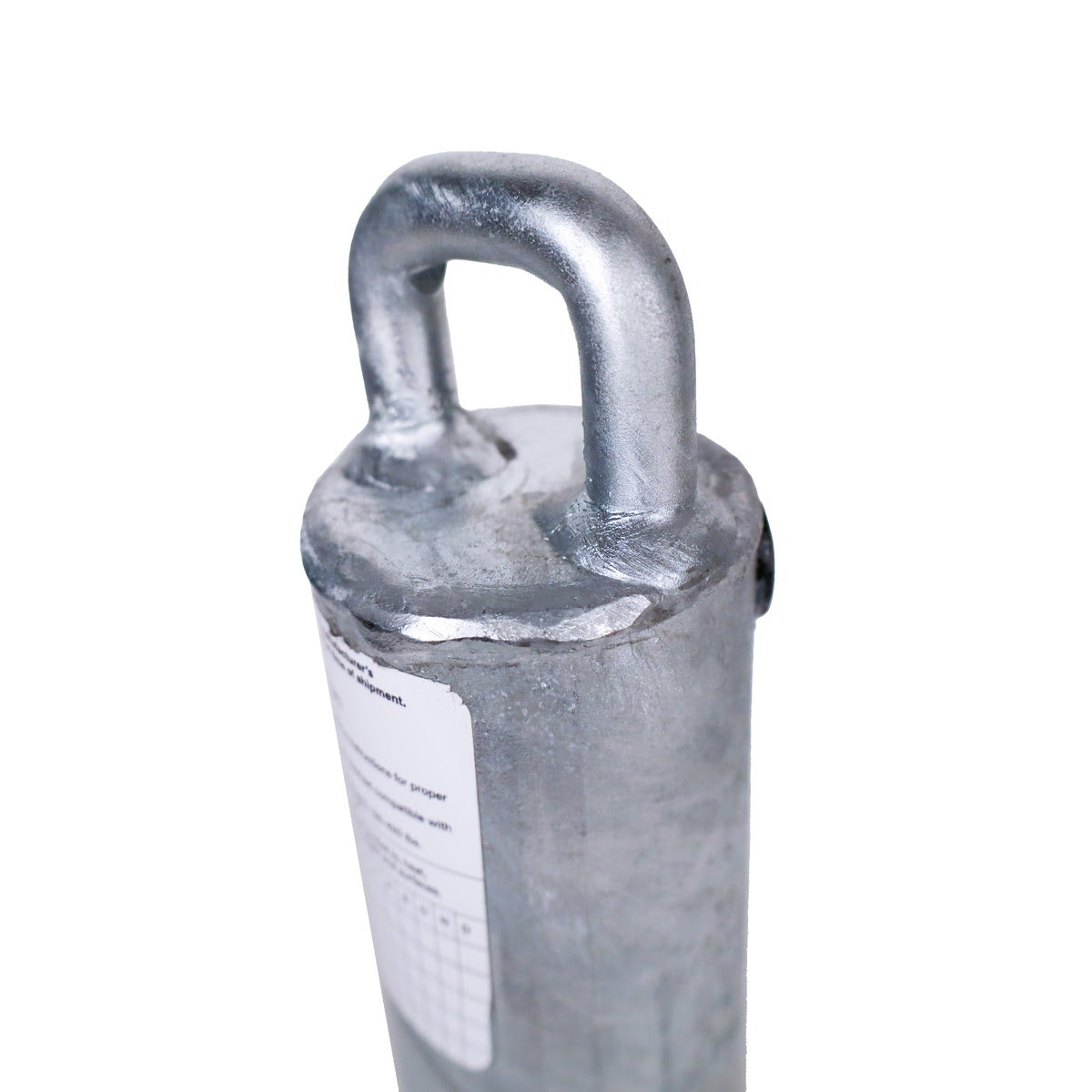

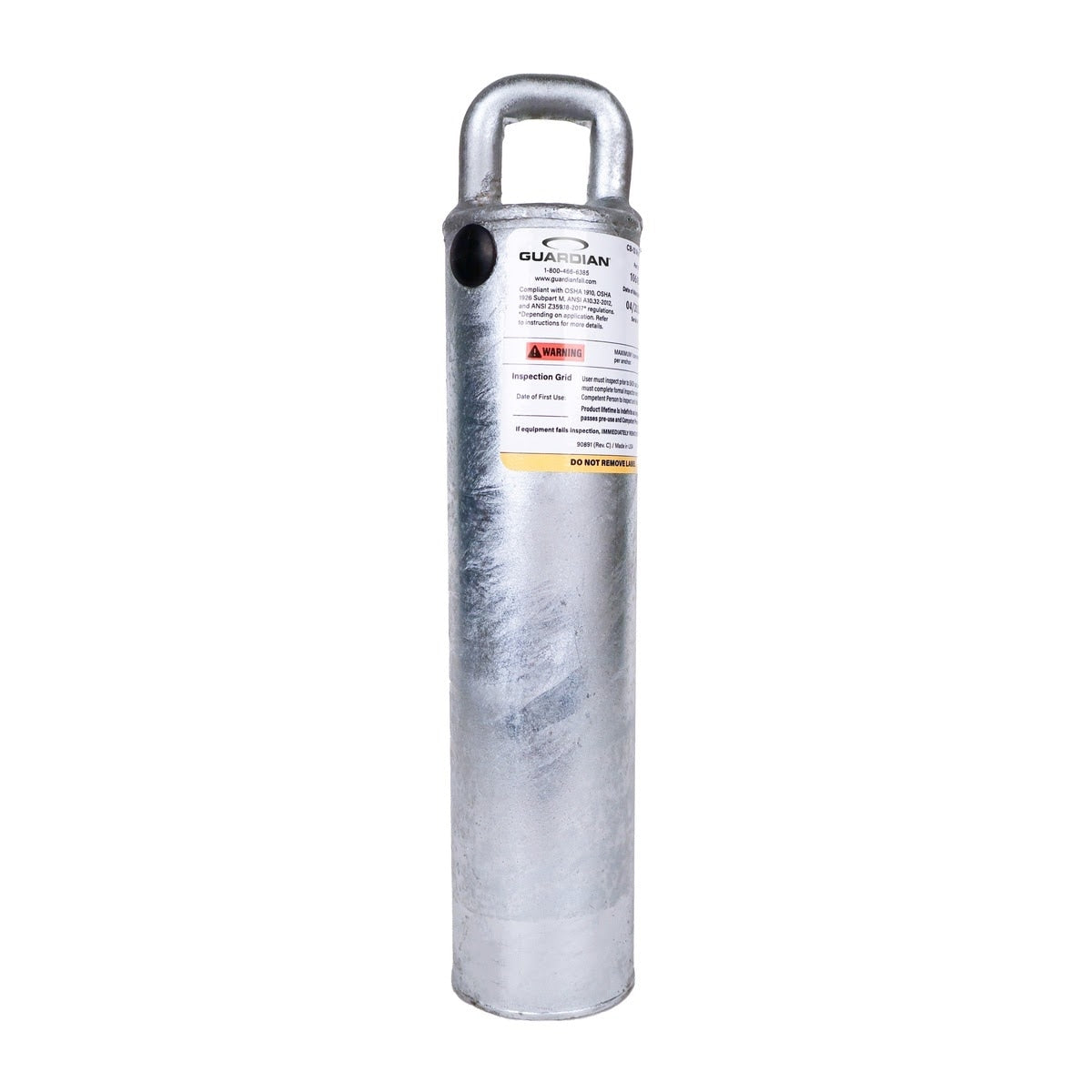

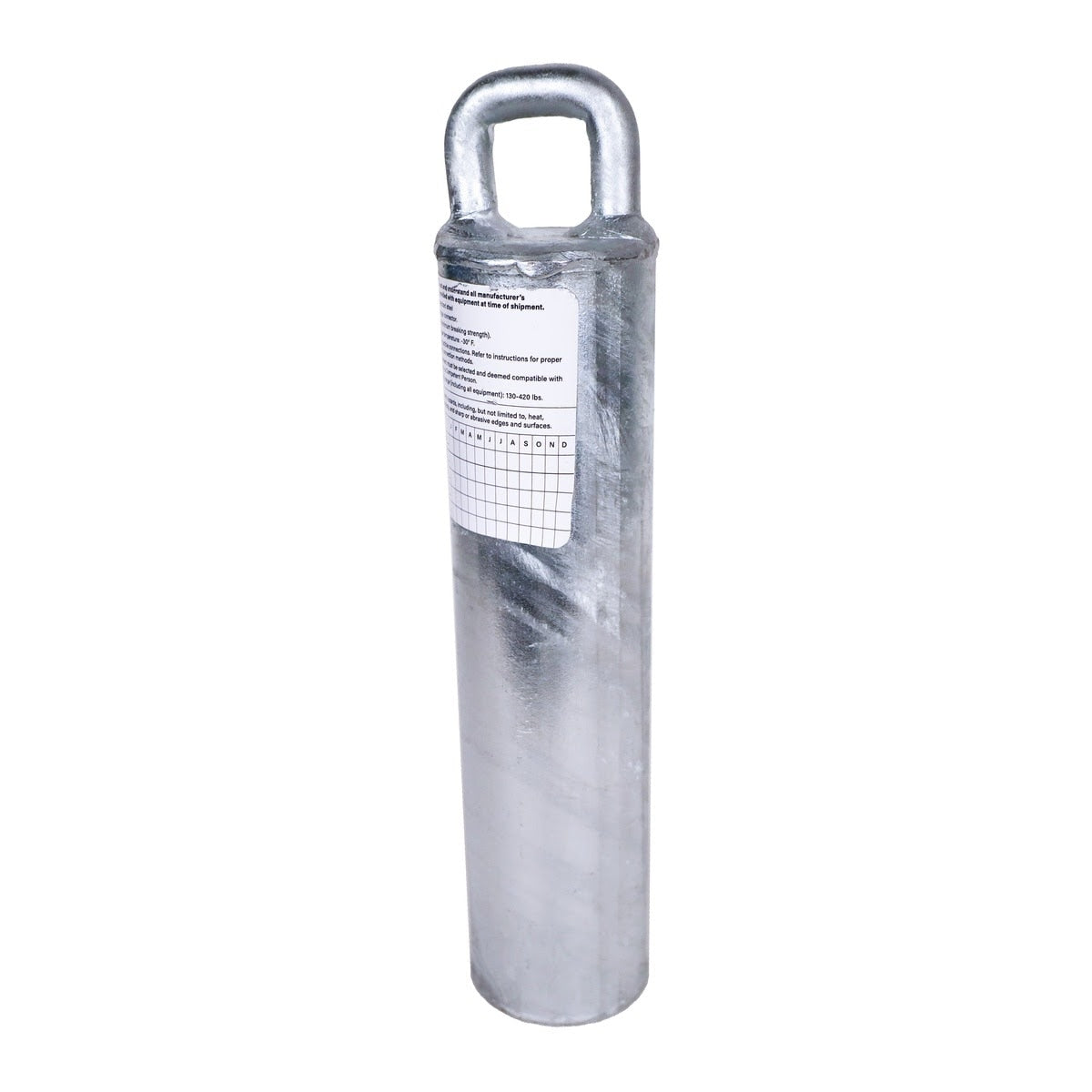

The Guardian CB-12 Weld-On Anchor Post provides a permanent, OSHA-compliant anchorage point for steel structures. Constructed from corrosion-resistant galvanized steel, this 12-inch post is designed to extend through finished surfaces while maintaining a compact profile for tight installations. It can be used as a single-user tie-off point or as part of a compatible horizontal lifeline system when installed per manufacturer specifications.
Guardian 10645 Includes
- (1) CB-12 Weld-On Anchor Post
Guardian 10645 Features

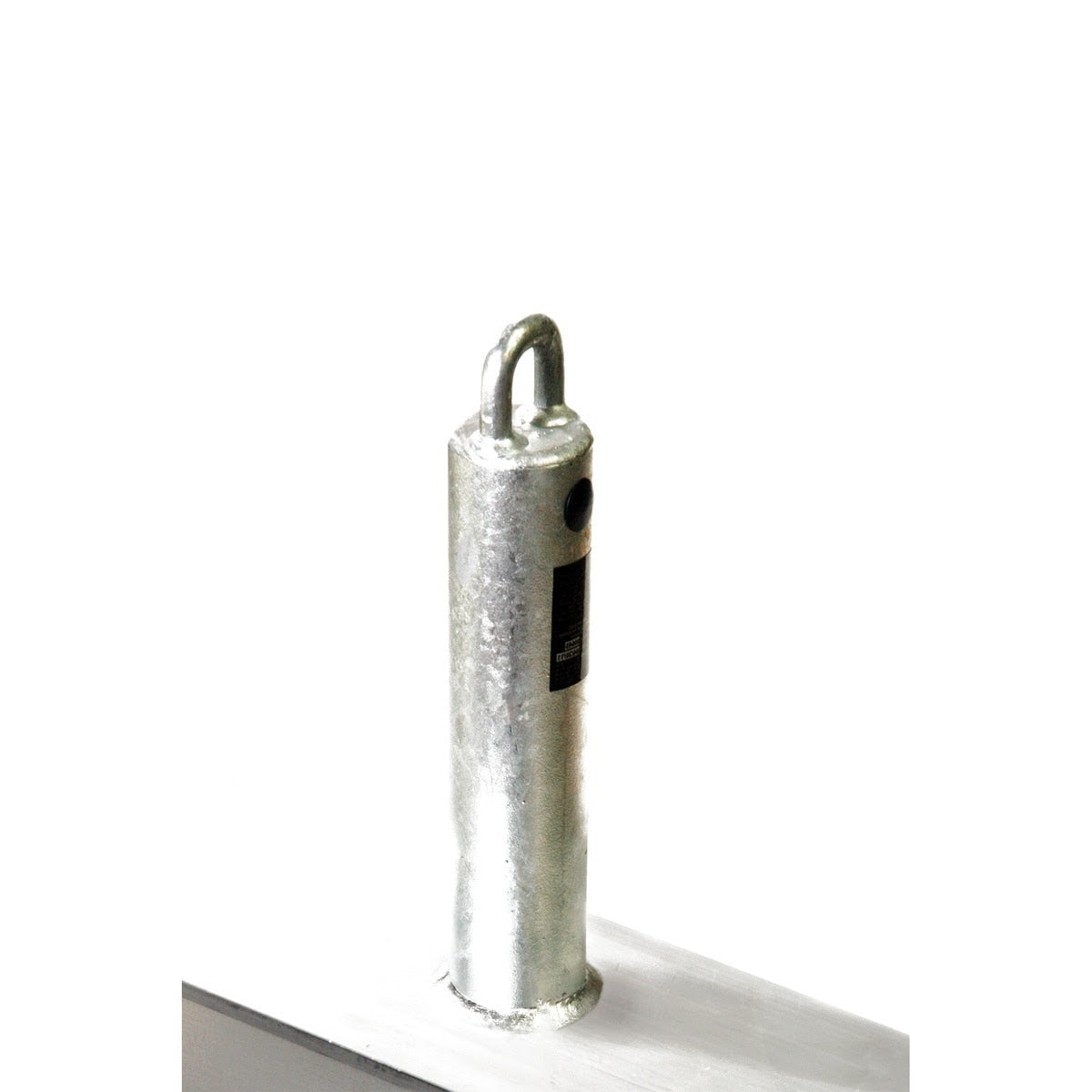

- Permanent weld-on anchor post creates a fixed tie-off point when welded to steel I-beams or structural members
- Galvanized steel construction helps resist corrosion in rooftop, bridge, and industrial environments
- 12-inch post design extends through finished surfaces while maintaining a compact profile for low-clearance installations

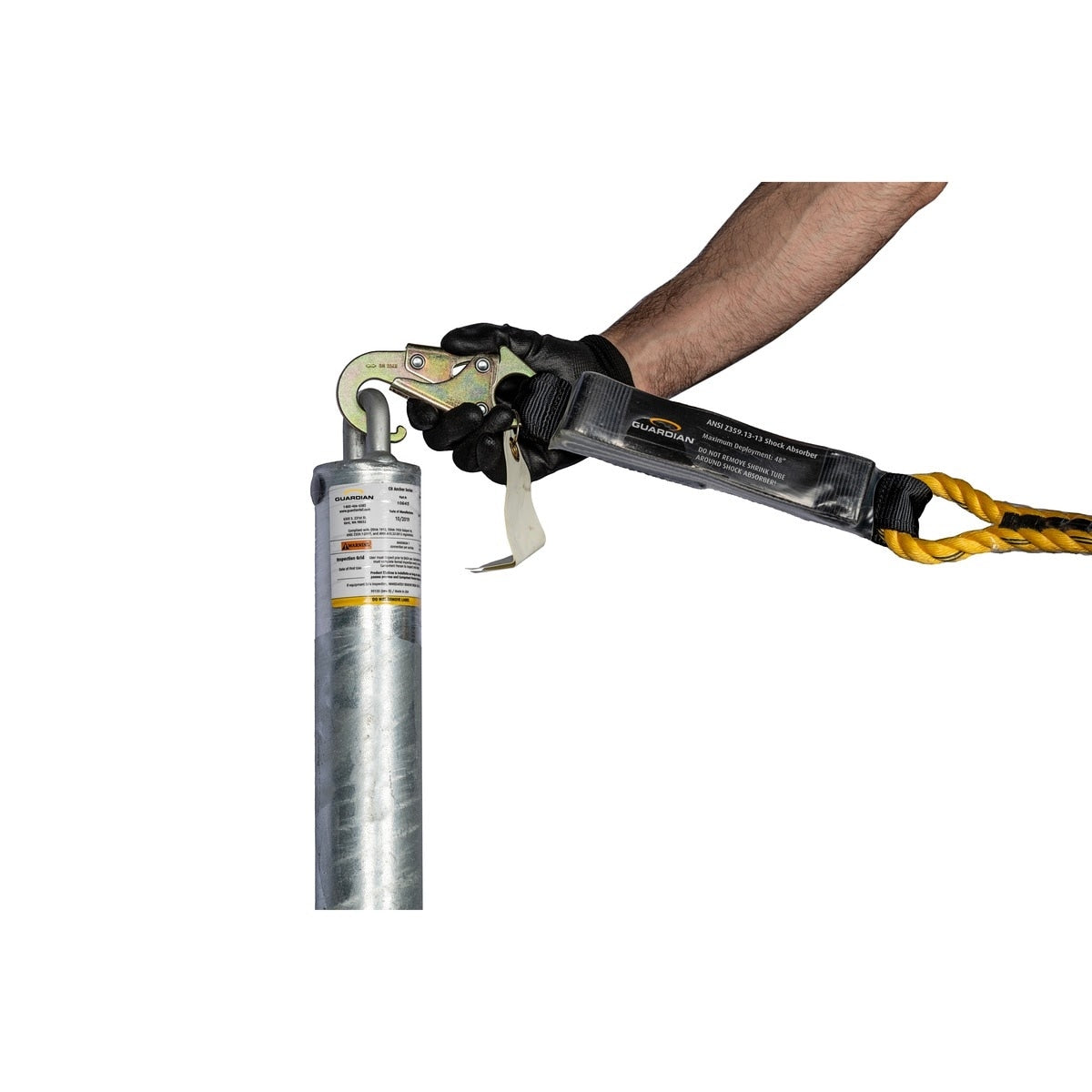

- Can be used as a single-user anchor or as part of a compatible horizontal lifeline system when properly configured
- Designed to meet applicable fall protection standards when installed according to manufacturer instructions
- Complies with OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017
- Rated tensile strength: 5,000 lbs.
- User weight capacity range: 130 to 420 lbs.
- Mounts directly to structure via weld-on installation
Guardian 10645 Specifications
| Brand | Guardian |
| Model | CB-12 |
| Substrate Type | Weld-On |
| Mounting Location | Direct to Structure |
| Material | Steel |
| Finish | Galvanized |
| Post Height | 12 in. |
| Anchor Type | Fall Arrest |
| Anchorage Connector Type | Roofing |
| Tensile Strength | 5,000 lbs. |
| User Weight Capacity | 130-420 lbs. |
| Metal Thickness | 1/2 in. | 5/16 in. |
| Standards Compliance | OSHA 1910.140; OSHA 1926.502; ANSI Z359.18-2017 |
| Country of Origin | United States |
| Each Shipping Weight | 10 lb |
Toolup Part # :
17331
