At a Glance
Bolt Diameter
12 Inch
Beam Width Range
359.18 in-2017 in
Material
Galvanized Steel
Sold As
Individual
For Use With
Welder
Mount Type
Magnetic
Color
Silver
Safety Rating
OSHA 1926.502, OSHA 1910.140, ANSI Z359.18
Description
Description
Guardian 10655 Description

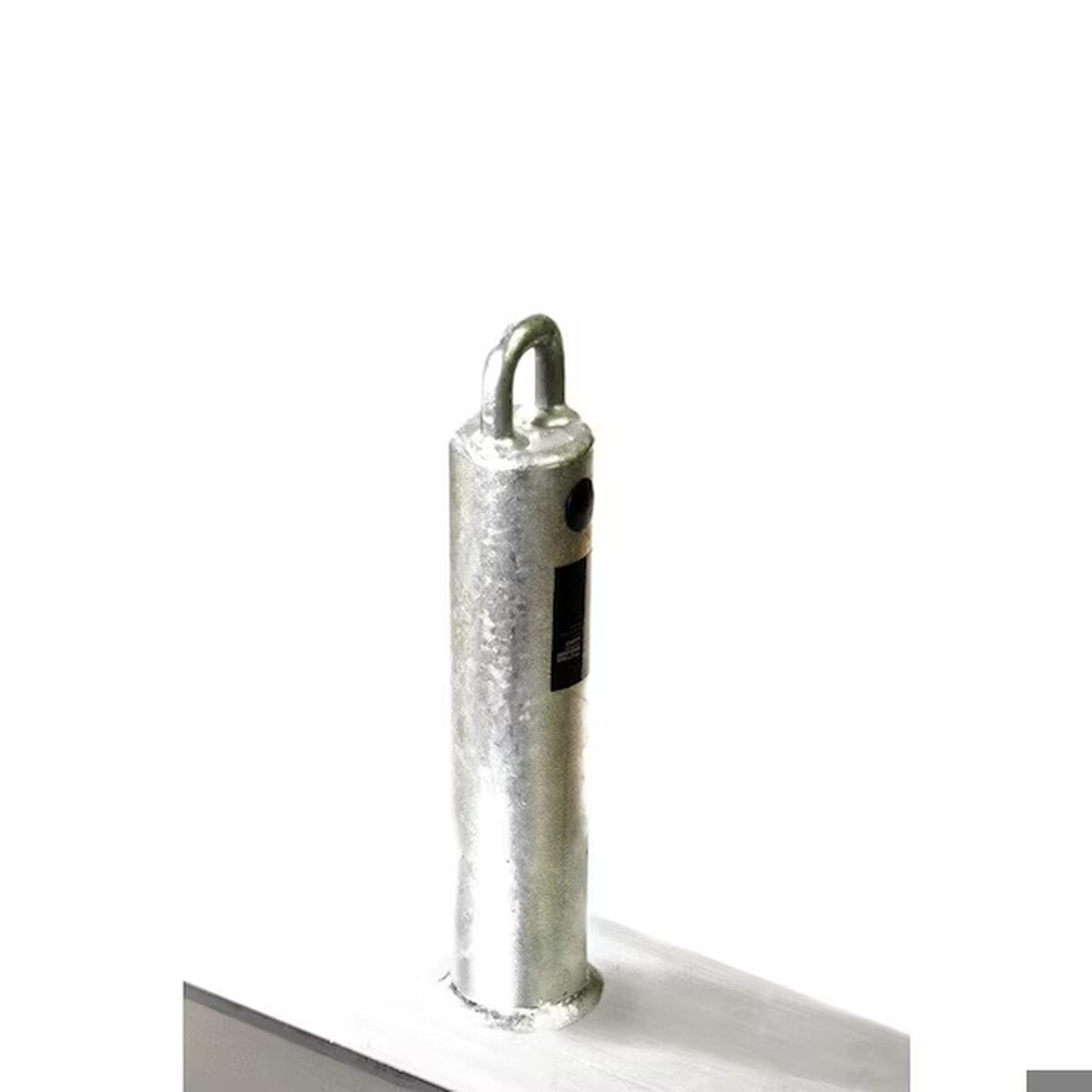

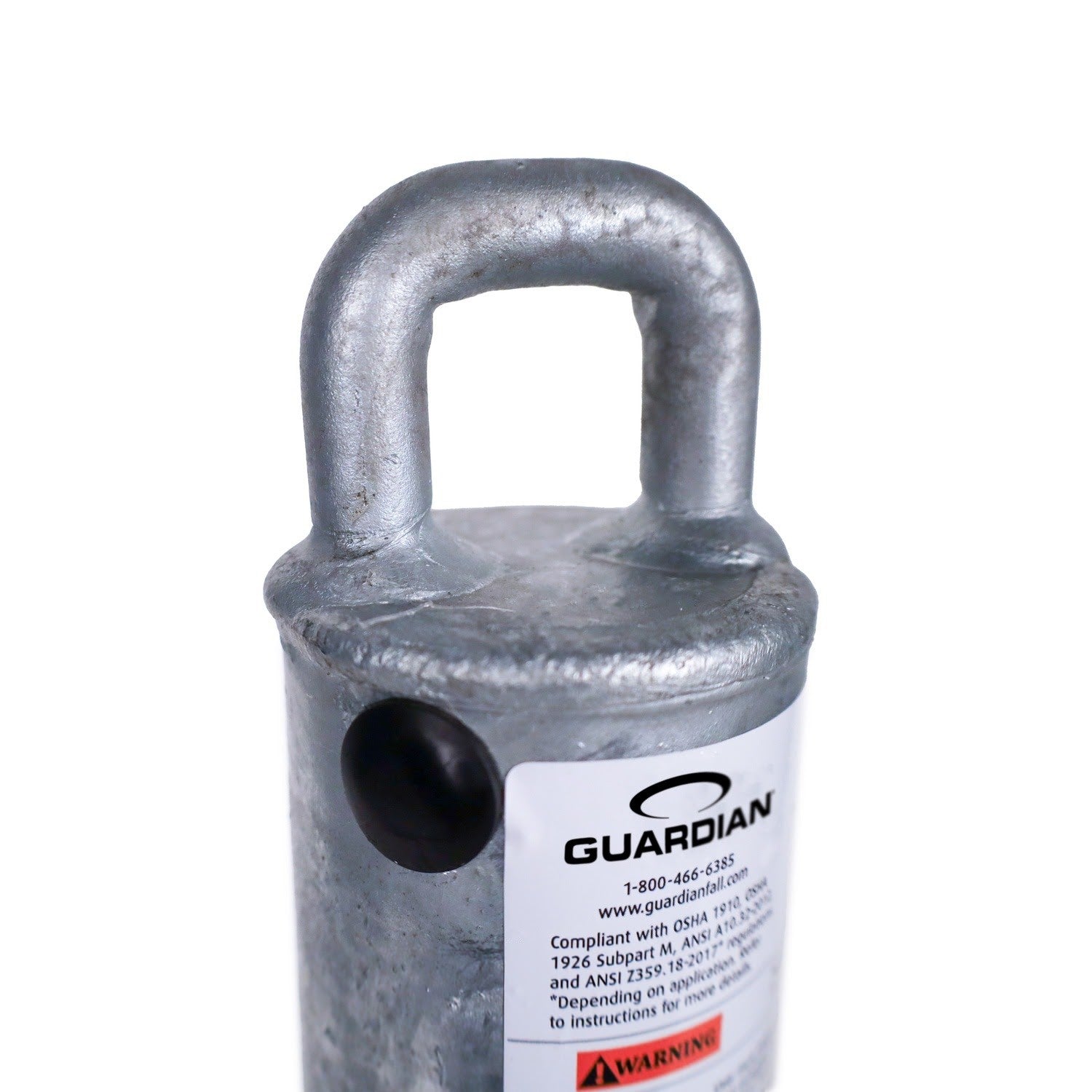

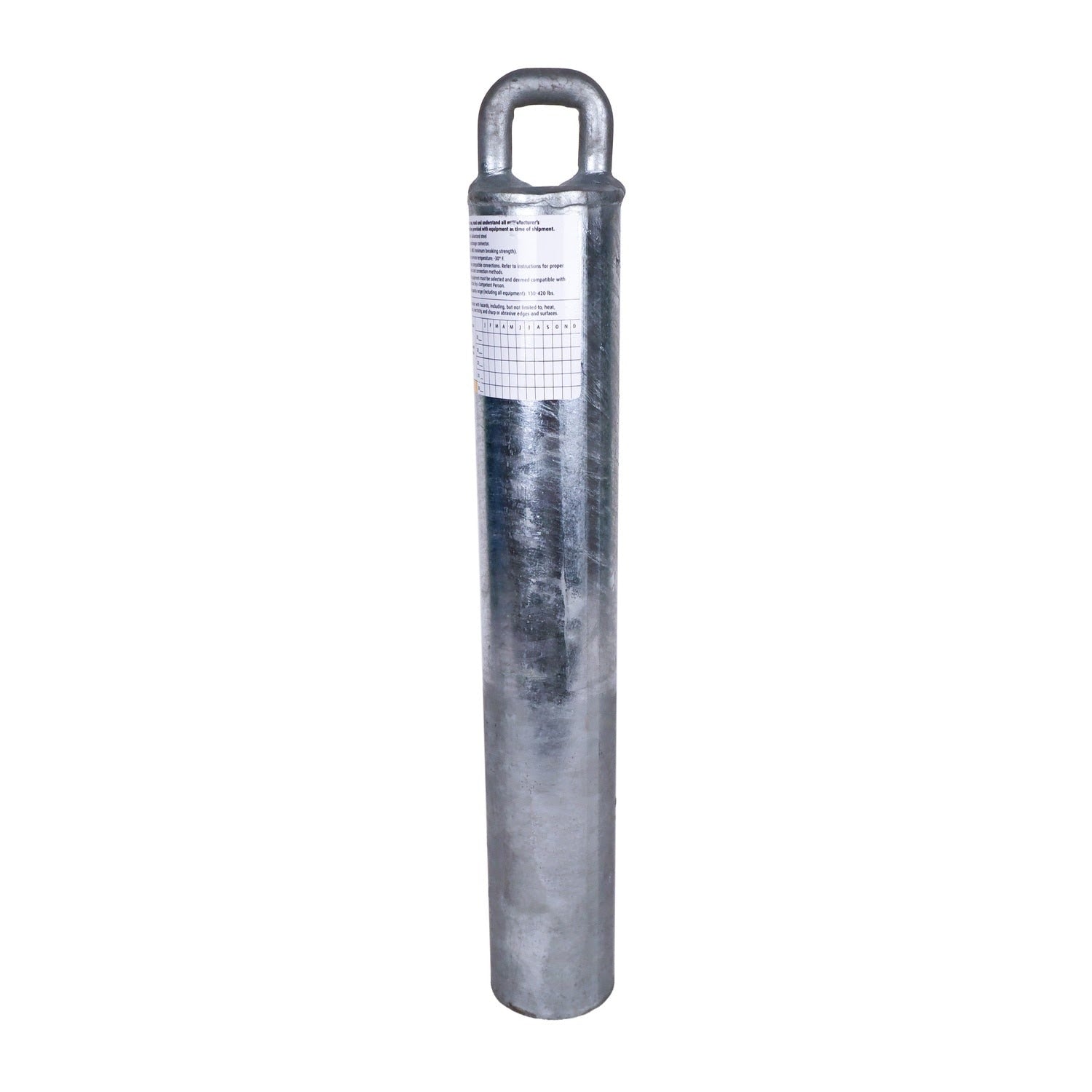

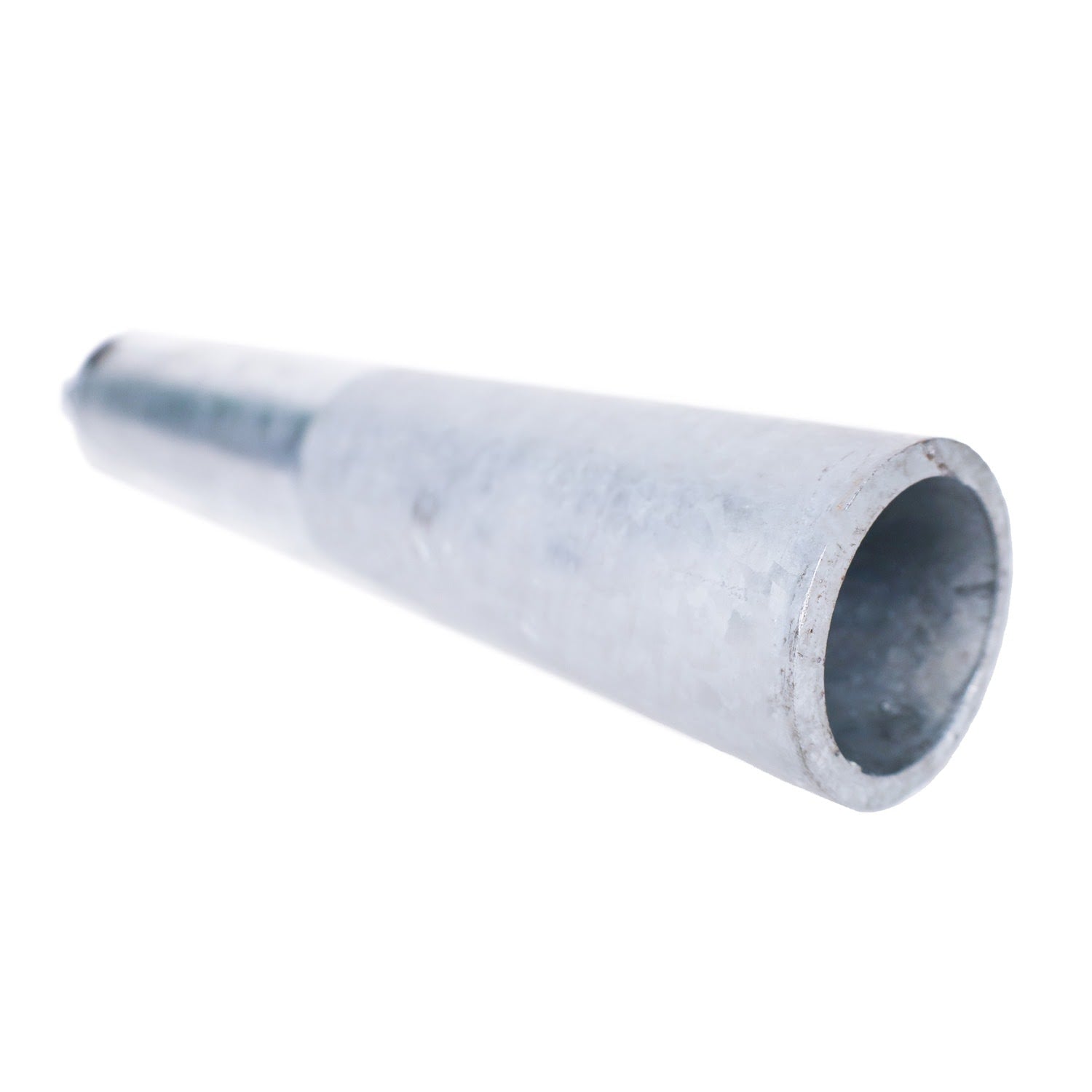

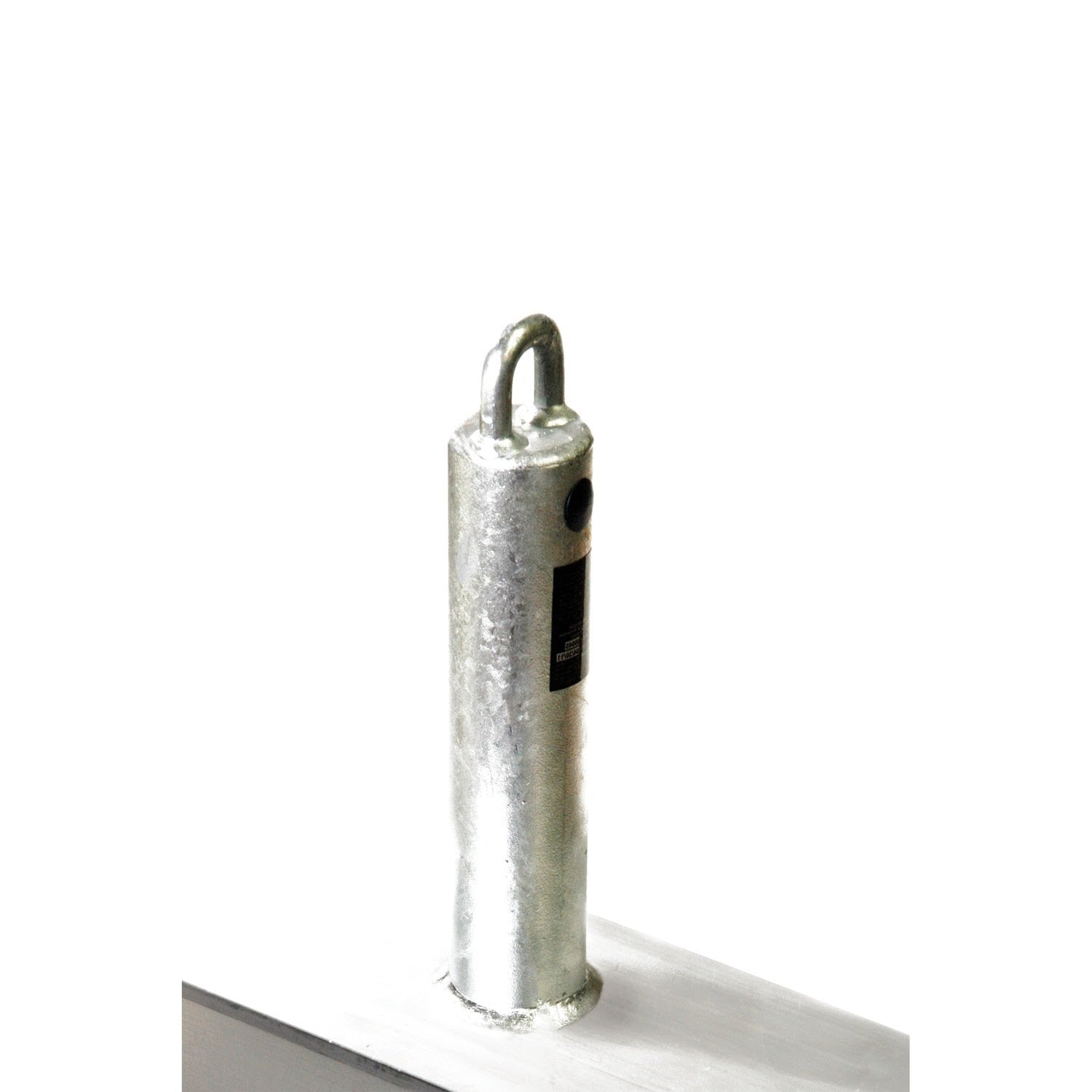

The Guardian CB-18 Weld-On Anchor Post is a permanent steel anchorage connector designed to weld directly to structural steel for reliable fall arrest tie-off. Its galvanized construction helps resist corrosion, and the 18 inch post extends above finished surfaces for easier connection to compatible fall protection equipment.
Guardian 10655 Includes
- (1) Weld-On Anchor Post
Guardian 10655 Features
- Permanent weld-on design creates a fixed anchorage point on steel structures
- Galvanized steel construction helps resist corrosion in demanding environments
- 18 inch post extends above finished surfaces for easier connection

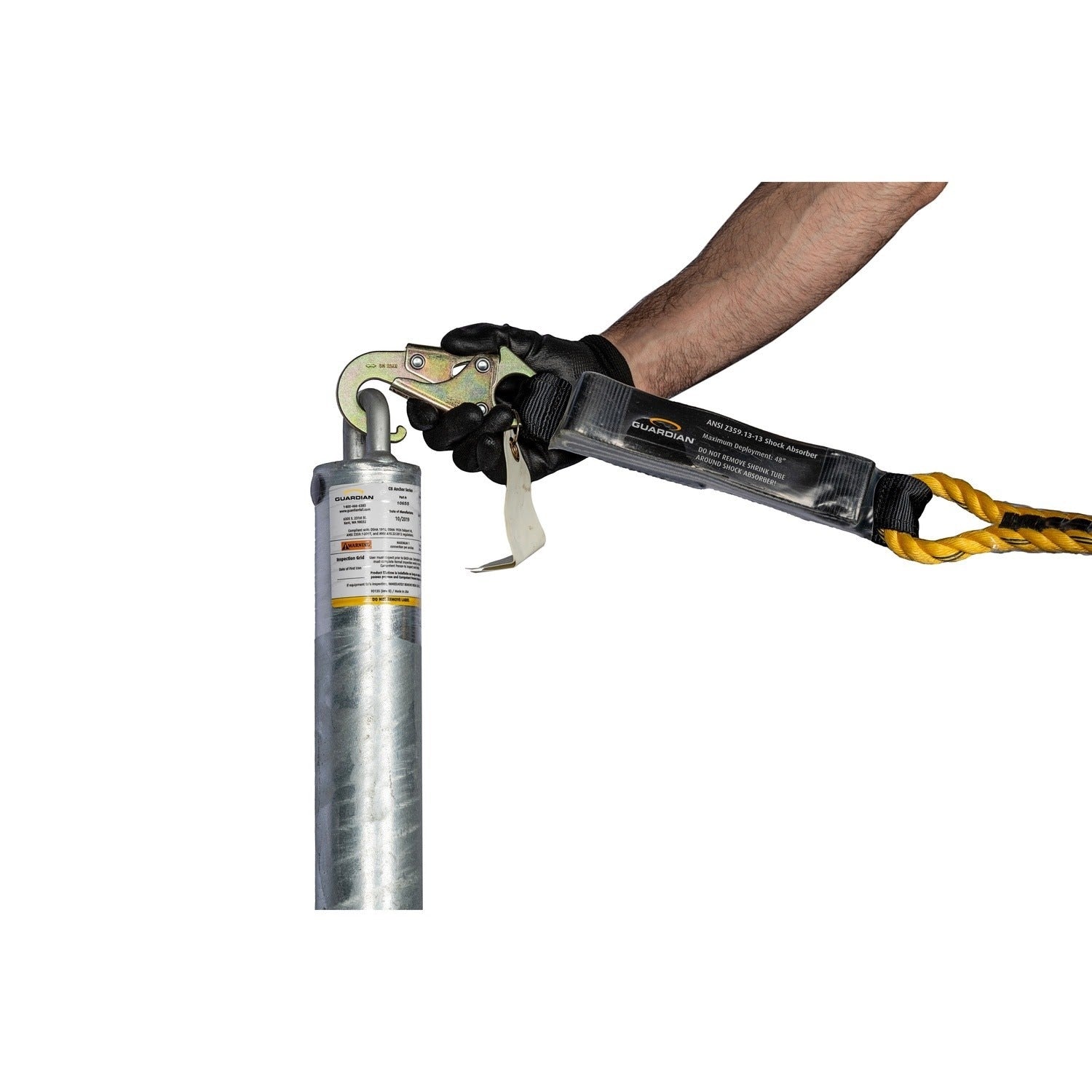

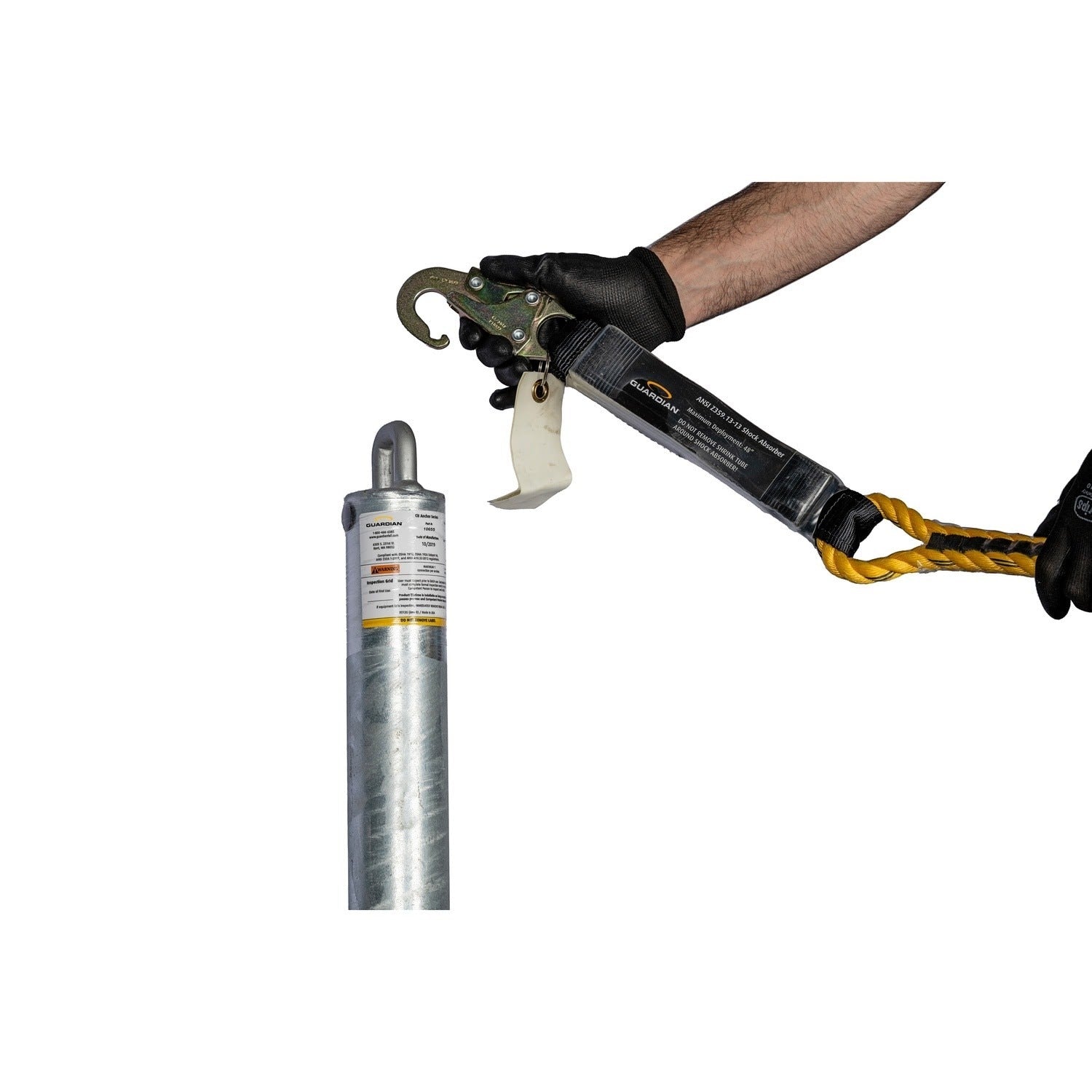

- Suitable for single-user tie-off and compatible horizontal lifeline applications
- Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017 when installed and used as directed
Guardian 10655 Specifications
| Material | Steel |
| Finish | Galvanized |
| Post Height | 18 in. |
| Overall Length | 20 in. |
| Diameter | 3 in. |
| Product Weight | 12 lb |
| Anchor Type | Fall Arrest |
| Substrate Type | Weld-On |
| Mounting Location | Direct to Structure |
| Metal Thickness | 5/16 in. |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs. |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Country of Origin | United States |
Toolup Part # :
17927
