Guardian 10717 Description

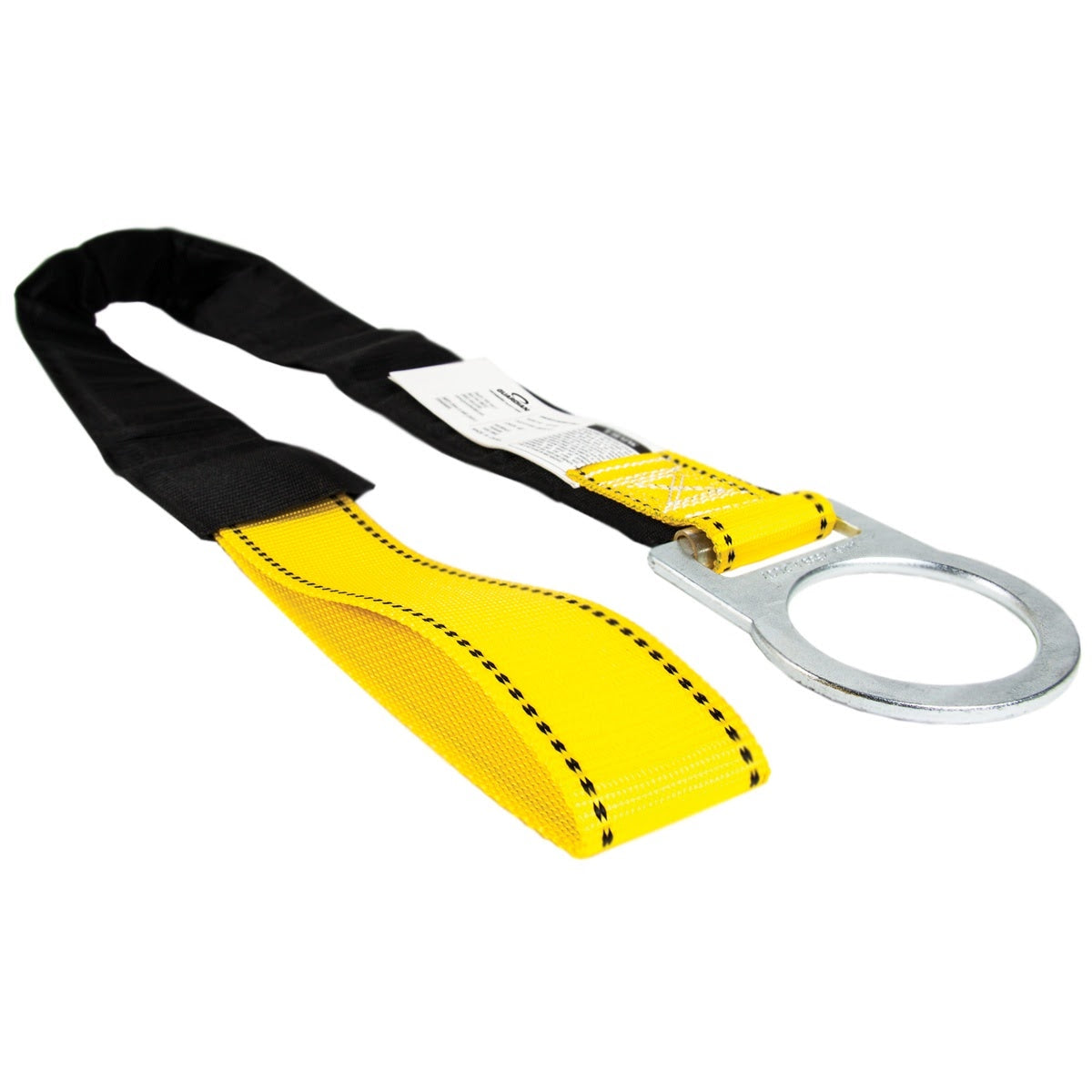

This 6 ft concrete anchor strap is designed for cast-in-place installation during construction. Secure it to rebar or another structural member before the concrete pour, then once the concrete sets you have a fixed anchor point. The protective sheathing helps guard the webbing against abrasion for dependable use on the jobsite.
Guardian 10717 Includes
- (1) Concrete Anchor Strap with Protective Sheathing (10717)
Guardian 10717 Features
- Sheathed web anchor designed for cast-in-place concrete installation
- Protective sheath guards against abrasion
- Quick and simple to install during the construction process

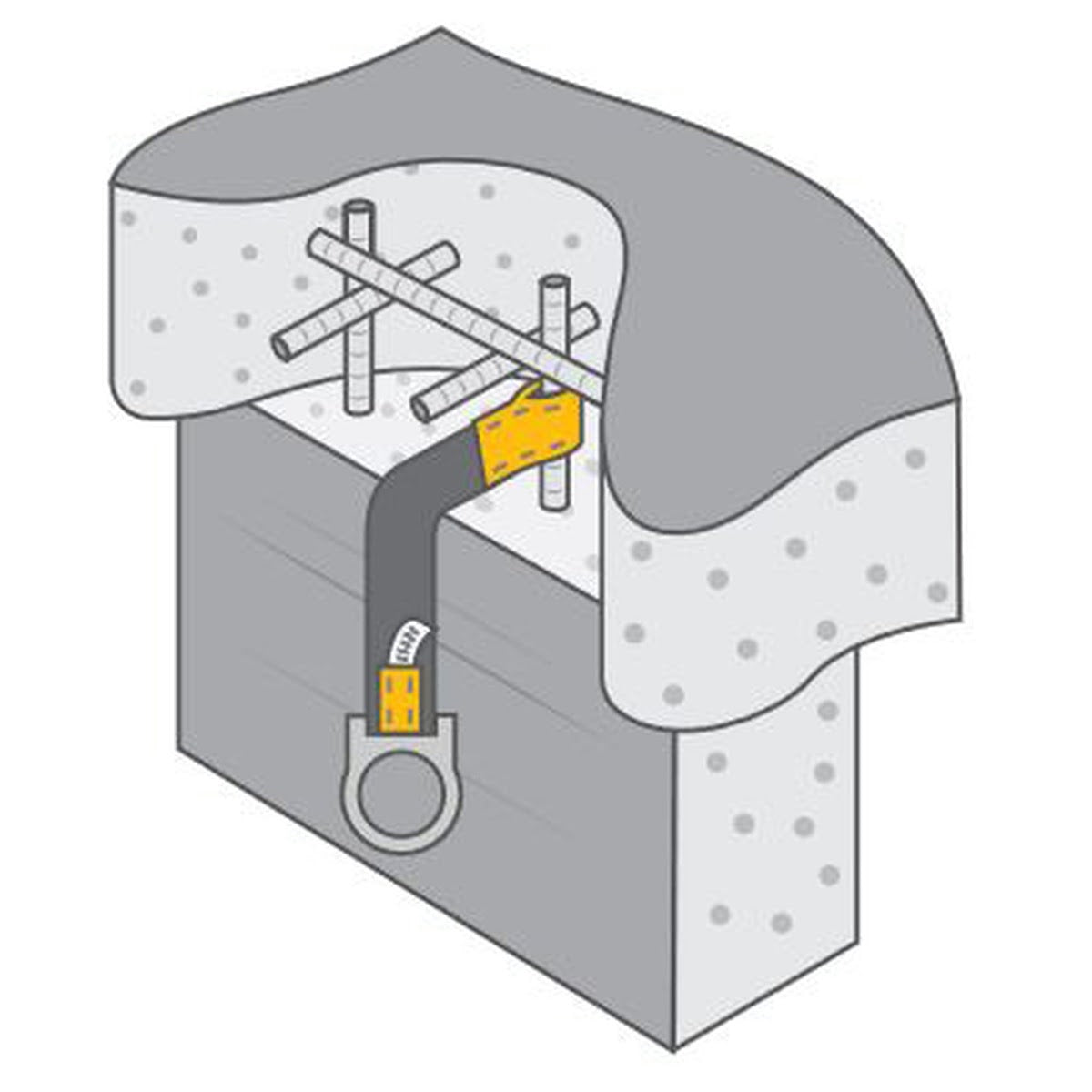

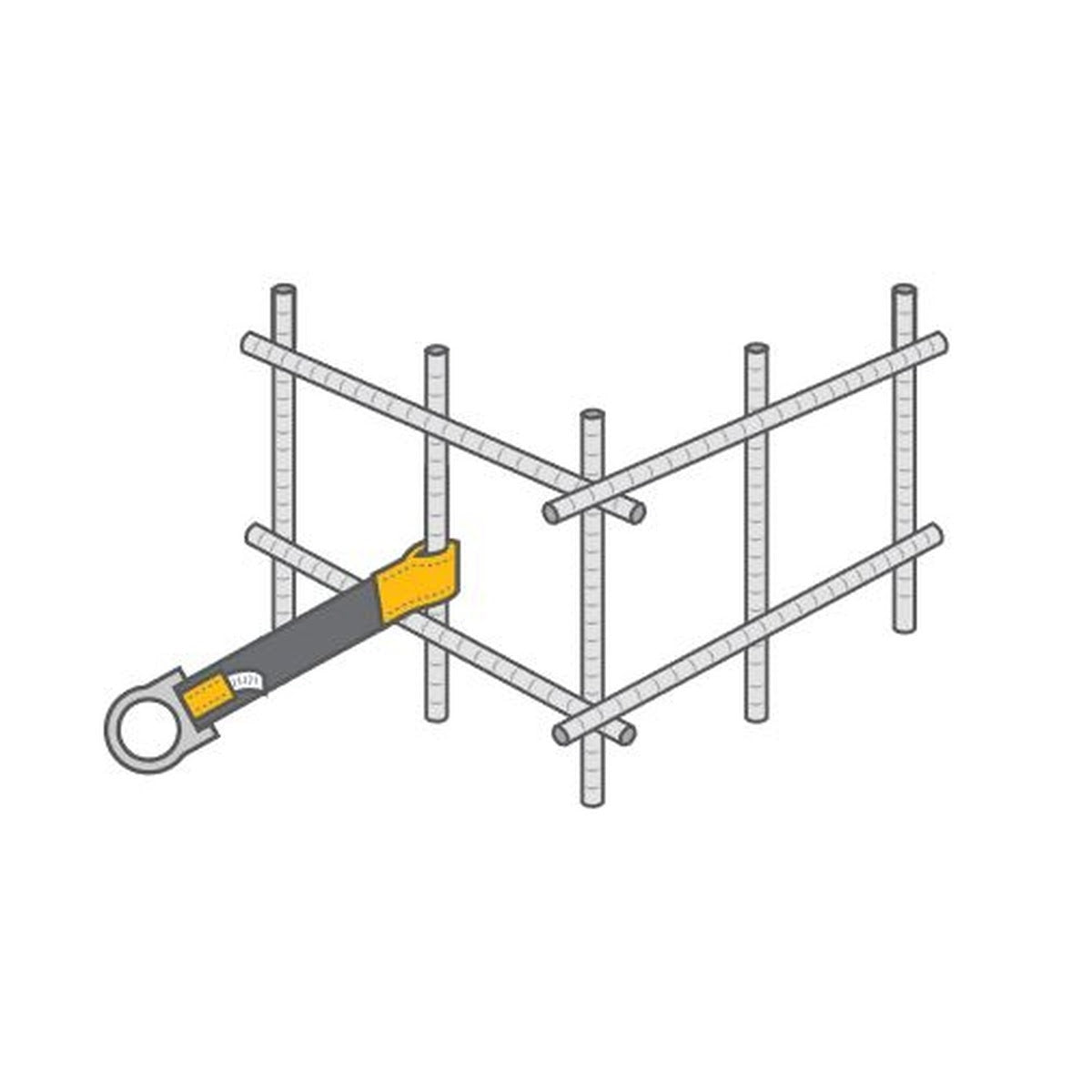

- Secure to rebar or other underlying structural member before pouring concrete
- Creates a fixed anchor point once concrete has set
- Loop and large D-ring ends for easy connection
- Compatible with horizontal lifelines
- Available in various lengths (model dependent)
- Meets OSHA 1910.140 and OSHA 1926.502 requirements
- Meets ANSI Z359.18 requirements
Guardian 10717 Specifications
| Brand | Guardian |
| Part Number | 10717 |
| Product Type | Concrete Anchor Strap |
| Anchorage Connector Type | Straps & Cheaters |
| Length | 6 ft |
| Material | Polyester |
| Anchor Ends | Loop & Large D-Ring |
| Tensile Strength | 5,000 Lbs. |
| Weight Capacity | 130-420 lbs. |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18 |
| Country of Origin | China |
| Product Length (in) | 10 |
| Product Width (in) | 2 |
| Product Height (in) | 3 |
| Product Weight (lb) | 1.07 |
