Guardian 10720 Description

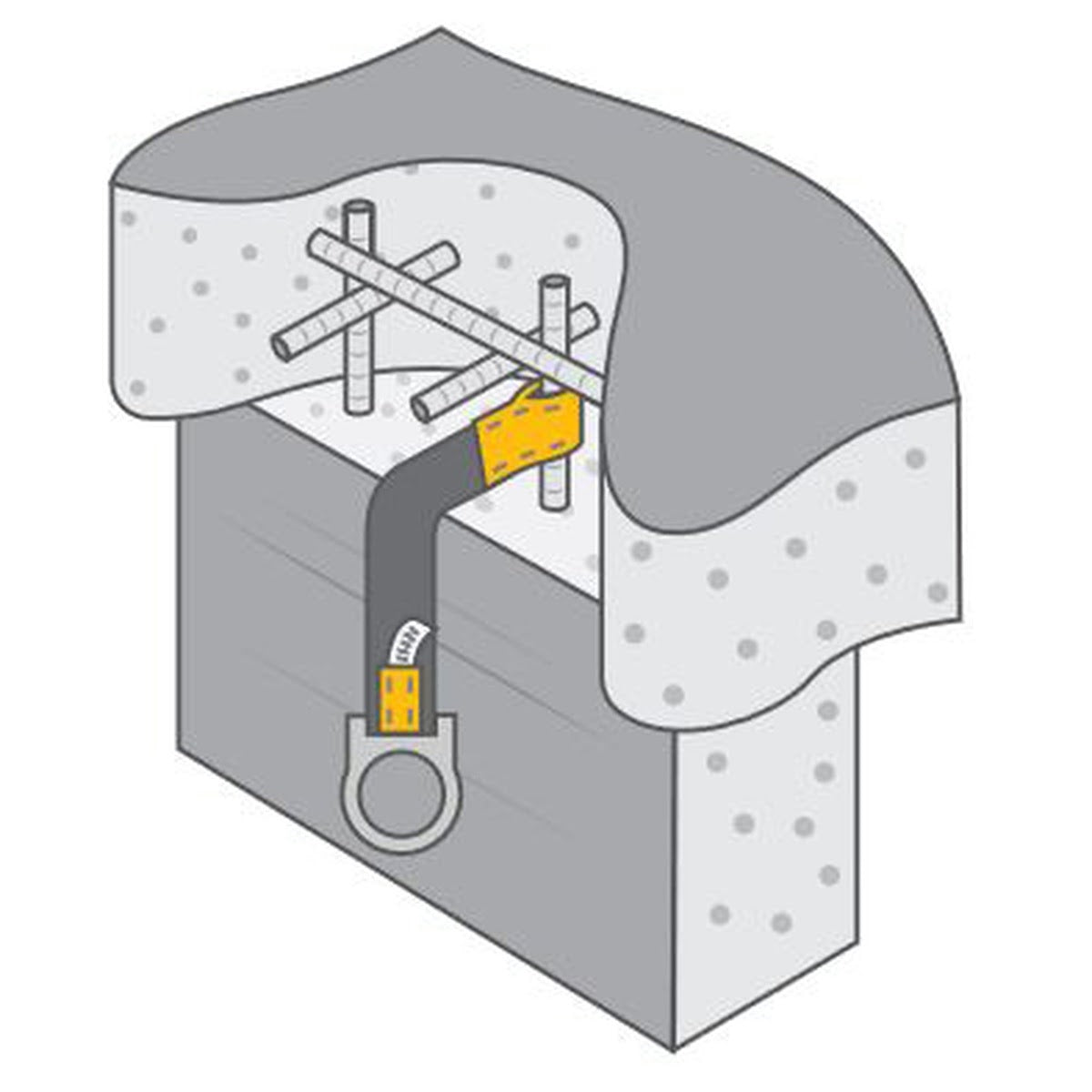

This Guardian Concrete Anchor Strap is a sheathed web anchor designed to be installed during cast-in-place concrete construction. Secure it to rebar or another underlying structural member, pour and set the concrete to create a fixed anchor point, then cut away when no longer needed. The protective sheath helps guard against abrasion, and the pass-through loop ends allow quick, simple installation and compatibility with horizontal lifelines.
Guardian 10720 Includes
- (1) Concrete Anchor Strap
Guardian 10720 Features
- Designed for cast-in-place concrete installation during construction

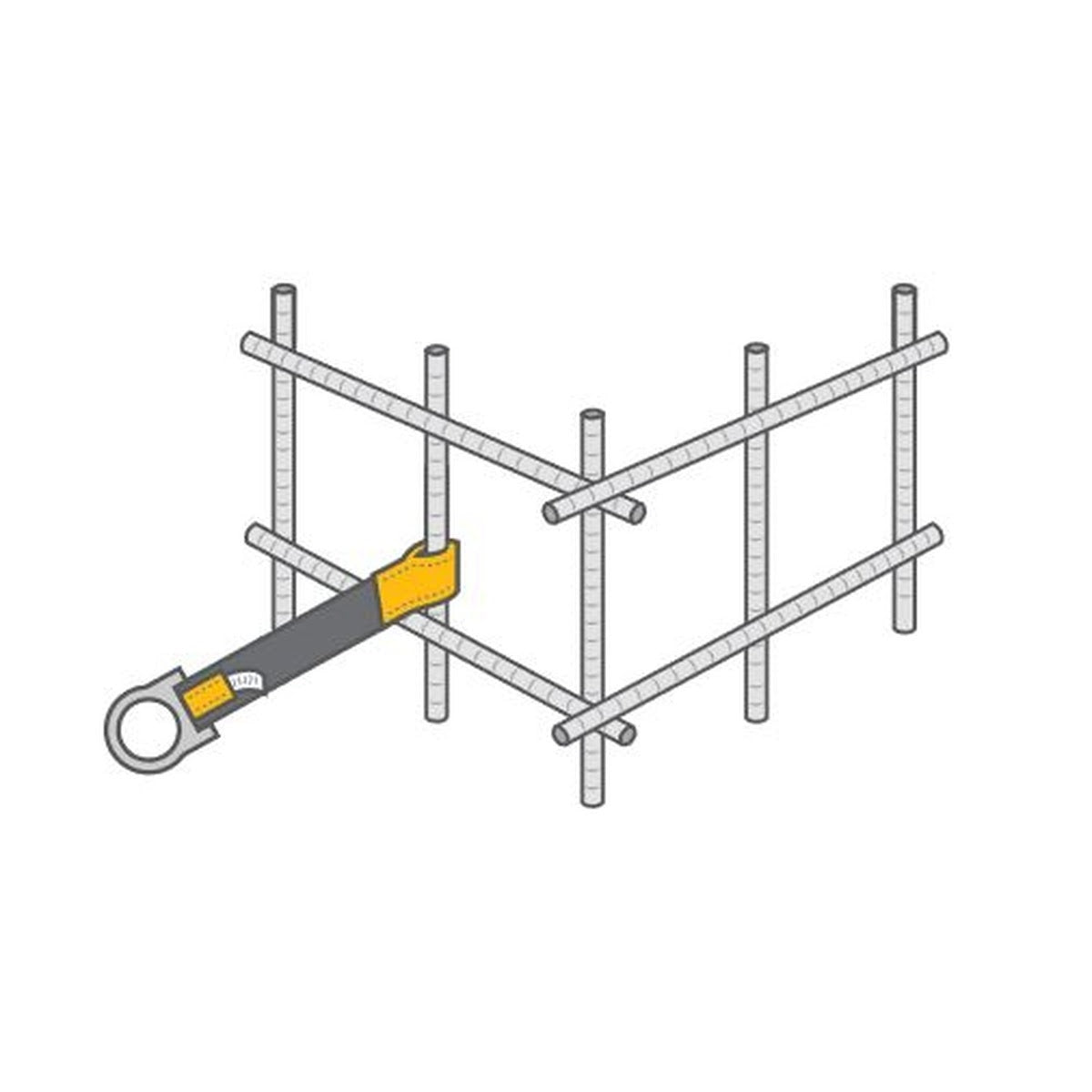

- Secures to rebar or an underlying structural member before concrete is poured
- Leaves a fixed anchor point after concrete sets
- Protective sheath helps guard against abrasion
- Pass-through loop ends for versatile rigging and installation
- Compatible with horizontal lifelines
- Quick and simple to install
- Can be used as a cinch-style anchor by pulling the D-ring through the web loop and cinching to the structure
- Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18 requirements
- 5,000 lb tensile strength
Guardian 10720 Specifications
| Product Type | Concrete Anchor Strap |
| Length | 4 ft |
| Material | Polyester |
| Anchor Ends | Pass-Through Loops |
| Tensile Strength | 5,000 lbs |
| User Weight Capacity | 130-420 lbs |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18 |
| Country of Origin | US |
| Each Shipping Weight | 0.3 lb |
| Anchorage Connector Type | Straps & Cheaters |
