Guardian 15030 Description

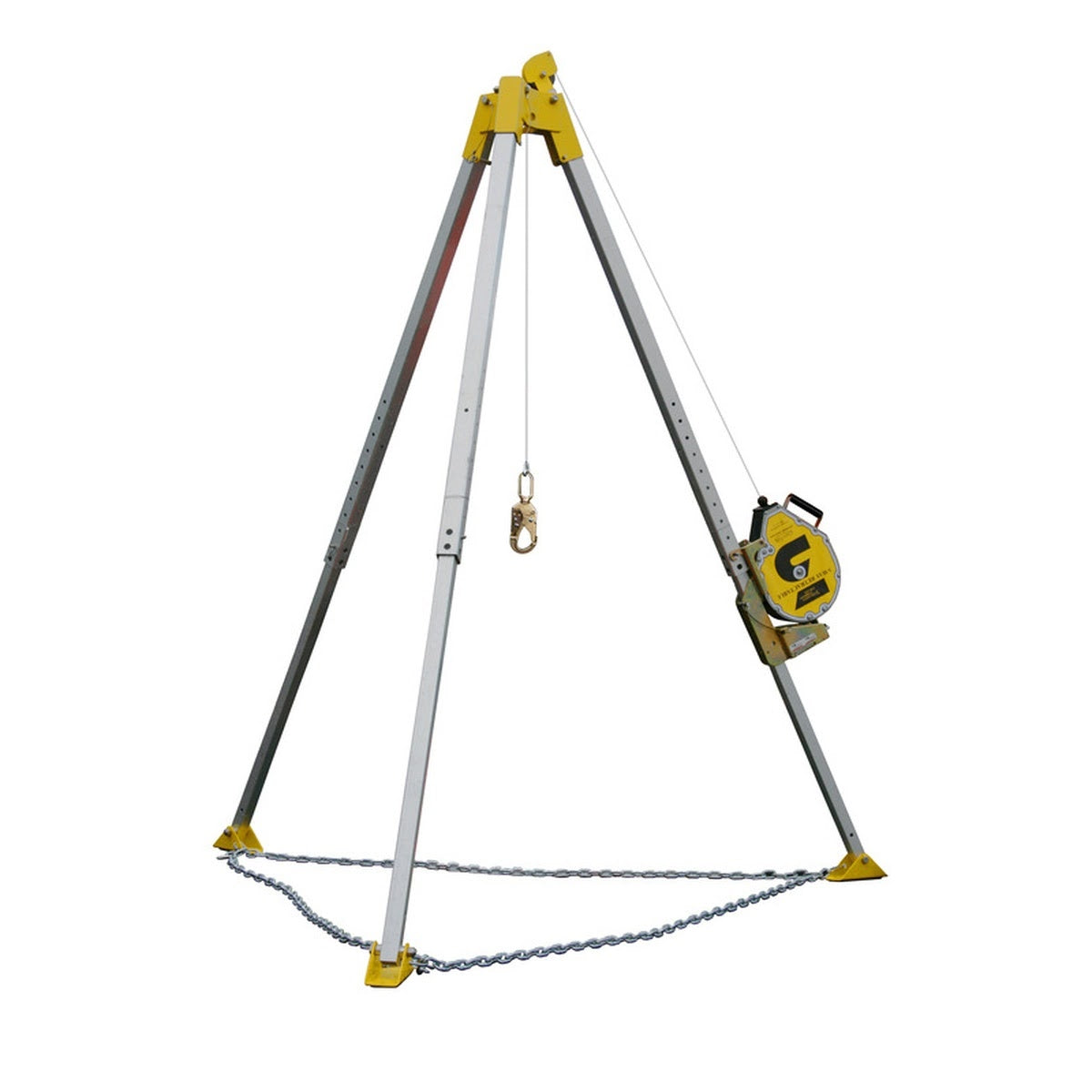

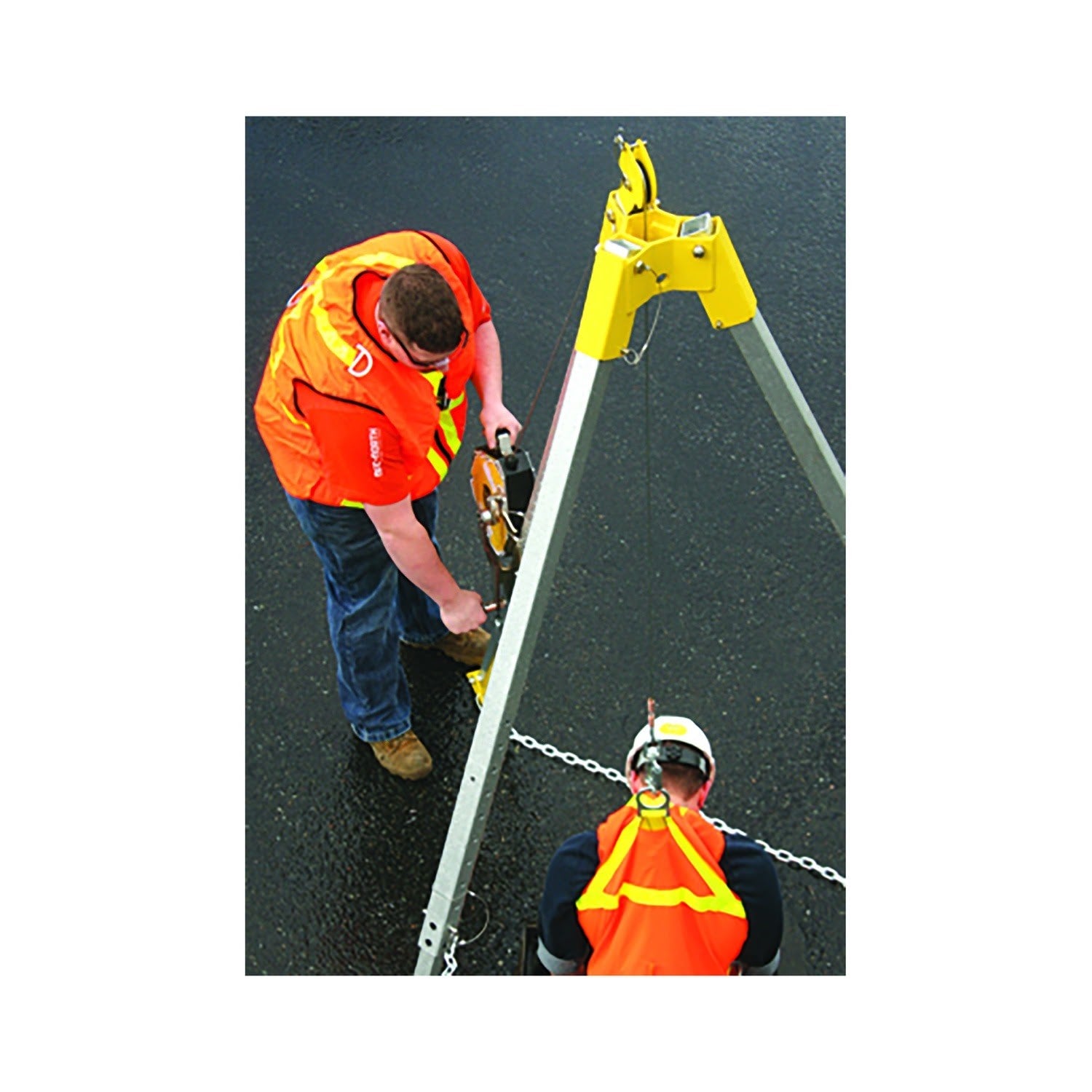

The Guardian Arc-O-Pod is a lightweight, portable tripod rescue and retrieval system kit designed for confined space applications. It features a 90 in. maximum height tripod with adjustable locking legs, an integrated pulley, a quick-mount bracket compatible with the Guardian 3-Way SRL, and a carrying bag for convenient transport between jobsites.
Guardian 15030 Includes
- (1) Arc-O-Pod Tripod Rescue and Retrieval System
- (1) 10983 Quick-Mount Bracket
- (1) Pulley
- (1) Carrying Bag
Guardian 15030 Features
- 90 in. maximum height tripod for rescue and retrieval applications
- Lightweight, portable design for easy transport between jobsites
- Adjustable locking legs size in 2 in. increments
- Fits openings up to 5-1/2 ft in diameter
- High-strength topper incorporates a pulley system for mechanical lifeline equipment
- Drop forged steel eyebolts provide an anchorage point for a secondary or backup system
- Quick-mount bracket is compatible with the Guardian 3-Way SRL
- Designed to help prevent slippage or movement during use
- Complies with OSHA 1910.140 and OSHA 1926.502
Guardian 15030 Specifications
| Product Type | Tripod Rescue and Retrieval System Kit |
| Maximum Height | 90 in. |
| Height Adjustment Increment | 2 in. |
| Maximum Opening Diameter | 5-1/2 ft. |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs. |
| Construction | Aluminum tripod with steel components |
| Compatible With | Guardian 3-Way SRL |
| Compliance | OSHA 1910.140; OSHA 1926.502 |
| Country of Origin | China |
| Package Length | 65.5 in. |
| Package Width | 15 in. |
| Package Height | 19.2 in. |
