Guardian 15050 Description

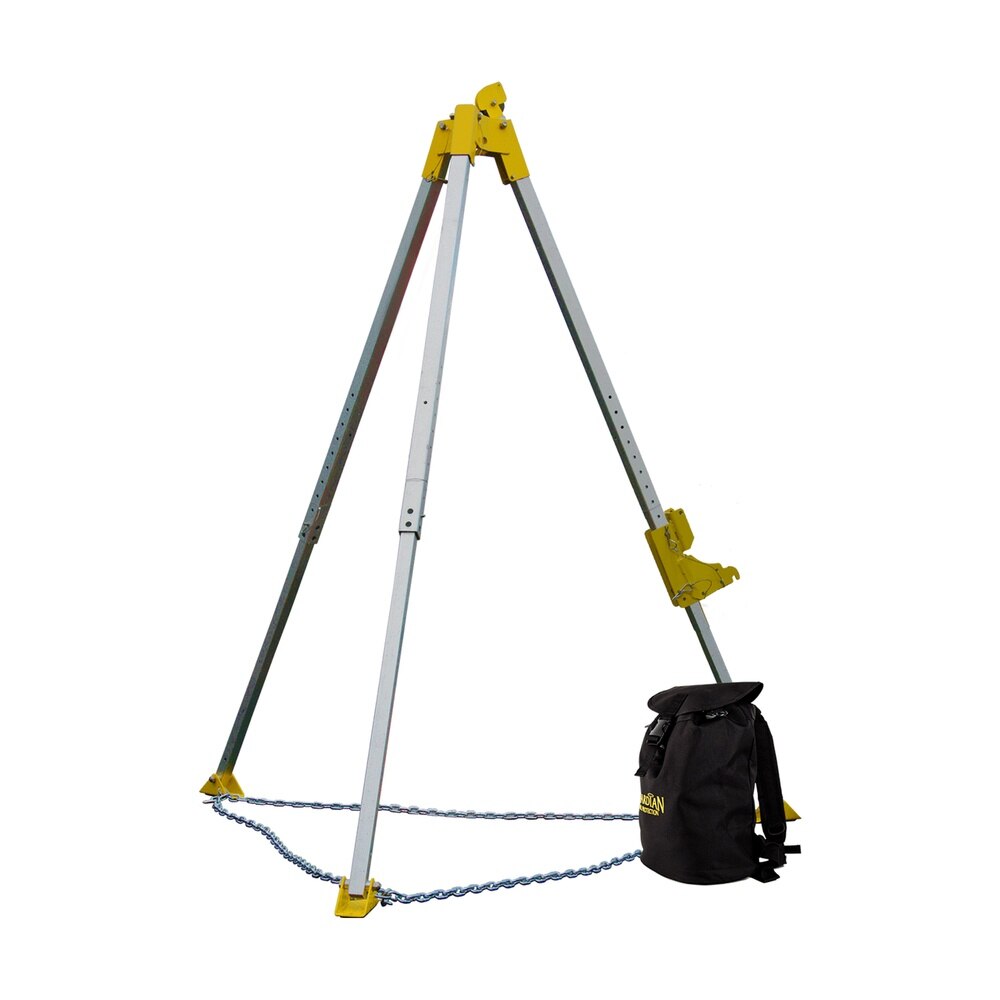

The Guardian Arc-O-Pod is an affordable rescue and retrieval tripod system designed for confined space entry. It features a lightweight, portable 90-inch tripod with adjustable locking legs, an integrated pulley topper, and a storage bag for easier transport between jobsites. The system is designed to help reduce slippage or movement during use and includes a quick-mount bracket compatible with the Guardian 3-Way SRL.
Guardian 15050 Includes
- (1) Arc-O-Pod System Kit (15050)
- (1) 90 in. Tripod
- (1) 65 ft Rescue Winch
- (1) Storage Bag
- (1) Quick-Mount Bracket (compatible with Guardian 3-Way SRL)
Guardian 15050 Features
- High quality rescue and retrieval tripod system for confined space applications
- 90-inch maximum tripod height
- Lightweight and highly portable design
- Includes 65 ft rescue winch for retrieval operations
- Includes storage bag for transportation between jobsites
- Adjustable locking legs with 2 in. incremental adjustments and locking push pins
- Fits up to a 5-1/2 ft diameter opening
- Designed to help eliminate slippage or movement during use
- High-strength topper with integrated pulley system to support mechanical lifeline equipment
- Drop forged steel eyebolts provide anchorage points for secondary or back-up systems
- Includes quick-mount bracket compatible with the Guardian 3-Way SRL
- Meets OSHA 1926.502, OSHA 1910.140, and ANSI Z359.1 requirements
Guardian 15050 Specifications
| Brand | Guardian |
| Part Number | 15050 |
| Category | Confined Space and Rescue |
| Tripod Max Height | 90 in |
| Rescue Winch Length | 65 ft |
| Material | Steel |
| Tensile Strength | 5,000 lbs |
| Weight Capacity | 130-420 lbs |
| Standards Compliance | OSHA 1926.502; OSHA 1910.140; ANSI Z359.1 |
| Country of Origin | CN |
| Product Length | 72 in |
| Product Width | 40 in |
| Product Height | 18 in |
| Shipping Weight | 135 lb |
| HTS Code | 7616.99.5190 |
