At a Glance
Description
Description
Guardian 15070 Description
The Guardian Absorbinator Horizontal Lifeline (HLL) Attachment System is a permanent cable HLL system designed for column or ceiling mounting. The term "Absorbinator" refers to the in-line shock absorbing component of this cable HLL system, which helps redirect forces away from the line and the user. Absorbinator Systems are highly modular and can be configured to mount on both horizontal and vertical surfaces, and are compatible with a large range of anchorage connectors. This HLL system can support up to two workers in fall arrest applications and is ideal for providing fall protection coverage over a large work area. Wire cable (part 01400) is sold separately and cut to order for specific span length requirements up to 60 ft.

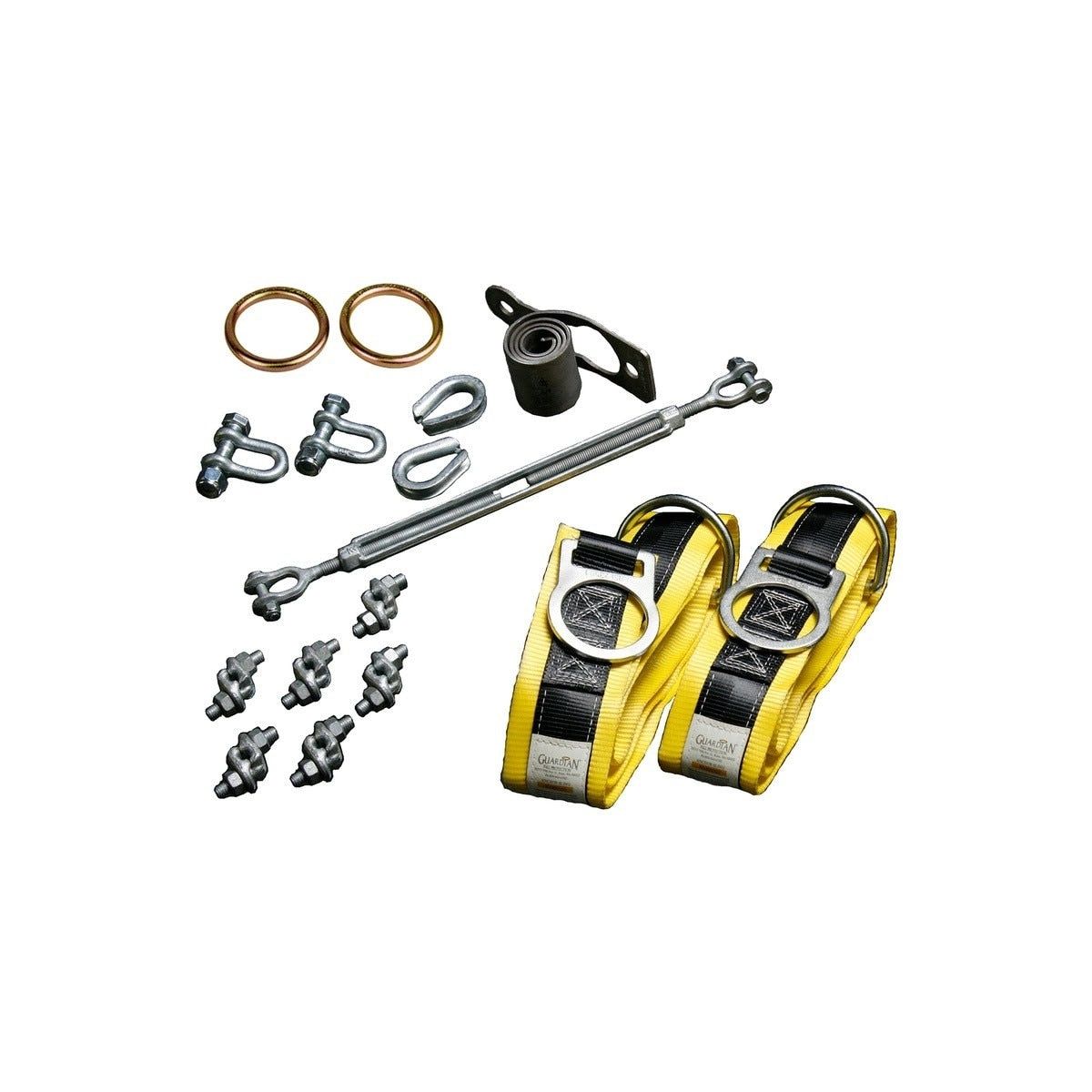

Guardian 15070 Includes
- (1) Absorbinator HLL Attachment System for Column or Ceiling Mount
- (2) Premium Cross Arm Straps (Anchorage Connectors)
Guardian 15070 Features
- Permanent cable horizontal lifeline attachment system for column or ceiling mounting
- In-line Absorbinator shock absorber helps redirect forces away from the lifeline and user
- Highly modular system compatible with a wide range of anchorage connectors
- Supports up to two workers in fall arrest applications
- Designed for applications up to 60 ft span length
- Manufactured from durable components intended for long lasting permanent installation
- Wire cable (part 01400) sold separately and cut to order for specific span length requirements
- Compatible with Guardian HLL-compatible anchor points
- Pre-configured system options available to help eliminate component selection guesswork
- Meets OSHA 1910.140 and OSHA 1926.502 compliance requirements
Guardian 15070 Specifications
| Product Type | Components |
| Mounting Style | Column or ceiling mount |
| Maximum Span | Up to 60 ft |
| Worker Capacity | Up to 2 workers |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs. |
| Material | Stainless steel, powder-coated steel, aluminum, and polyester |
| Lifeline Material | Galvanized steel |
| Anchor Style | Premium Cross Arm Straps |
| Anchorage Connectors Included | Yes |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502 |
| Country of Origin | CN |
| Shipping Weight | 8.3 lb |
