Guardian 15071 Description
The Guardian Absorbinator Horizontal Lifeline Attachment System is a permanent cable HLL system designed for column or ceiling mounting. The in-line Absorbinator shock absorbing component helps redirect forces away from the lifeline and, in turn, the user. Absorbinator Systems are highly modular and can be configured to mount on both horizontal and vertical surfaces, and are compatible with a wide range of anchorage connectors. This system supports up to two workers in fall arrest applications and is ideal for fall protection coverage over large work areas.
Guardian 15071 Includes

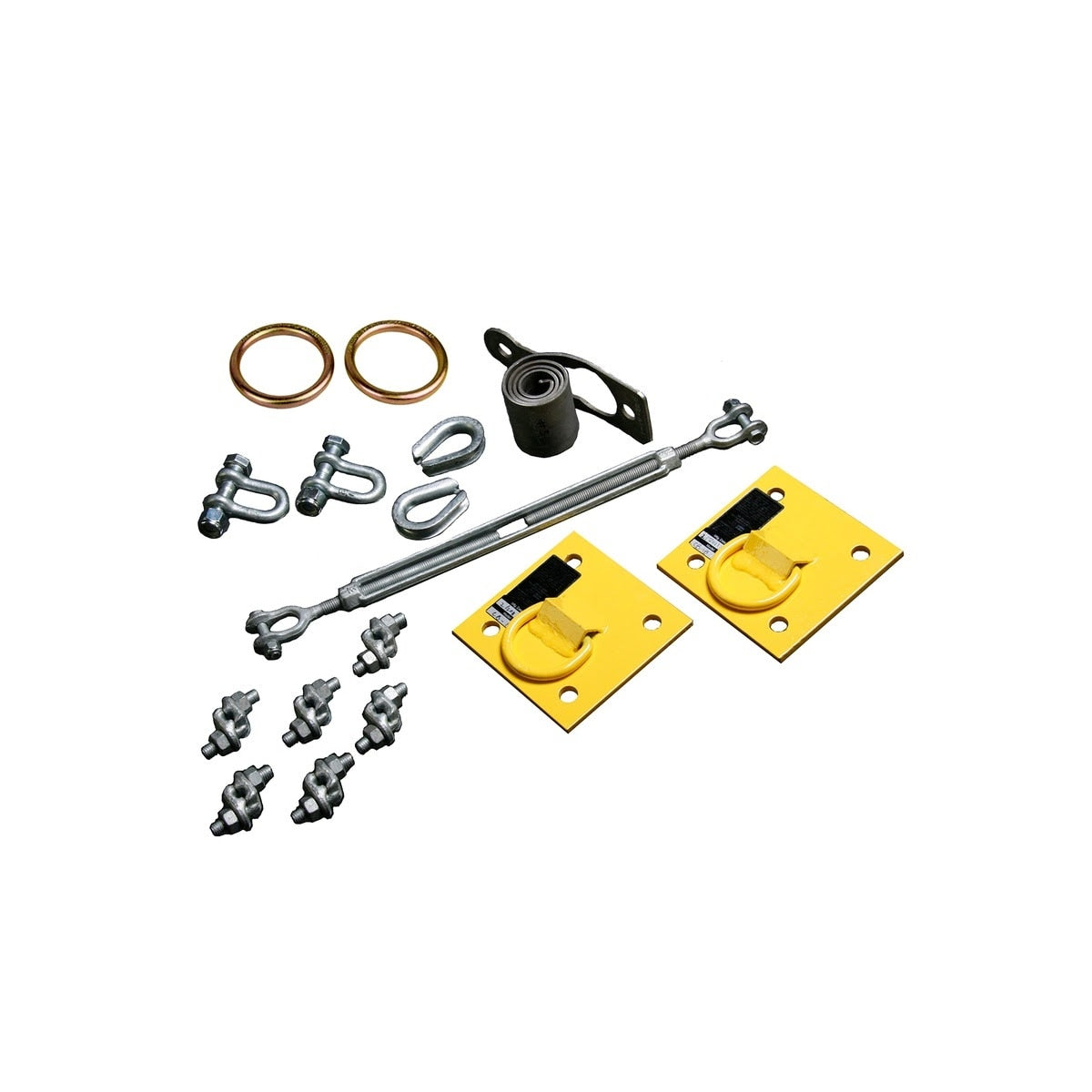

- (1) Absorbinator Horizontal Lifeline Attachment System for Column or Ceiling Mount
- (1) Set of anchorage connectors (included)
Guardian 15071 Features
- Permanent cable HLL attachment system for column or ceiling mounting
- In-line shock absorbing Absorbinator component helps redirect forces away from the user and lifeline
- Highly modular system configurable for horizontal or vertical surface mounting
- Manufactured from durable components intended for permanent installation
- Compatible with Guardian HLL-compatible anchor points
- Pre-configured system options available to simplify component selection
- Wire cable (part number 01400) sold separately and cut to order for span length requirements
- Supports up to two workers in fall arrest applications
- OSHA compliant (OSHA 1910.140, OSHA 1926.502)
Guardian 15071 Specifications
| Product Type | Components |
| Application | Column or ceiling mount |
| Maximum Span Length | Up to 60 ft |
| Anchorage Connector Type | CB-1-B Bolt-On |
| Anchorage Connectors Included | Yes |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs. |
| Material | Stainless steel, powder-coated steel, aluminum, and polyester |
| Lifeline Material | Galvanized steel |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502 |
| Country of Origin | CN |
| Shipping Weight | 13.5 lb |
