Guardian 15072 Description
The Guardian Absorbinator Horizontal Lifeline System for column or ceiling mount is a permanent, modular cable HLL attachment system that uses an in-line shock absorbing component to help redirect fall arrest forces away from the line and user. Designed for fall protection coverage over large work areas, it supports up to two workers in Fall Arrest applications and is compatible with a wide range of HLL-compatible anchor points. Wire cable (part # 01400) is sold separately and cut to order for the required span length.
Guardian 15072 Includes

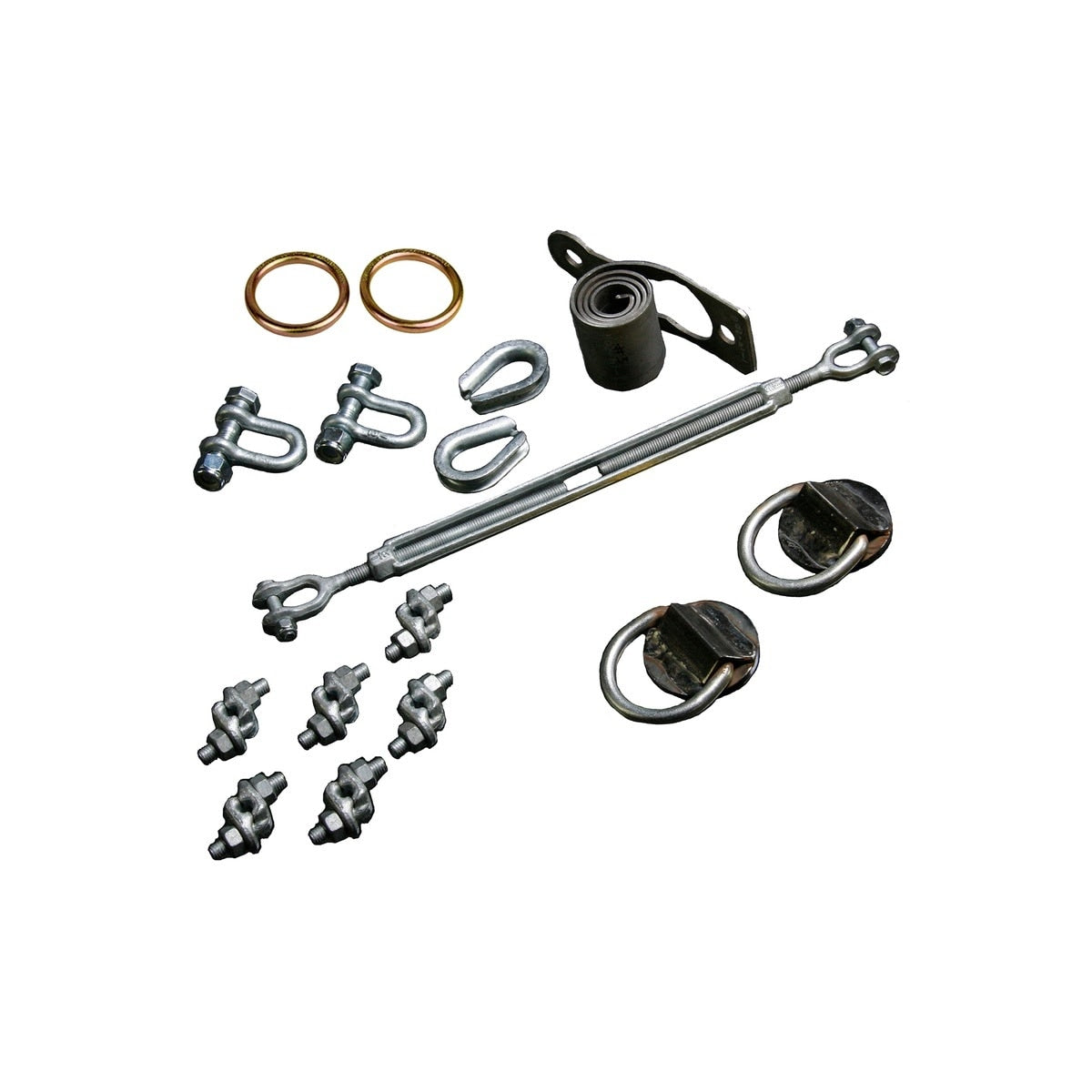

- (1) Absorbinator Horizontal Lifeline Attachment System for Column or Ceiling Mount (15072)
- (1) Anchorage connectors (CB-1-W Weld-On)
Guardian 15072 Features
- In-line Absorbinator shock absorber helps redirect forces away from the lifeline and user
- Modular system designed for permanent installation
- Compatible with Guardian HLL-compatible anchor points and a wide range of anchorage connectors
- Supports up to two workers in Fall Arrest applications
- Designed for column or ceiling mounting to cover large work areas
- Wire cable (part # 01400) sold separately and cut to order for span length requirements
- Available in pre-configured system options to reduce component selection guesswork
- Meets OSHA 1910.140 and OSHA 1926.502
Guardian 15072 Specifications
| Application | Column or ceiling mount |
| Max Span Length | Up to 60 ft |
| Weight Capacity | 130 to 420 lbs |
| Tensile Strength | 5,000 lbs |
| Material | Stainless steel, powder-coated steel, aluminum, and polyester |
| Lifeline Material | Galvanized Steel |
| Anchor Style | CB-1-W Weld-On |
| Anchorage Connector Type | CB-1-W Weld-On |
| Anchorage Connectors Included | Yes |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502 |
| Product Type | Components |
| Country of Origin | CN |
| Each Shipping Weight | 6.7 lb |
| HTS Code | 7326.90.8688 |
Toolup Part # :
136120
