Guardian 15073 Description
The Guardian Absorbinator Horizontal Lifeline Attachment System is a permanent cable HLL solution designed for column or ceiling mounting. It uses an in-line shock absorbing component to help redirect fall forces away from the lifeline and user, providing fall protection coverage over large work areas. The modular system supports up to two workers for fall arrest applications and can be configured for span lengths from 60 ft to 100 ft (wire cable sold separately).

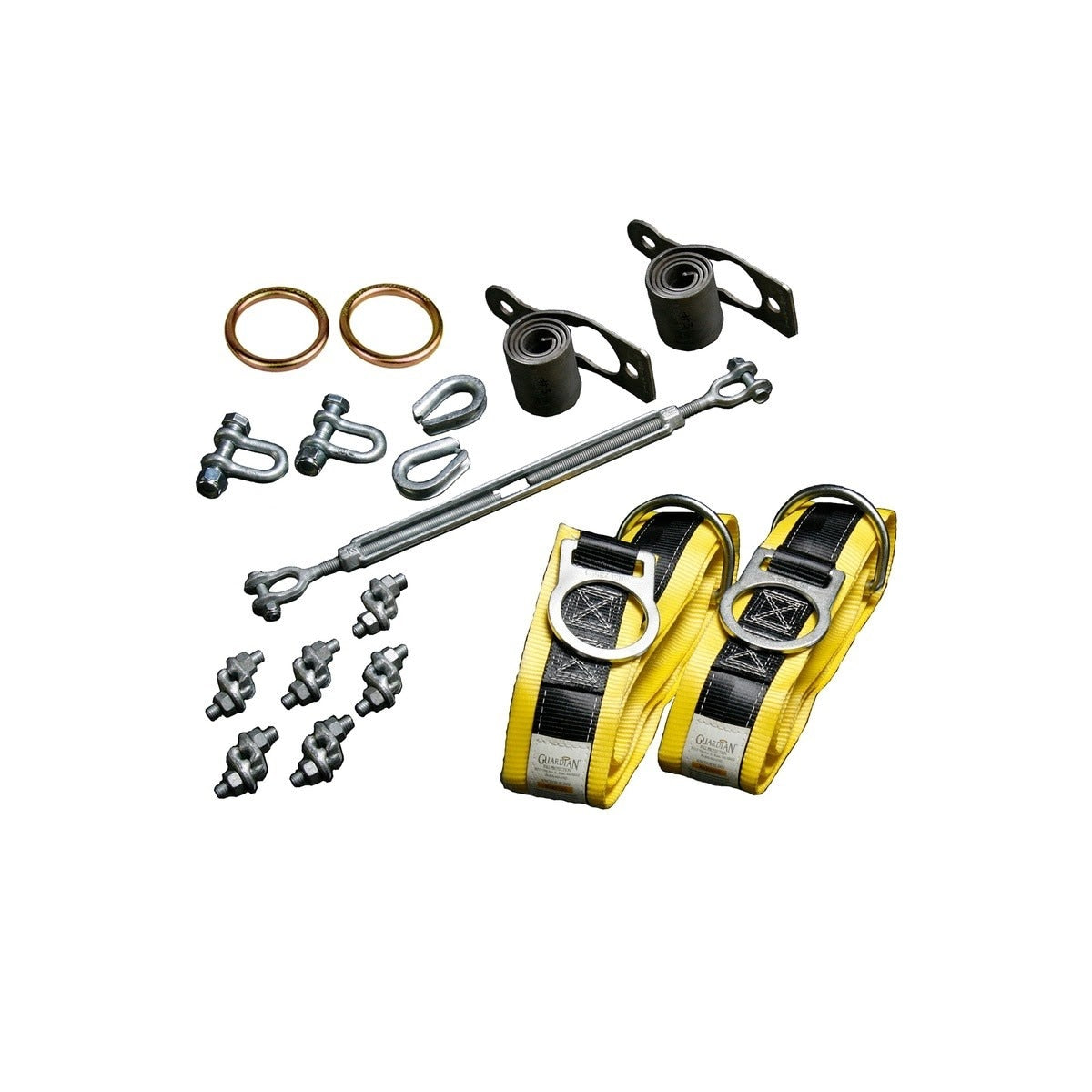

Guardian 15073 Includes
- (1) Absorbinator Horizontal Lifeline Attachment System for Column or Ceiling Mount (15073)
- (1) Pair of Premium Cross Arm Straps
- (1) Turnbuckle assembly
- (1) Hardware kit for cable HLL installation (cable clips and related fittings)
Guardian 15073 Features
- Permanent cable HLL attachment system for column or ceiling mount applications
- In-line shock absorbing Absorbinator helps redirect forces away from the lifeline and user
- Highly modular configuration for mounting on horizontal or vertical surfaces
- Compatible with Guardian HLL-compatible anchor points and anchorage connectors
- Supports up to two workers in fall arrest applications
- Designed to provide fall protection coverage over a large work area
- Manufactured from durable components intended for long lasting permanent installation
- Specific systems available pre-configured to simplify component selection
- Wire cable part number 01400 sold separately and cut to order for span requirements
- Span lengths 60 ft and greater require an Absorbinator at each HLL end point
- Meets OSHA 1910.140 and OSHA 1926.502 compliance requirements
Guardian 15073 Specifications
| System Type | Cable horizontal lifeline attachment system |
| Mount Type | Column or ceiling mount |
| Span Length | For applications 60 ft to 100 ft |
| Anchorage Connector Type | Premium Cross Arm Straps |
| Anchorage Connectors Included | Yes |
| Lifeline Material | Galvanized steel |
| Material | Stainless steel, powder-coated steel, aluminum, and polyester |
| Tensile Strength | 5,000 lbs. |
| Weight Capacity | 130 to 420 lbs. |
| Capacity | Up to 2 workers |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502 |
| Country of Origin | CN |
| Each Shipping Weight | 16.45 lb |
