Guardian 15074 Description

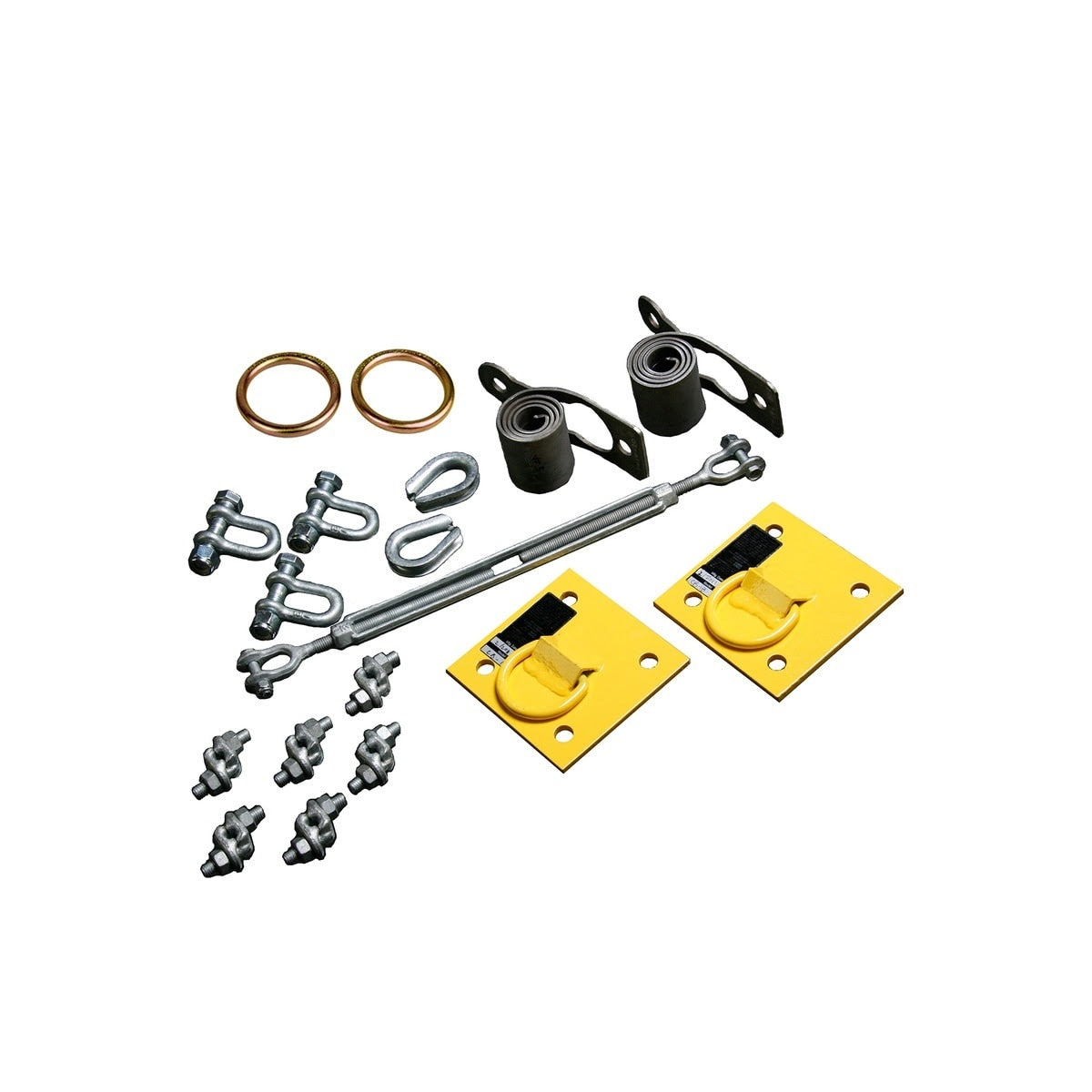

The Guardian Absorbinator Horizontal Lifeline Attachment System is a permanent cable HLL component set designed for column or ceiling mounting. Its in-line shock absorbing Absorbinator helps redirect forces away from the lifeline and user, and the modular design supports fall protection coverage over large work areas when configured with compatible anchorage connectors and cable (sold separately).
Guardian 15074 Includes
- (1) Absorbinator Horizontal Lifeline Attachment System for Column or Ceiling Mount (Model 15074)
- (1) Set of CB-1-B bolt-on anchorage connectors
Guardian 15074 Features
- Permanent, modular cable HLL system component set for column or ceiling mounting
- In-line Absorbinator shock absorber helps redirect forces away from the lifeline and user
- Manufactured from highly durable components intended for long-lasting installation
- Compatible with Guardian HLL-compatible anchor points and a wide range of anchorage connectors
- Pre-configured system options help reduce guesswork in selecting components
- Supports up to two workers in fall arrest applications (when properly configured)
- Wire cable (Part No. 01400) sold separately and cut to order for span requirements
- OSHA compliant: OSHA 1910.140 and OSHA 1926.502
Guardian 15074 Specifications
| System Type | Cable horizontal lifeline (HLL) attachment system |
| Mounting | Column or ceiling mount |
| Recommended Application Span Length | For applications 60 ft to 100 ft |
| Weight Capacity | 130 to 420 lbs |
| Tensile Strength | 5,000 lbs |
| Anchorage Connector Type | CB-1-B Bolt-On |
| Anchor Style | CB-1-B Bolt-On |
| Anchorage Connectors Included | Yes |
| Lifeline Material | Galvanized steel |
| System Materials | Stainless steel, powder-coated steel, aluminum, and polyester |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502 |
| Country of Origin | CN |
| Each Shipping Weight | 21.65 lb |
| Product Type | Components |
Toolup Part # :
136122
