At a Glance
Material
Steel
Sold As
Individual
For Use On
Wood
Mount Type
Floor-Standing
Finish
Powder Coated
Safety Rating
OSHA 1910.140, OSHA 1926.502
Description
Description
Guardian 15220 Description

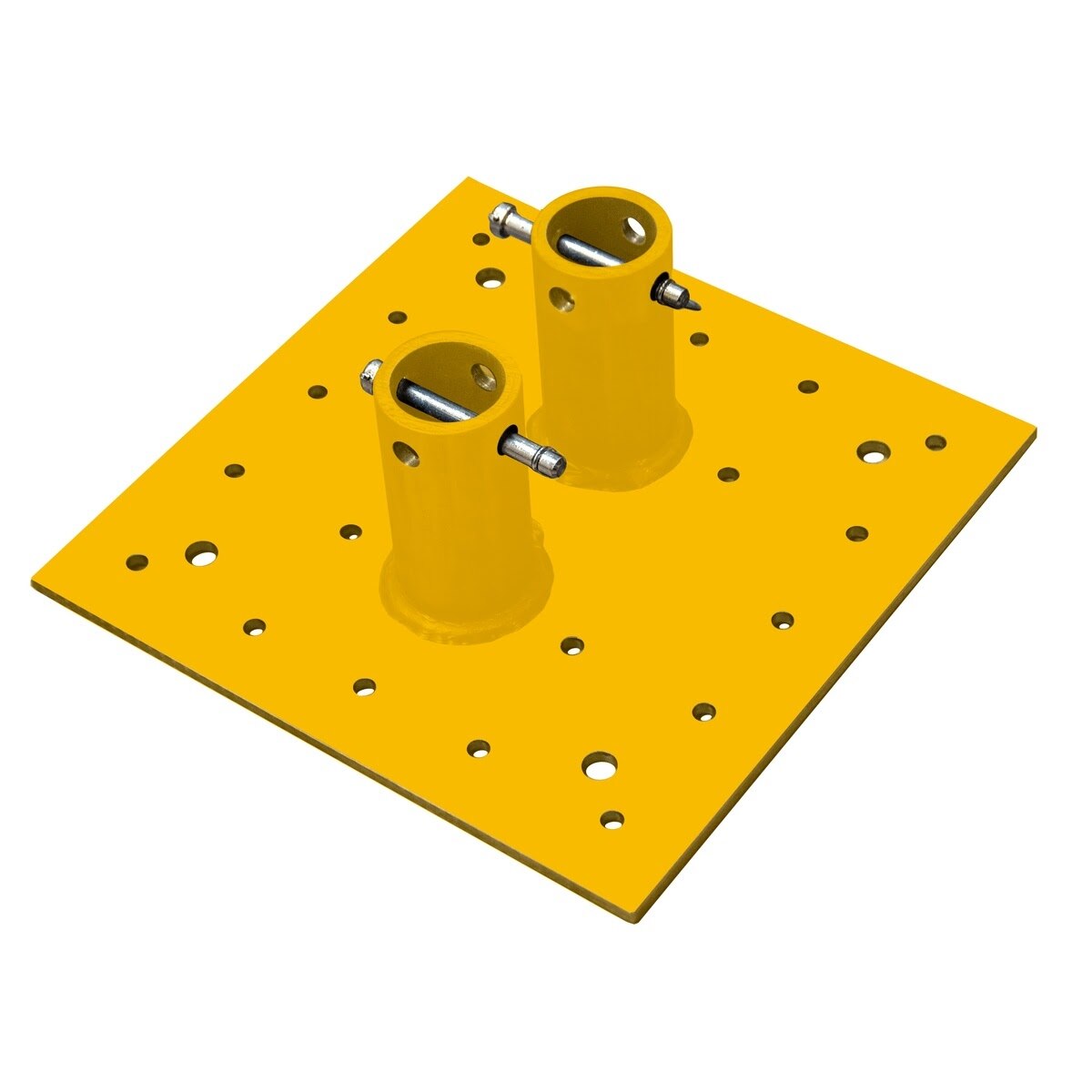

The Guardian Screw-Down G-Rail Base is a permanent mounting base option for the G-rail guardrail system. It provides the same functionality as the standard Guardrail Baseplate (part # 15180) but is designed to be securely attached to the substrate for long-term rooftop or edge protection applications. The base supports continuous guardrail configurations and can be installed on wood, metal, or concrete.
Guardian 15220 Includes
- (1) Screw-Down G-Rail Base
- (2) Linchpins
Guardian 15220 Features
- Permanent screw-down base option for the G-rail guardrail system
- Powder-coated steel construction helps protect against weather and contaminants
- Two G-rail post installation locations allow a continuous guardrail system layout
- Includes two linchpins for secure connection to the G-rail
- Installs on a variety of substrates including wood, metal, and concrete
- Standards compliance: OSHA 1910.140 and OSHA 1926.502
Guardian 15220 Specifications
| Brand | Guardian |
| Part Number | 15220 |
| Finish/Material | Powder-Coated Steel |
| Guardrail Type | Guardrail Accessory |
| Maximum Roof Pitch | 1/12 (5 Degree) |
| Standards Compliance | OSHA 1910.140; OSHA 1926.502 |
| HTS Code | 7308.90.9590 |
| UPC | 672421152202 |
| GTIN-14 (Each) | 00672421156477 |
| Shipping Weight | 15 lb |
