Guardian 20004 Description

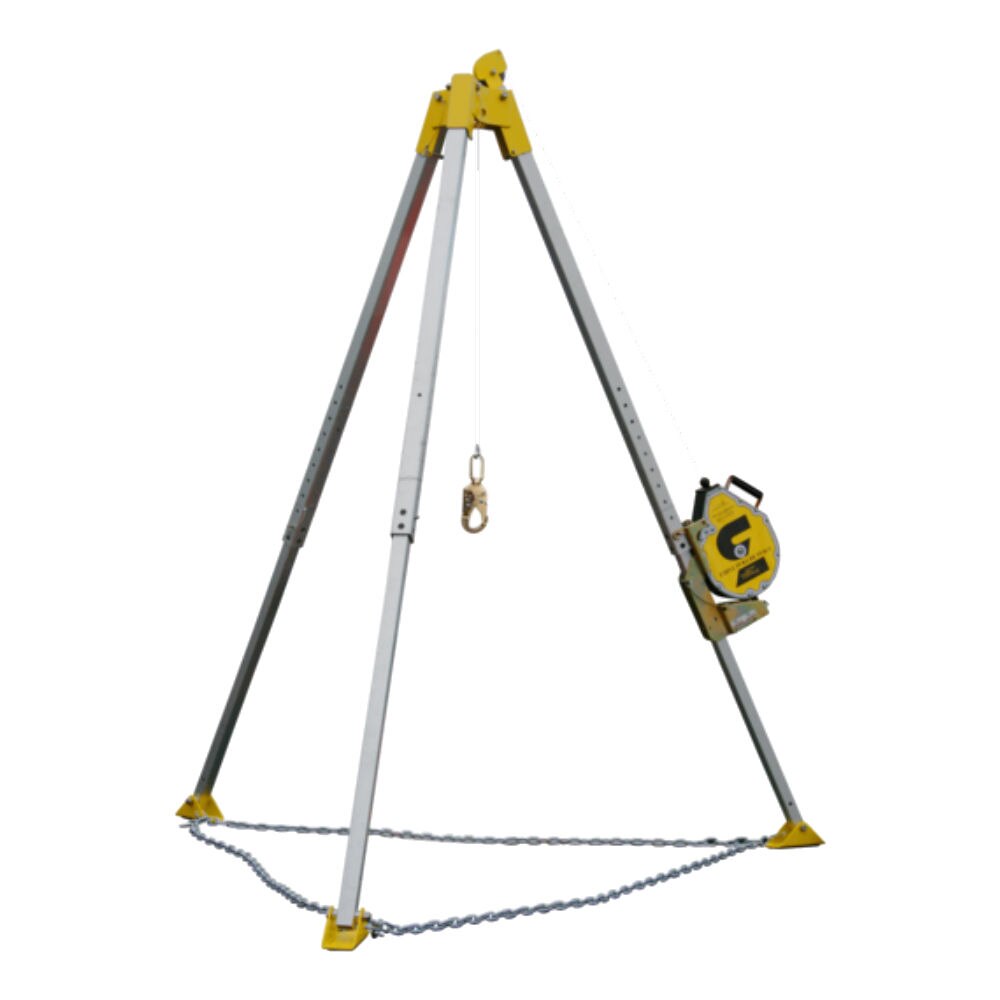

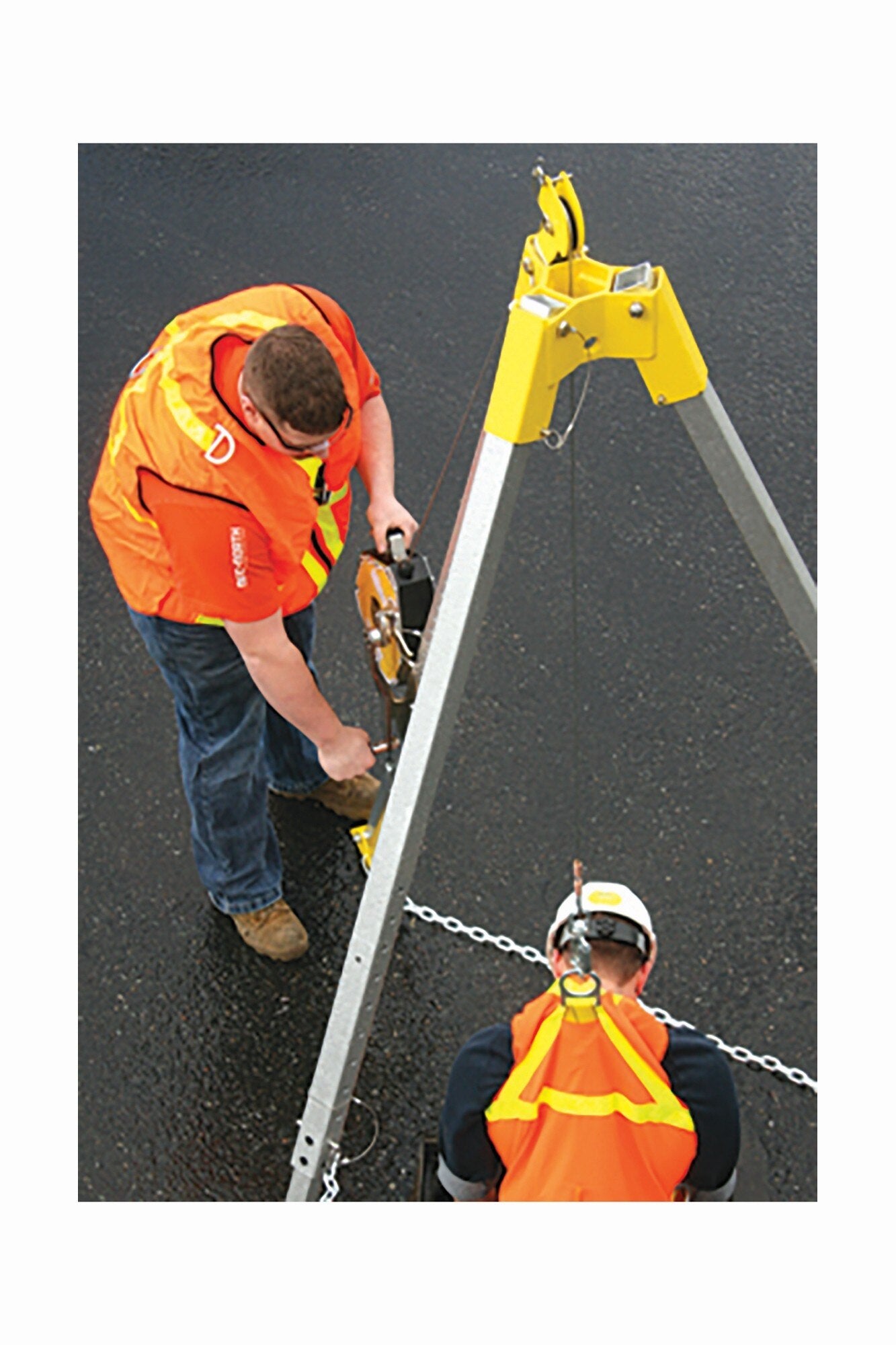

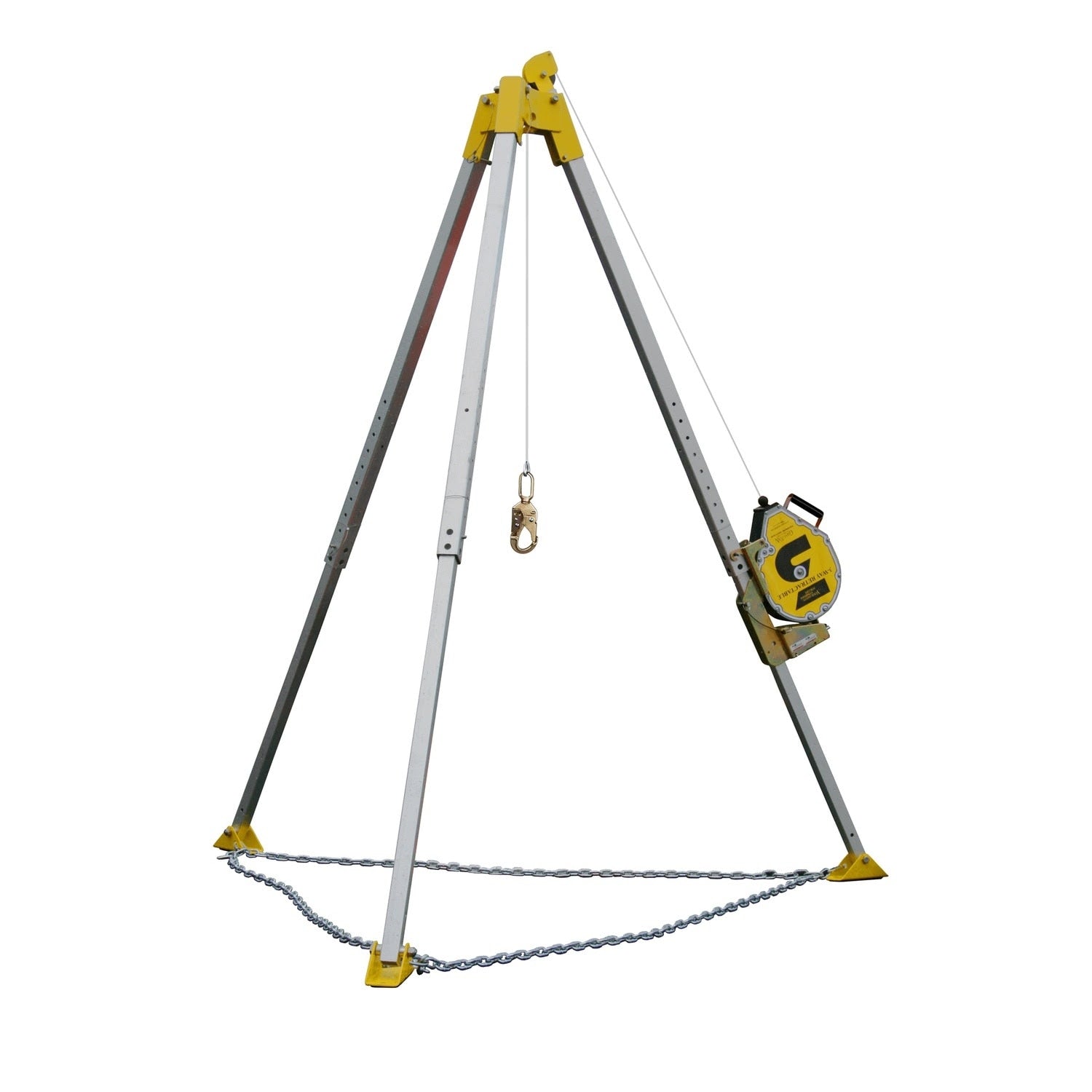

The Guardian Arc-O-Pod System Kit is a confined space rescue and retrieval solution built around a lightweight 90 in. aluminum tripod and a 60 ft 3-Way SRL. Adjustable locking legs, an integrated pulley, secondary anchorage eyebolts, a quick-mount bracket, and an included storage bag help make setup, transport, and operation easier on the jobsite.
Guardian 20004 Includes
- (1) Arc-O-Pod System Kit
- (1) 90 in. tripod
- (1) 60 ft. 3-Way SRL
- (1) Quick-mount bracket
- (1) Storage bag
Guardian 20004 Features
- 90 in. maximum height tripod for confined space rescue and retrieval
- Lightweight aluminum construction for portability
- Adjustable locking legs size in 2 in. increments
- Fits openings up to 5-1/2 ft. in diameter
- Designed to eliminate slippage or movement during use
- Integrated pulley system supports mechanical lifeline equipment
- Drop forged steel eyebolts provide a secondary anchorage point
- Includes a quick-mount bracket compatible with the Guardian 3-Way SRL
- Includes a storage bag for transport between jobsites
Guardian 20004 Specifications
| Maximum Height | 90 in. |
| SRL Length | 60 ft. |
| Weight Capacity | 130-420 lb |
| Maximum Opening Diameter | 5-1/2 ft. |
| Leg Adjustment Increment | 2 in. |
| Hook Type | Snap |
| Hook Material | Steel |
| Material | Powder-coated steel, stainless steel, aluminum, neoprene, and polyethylene |
| Standards Compliance | OSHA 1910.140; OSHA 1926.502; ANSI Z359.1 |
| Unit Length (in) | 65.75 |
| Unit Width (in) | 15.25 |
| Unit Height (in) | 19.5 |
| Unit Weight (lb) | 76 |
| Country of Origin | China |
Toolup Part # :
18083
