At a Glance
Weight Capacity
550 lb
Cable Length
65 ft
Material
Galvanized Steel
Sold As
Individual
Mount Type
Tripod
Safety Rating
OSHA 1910.140, OSHA 1926.502, ANSI Z359.11
Description
Description
Guardian 32270 Description

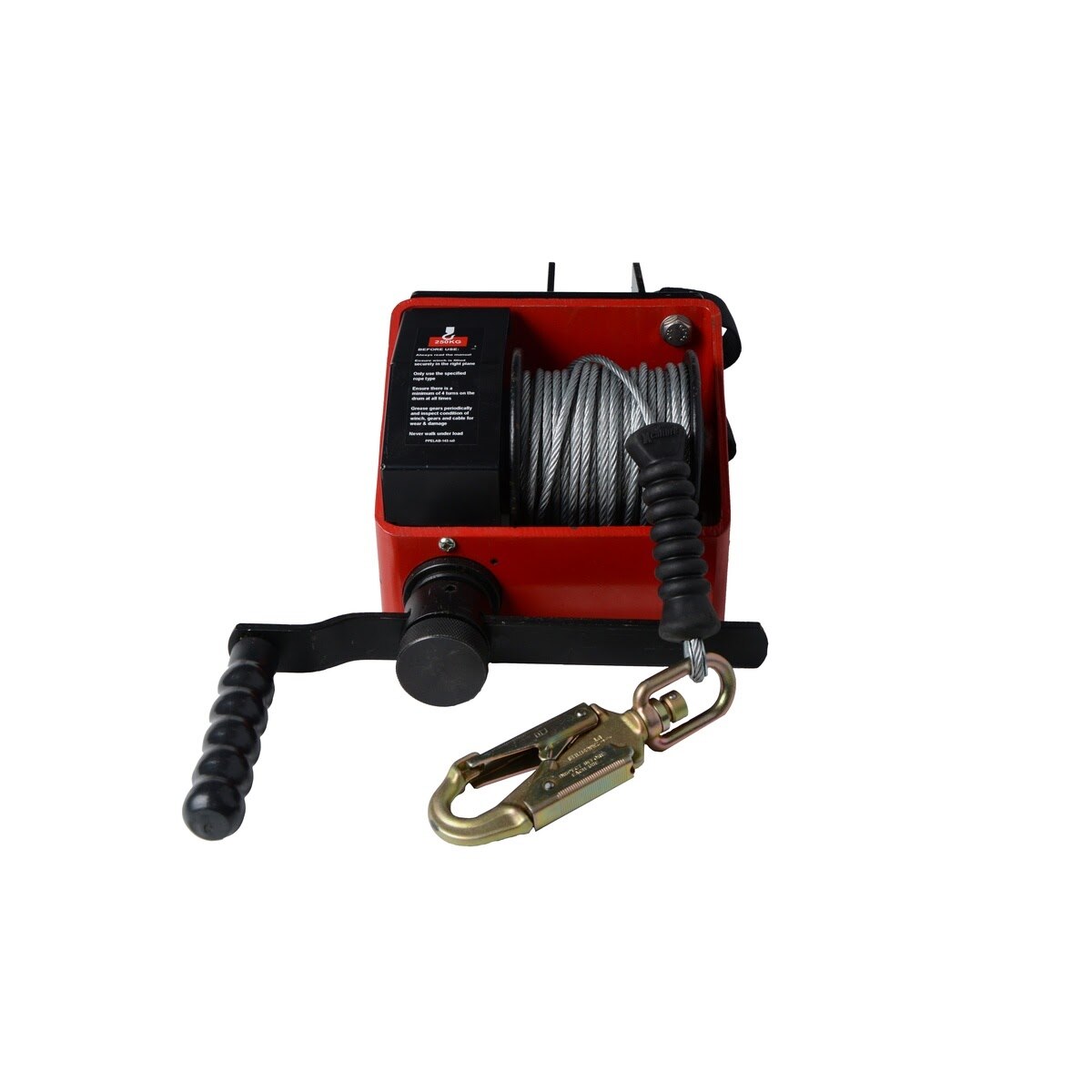

The Guardian WG-01 Rescue Winch with bracket is designed for rescue and confined space applications, supporting personnel hoisting up to 310 lbs and material handling up to 550 lbs. It features a 65 ft galvanized steel cable, an adjustable-leverage retrieval handle requiring up to 24 lbs of force, and a load-indicating steel snap hook. Compatible with the #15030 Arc-o-Pod and #32200 TR3 Tripods.
Guardian 32270 Includes
- (1) WG-01 Rescue Winch and Bracket Assembly (Model 32270)
Guardian 32270 Features
- Suitable for personnel hoisting up to 310 lbs
- Suitable for material handling up to 550 lbs
- 65 ft x 3/16 in galvanized steel cable
- Adjustable-leverage retrieval handle
- Up to 24 lbs of force required for operation
- Load-indicating steel snap hook
- Compatible with #15030 Arc-o-Pod
- Compatible with #32200 TR3 Tripods
Guardian 32270 Specifications
| Product Type | Rescue Winch with Bracket |
| Cable Length | 65 ft |
| Cable Diameter | 3/16 in |
| Cable Material | Galvanized Steel |
| Personnel Hoisting Capacity | 310 lbs |
| Material Handling Capacity | 550 lbs |
| Maximum Operating Force Required | 24 lbs |
| Compatible With | #15030 Arc-o-Pod and #32200 TR3 Tripods |
| Product Length (in) | 10 |
| Product Width (in) | 7.5 |
| Product Height (in) | 6 |
| Shipping Weight (lb) | 28 |
| HTS Code | 7616.99.5190 |
Toolup Part # :
694793
