HD Electric DDPM-40/K01 Dual Display Wireless Phasing Voltmeter
Free Shipping
$3,483.60
$4,602.35
Unit price
/
Unavailable
Description
Description

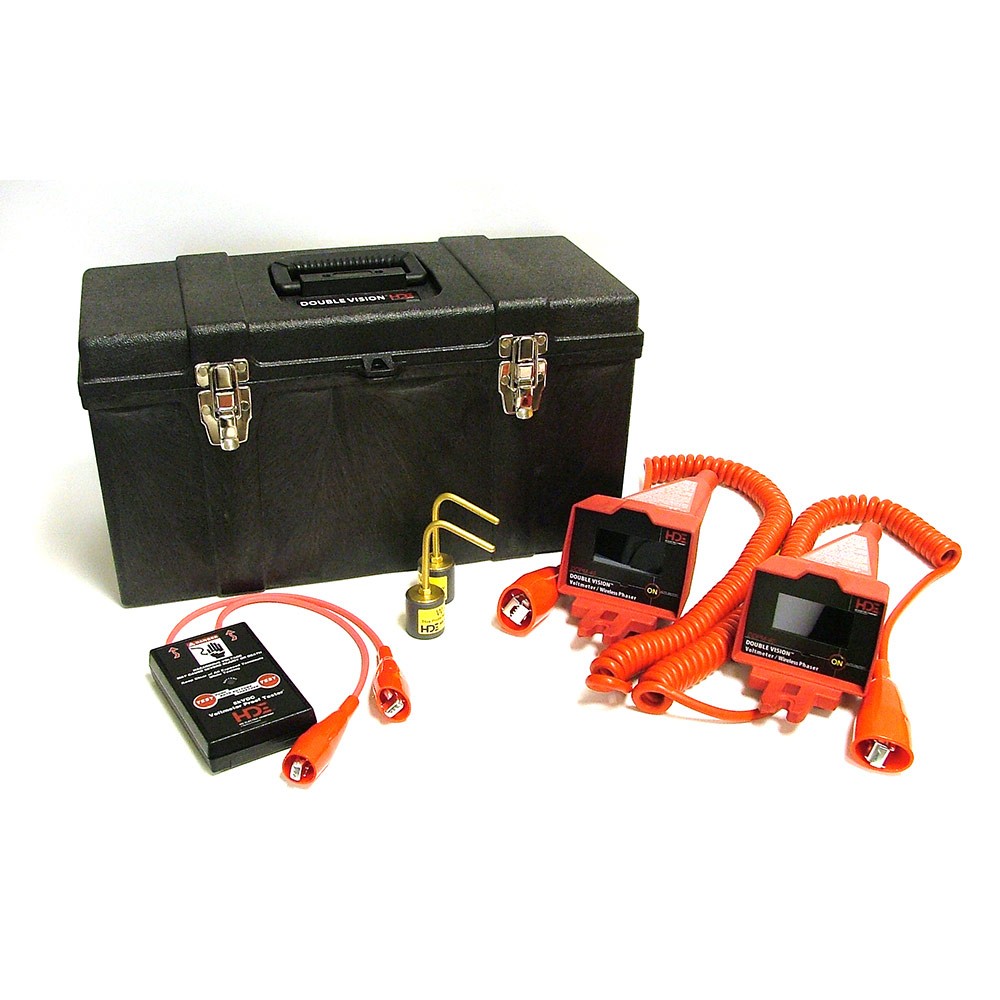

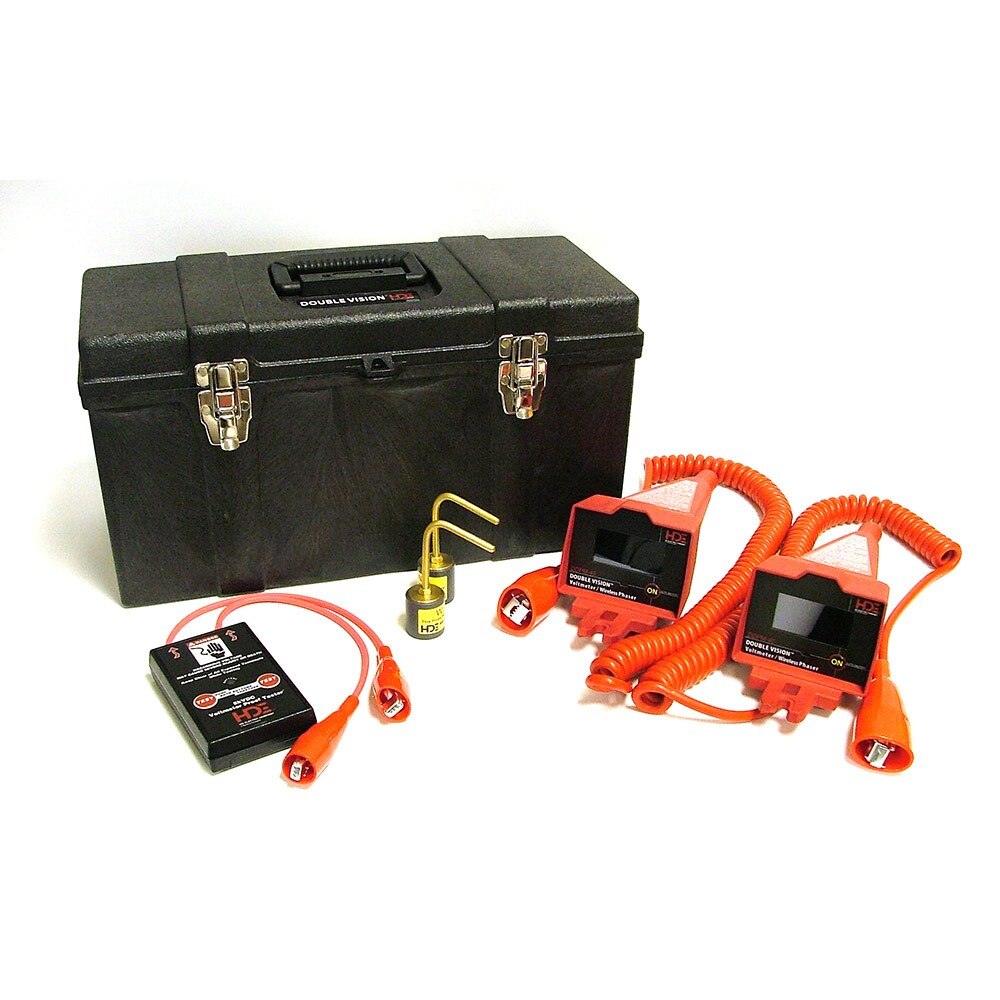

HD Electric DDPM-40/K01 Includes
- (1) DDPM-40
- (2) 025-OLPS-5 Overhead Hook Brass Probe
- (1) PT-5000B Voltmeter Proof Tester
- (1) CS-DDVM Case
HD Electric DDPM-40/K01 Features
- Over-sized, dual digital LED display
- Wireless communication allows for measurements to be taken over a distance up to 100 feet
- One button operation for test modes
- Ultra-light, high-strength nylon molded housing
- Dual hot stick connection options (universal spline and shotgun stick)
- Heavy duty insulated ground cord, extends up to 12 feet
- Voltage and Phasing Test Mode: Secondary voltages starting at 5V - Primary voltages up to 43kV - Line to ground (5V-25kV); Line to line (5V-43kV); Phasing (leading/lagging) and degree difference
- Capacitive Test Point Mode: Test Point feature (indicated by TP on display) for phasing and measuring voltage from elbow test points: Test Point to Ground; Test Point to Test Point
- Peak Hold Mode: Indicated by H on display, holds the highest reading when in Peak Hold Mode. Default mode is real-time.
HD Electric DDPM-40/K01 Specifications
| OPERATING VOLTAGE RANGE | 5V-43kV line to line, 5V-25kV line to ground |
| OPERATING FREQUENCY | 25-1000Hz |
| ACCURACY | Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements) |
| LED NUMERAL | HEIGHT 0.7", indicates 3 digits |
| BATTERY | 9V lithium or alkaline, one in each display housing |
| BATTERY LIFE | 8 hours of continuous use under normal conditions |
| OPERATING TEMPERATURE RANGE | -20ºF to +120ºF (-29°C to 49°C) |
| WEIGHT (WITHOUT PROBES) | 2.25 lbs (1.02kg) each unit |
| DIMENSIONS (WITHOUT PROBES) | 14" L x 4" H x 4 5/8" W (36cm x 10cm x 11cm) |
| CORD LENGTH | Retracted |
