HD Electric DDVM-40/K01 Dual Display Digital Voltmeter, 40KV
Free Shipping
$2,805.34
$3,796.70
Unit price
/
Unavailable
Description
Description

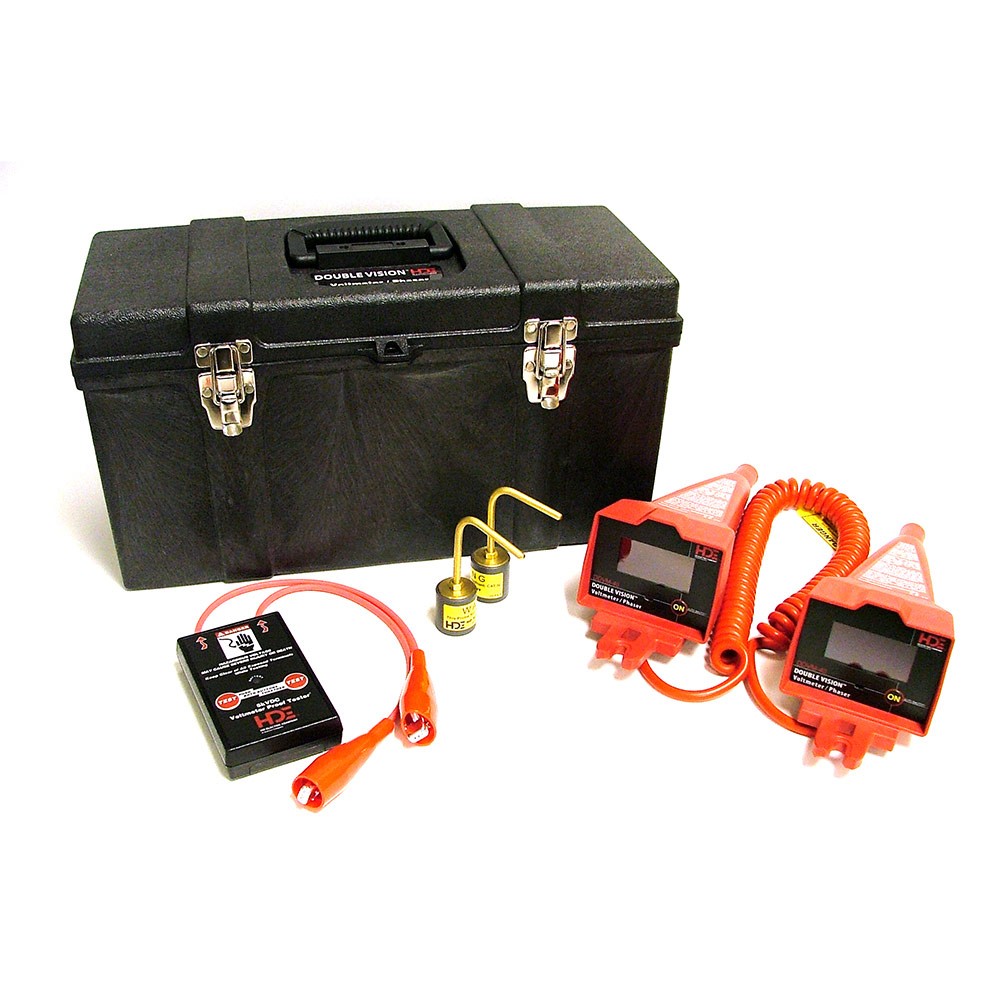

HD Electric DDVM-40/K01 Includes
- (1) DDVM-40
- (2) 025-OLPS-5 Overhead Hook Brass Probe
- (1) PT-5000B Voltmeter Proof Tester
- (1) CS-DDVM Case
HD Electric DDVM-40/K01 Features
- Oversized, dual digital LED display
- One button operation for test modes
- Ultra-light, high-strength molded housing
- Dual hotstick connections - universal spline and shotgun stick
- Dual battery monitor with auto shut off
- Voltage and Phasing Mode: Secondary Voltages Starting at 5V -Primary Voltages up to 40kV - Line-to-Line; Line-to-Ground
- Capacitive Test Point Mode: Test Point feature (indicated by TP on display) for phasing and measuring voltage from elbow test points - Test Point to Ground; Test Point to Test Point
- Cable Fault Test Mode - When used with the Cable Fault Tester accessory, will test for leakage current in underground primary voltage cables
- Peak Hold Mode: Indicated by H on display, holds the highest reading when in Peak Hold mode. Default mode is real-time
HD Electric DDVM-40/K01 Specifications
| OPERATING VOLTAGE RANGE | 5V to 40kV |
| OPERATING FREQUENCY | 25-1000Hz |
| ACCURACY | Within 1% of reading +/- 3 counts |
| LED NUMERAL HEIGHT | 0.7", indicates 3 digits |
| BATTERY | 9V lithium or alkaline, one in each display housing |
| BATTERY LIFE | 8 hours continuous use |
| OPERATING TEMPERATURE RANGE | -20°F to +120°F (-29°C to +49°C) |
| WEIGHT (WITHOUT PROBES) | 4.02 lbs (1.82kg) |
| DIMENSIONS (WITHOUT PROBES) | 14" L x 4" H x 4 5/8" W (36cm x 10cm x 11cm) |
| CORD LENGTH | Retracted |
