HD Electric | SKU:
52074187
HD Electric DVI-100T/K01 Digital Voltage Indicator Kit, 99kV
Free Shipping
$1,328.04
$1,647.45
Unit price
/
Unavailable
Description
Description

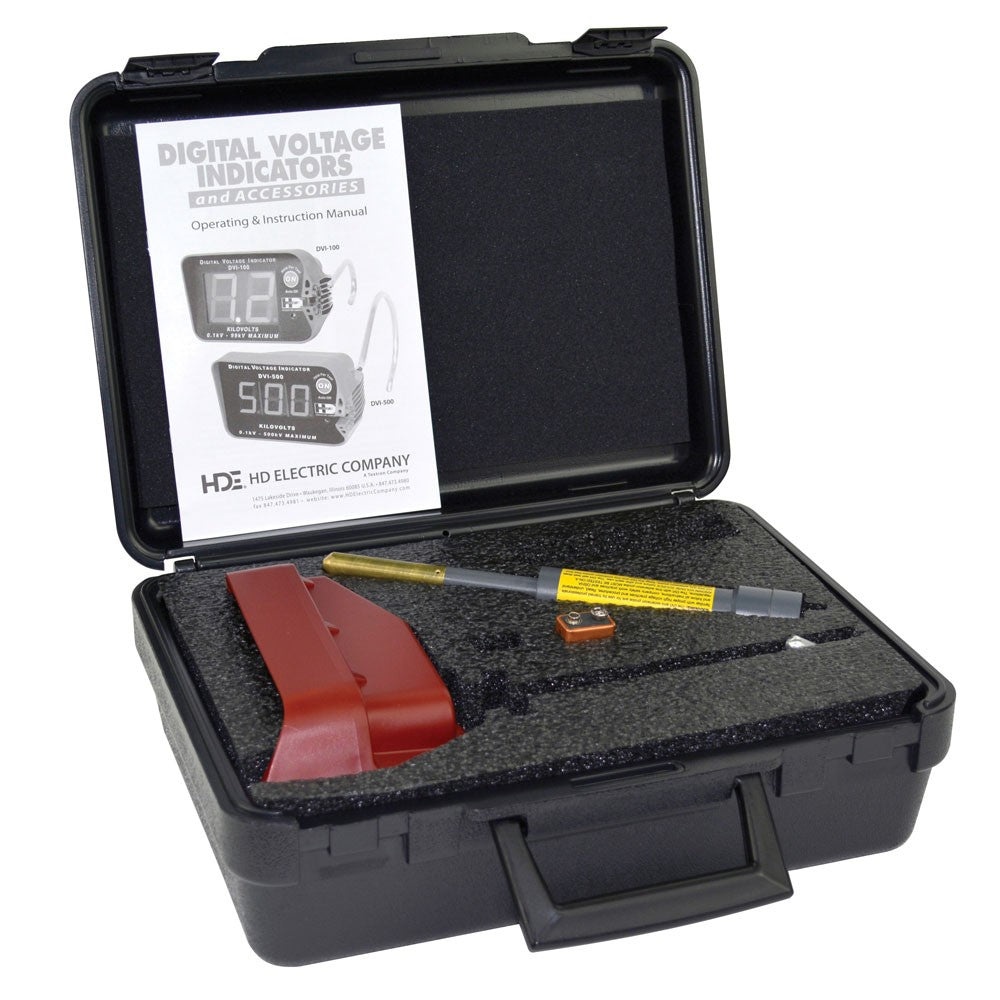

HD Electric DVI-100T/K01 Includes
- (1) DVI-100T
- (1) HP-DVI-2 Overhead hook probe, 2" diameter opening
- (1) IEP-DVI-5 Underground bushing probe, 15, 25 and 35 kV class
- (1) CS-DV Case
HD Electric DVI-100T/K01 Features
- For use on system voltages up to 161kV (reads up to 99kV line-to-ground)
- Large auto-ranging LED display indicatesthe line-to-ground voltage level
- Audible indication when voltage is detected
- Voltage readout allows user to distinguish between nominal and induced voltage
- Measure Elbow Test Points with the DVI-100T (underground probe required)
- Use on overhead lines or in underground applications with bushing probe
- Built-in universal spline for standard hot stick attachment
- Easy-to-read LED display in bright or dark conditions
- Built-in self-test to verify proper operation
- Auto-shutoff with low battery function
- Powered by a field-replaceable 9V lithium or alkaline battery
- No range selectorswitch orsettingsrequired
- Compact, rugged and lightweight polycarbonate housing
HD Electric DVI-100T/K01 Specifications
| OperatingVoltage Range | 0 - 99kV line-to-ground (0.1kV - 9.9kV and 10kV - 99kV) |
| Operating Frequency | 60Hz (50Hz available) |
| OperatingTemperature Range | -40°F to +120°F (-40°C to +49°C) |
| Dimensions | Housing |
| Weight | 1.37 lb. with small overhead probe (0.62kg) |
| LED Height | 2.25"(6cm) |
| Accuracy | Typical overhead line accuracy in compact overhead three phase configuration +/- 10%; other applications up to +/- 25% |
| Power Supply | Field replaceable 9-volt lithium or alkaline battery |
| Battery Life | About 100 readings with 9V alkaline battery |
