HD Electric | SKU:
52068907
HD Electric DVI-500T/K01 Digital Voltage Indicator Kit, 500kV
Free Shipping
$1,451.37
$1,917.45
Unit price
/
Unavailable
Description
Description

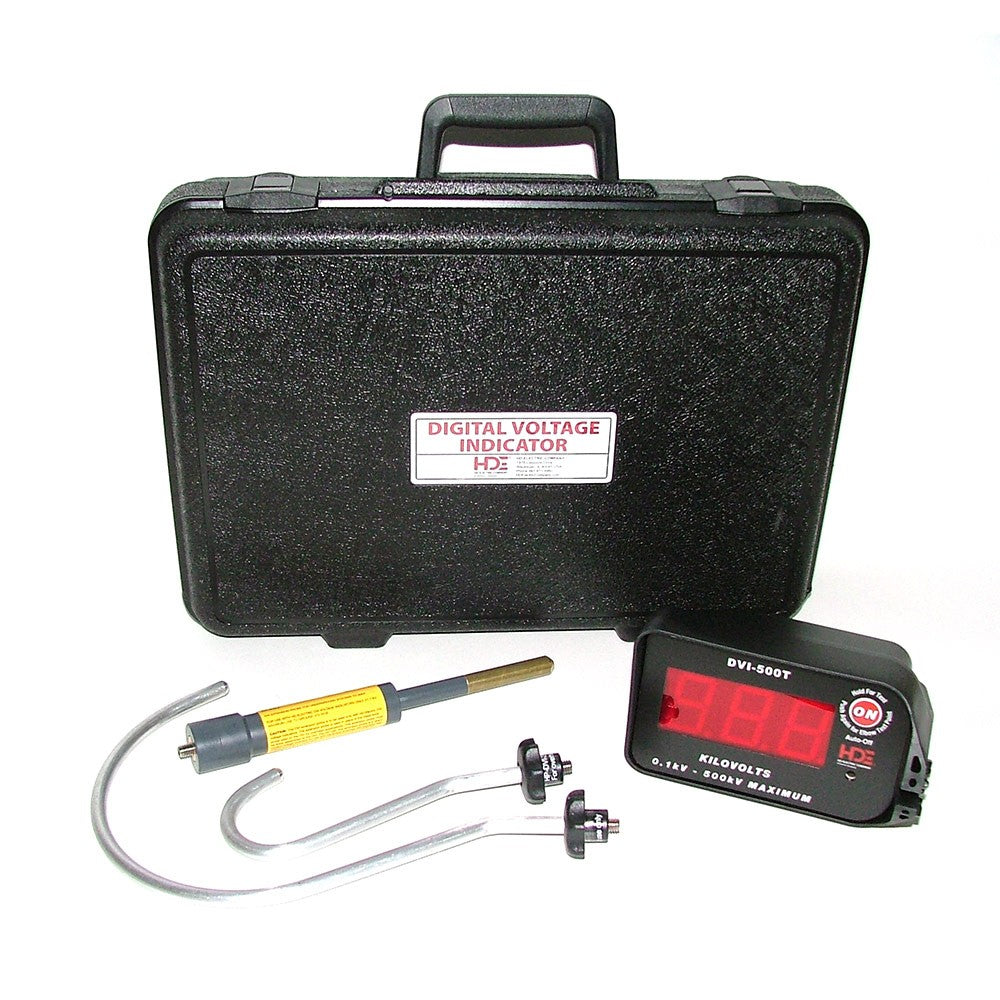

HD Electric DVI-500T/K01 Includes
- (1) DVI-500T
- (1) HP-DVI-2 Overhead hook probe, 2“ dia. Opening
- (1) HP-DVI-6 Overhead hook probe, 6“ diameter opening
- (1) IEP-DVI-5 Underground bushing probe, 15, 25 and 35 kV class
- (1) CS-DVI-5 Case
HD Electric DVI-500T/K01 Features
- For use on system voltages up to 800kV (reads up to 500kV line-to-ground)
- No range selectors witch or settings required
- Large LED display indicates the line-to-ground voltage level
- Display is easy to read in bright or dark conditions
- Voltage readout allows the user to distinguish between nominal and induced voltages
- Audible indication when voltage is detected
- Measure elbow test points (DVI-500T only)
- Built-in universal spline forstandard hot stick attachment
- Built-in self test to verify proper operation
- Auto shutoff with low battery function
- Powered by a field replaceable 9V lithium or alkaline battery
- Compact, rugged and lightweight polycarbonate housing
HD Electric DVI-500T/K01 Specifications
| OperatingVoltage Range | 0-500kV line-to-ground (0.1kV – 9.9kV and 10kV to 500kV) |
| Operating Frequency | 60Hz (50Hz available) |
| Operating Temperature Range | -40°F to + 120°F (-40°C to +49°C) |
| Dimensions | Housing |
| Weight | 1.37 lb. with small overhead probe (0.62 kg) |
| LED Height | 1.45"(3.7 cm) |
| Accuracy | Typical overhead line accuracy in compact overhead three phase configuration +/- 10%, other applications up to +/-25% |
| Power Supply | Field replaceable 9-volt lithium or alkaline battery |
| Battery Life | About 100 readings with 9V alkaline battery |
