HD Electric UCT-8/K01 Underground Cable Fault Tester
Free Shipping
$2,047.87
$2,554.80
Unit price
/
Unavailable
Description
Description

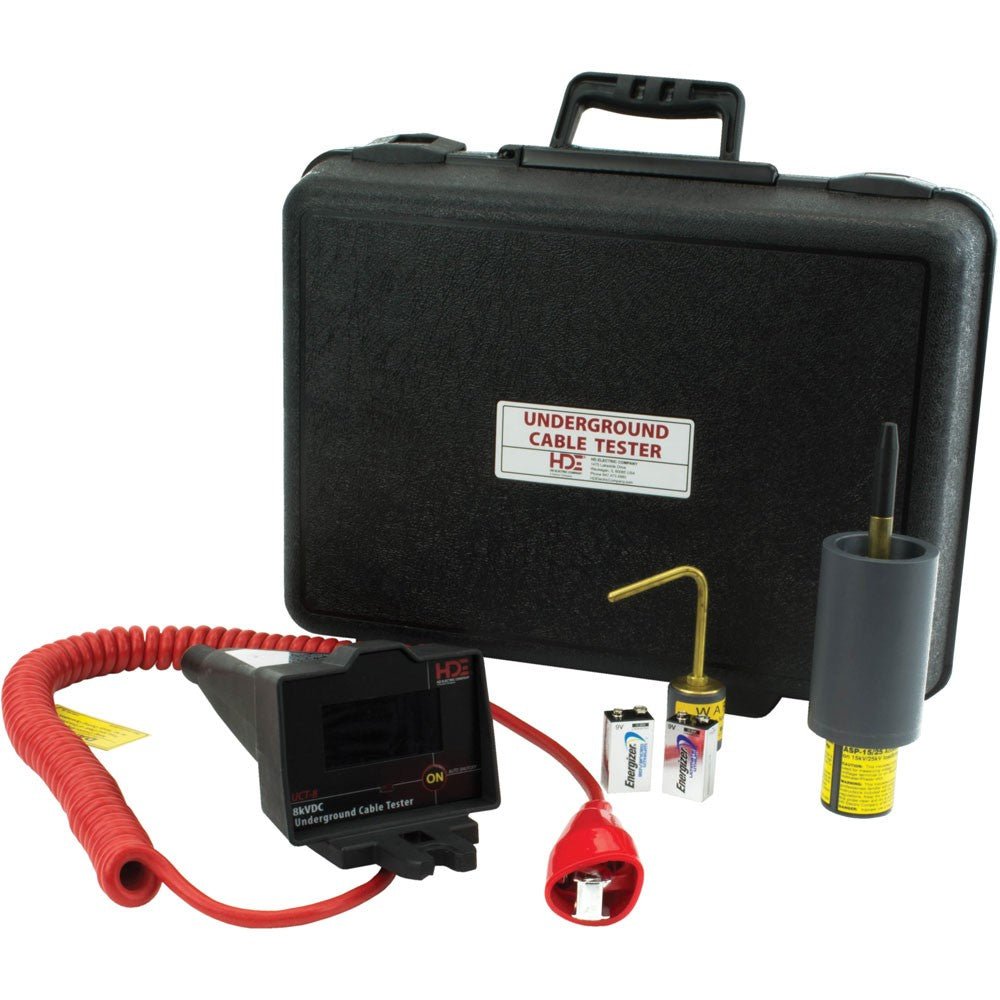

HD Electric UCT-8/K01 Includes
- (1) Underground Cable Fault Tester
- (1) 025-OLPS-5 Overhead Hook Brass Probe
- (1) ASP-15/25 Underground Adapter Bushing Probe, 15kV & 25kV Class
- (1) CS-UCT Case
HD Electric UCT-8/K01 Features
- Clear and simple test results shown on the large LED display, no interpretation needed
- Compact, single hotstick operation for testing cable
- Self-contained 8kV high voltage source powers the tester
- Easy to use – one button test function
- Lightweight
- Field replaceable 9V lithium battery with low battery indication
HD Electric UCT-8/K01 Specifications
| TEST VOLTAGE OUTPUT | 8kVDC |
| OPERATING VOLTAGE RANGE | 50V-25kVAC line to ground |
| OPERATING FREQUENCY | 50/60Hz |
| ACCURACY | AC voltage, 5% of reading |
| MAXIMUM CABLE LENGTH TESTED | 1500 ft. (457m) |
| BATTERY | 9V lithium |
| BATTERY LIFE | Approximately 40 tests on 300' of 250 Kcmil (non-faulted) cable, fewer on faulted cable |
| OPERATING TEMPERATURE RANGE | +20°F to +120°F (-7°C to +49°C) |
| WEIGHT (WITHOUT PROBES) | 3 lbs (1.36kg) |
| DIMENSIONS (WITHOUT PROBES) | 14" L x 4.6" W x 4.1" H (36cm x 12cm x 10cm) |
| CORD LENGTH | Retracted |
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Have a question? Ask owners.
Start typing and see existing answers.
Does it give faulty readings?
The HD Electric UCT-8/K01 Underground Cable Fault Tester is designed to provide clear and simple test results, displayed on a large LED screen, with no interpretation needed. It features integrated safety circuitry to detect improperly de-energized cables and prevent system damage. While the product is generally praised for its ease of use and reliability, there are no specific reviews or reports indicating frequent issues with faulty readings.
