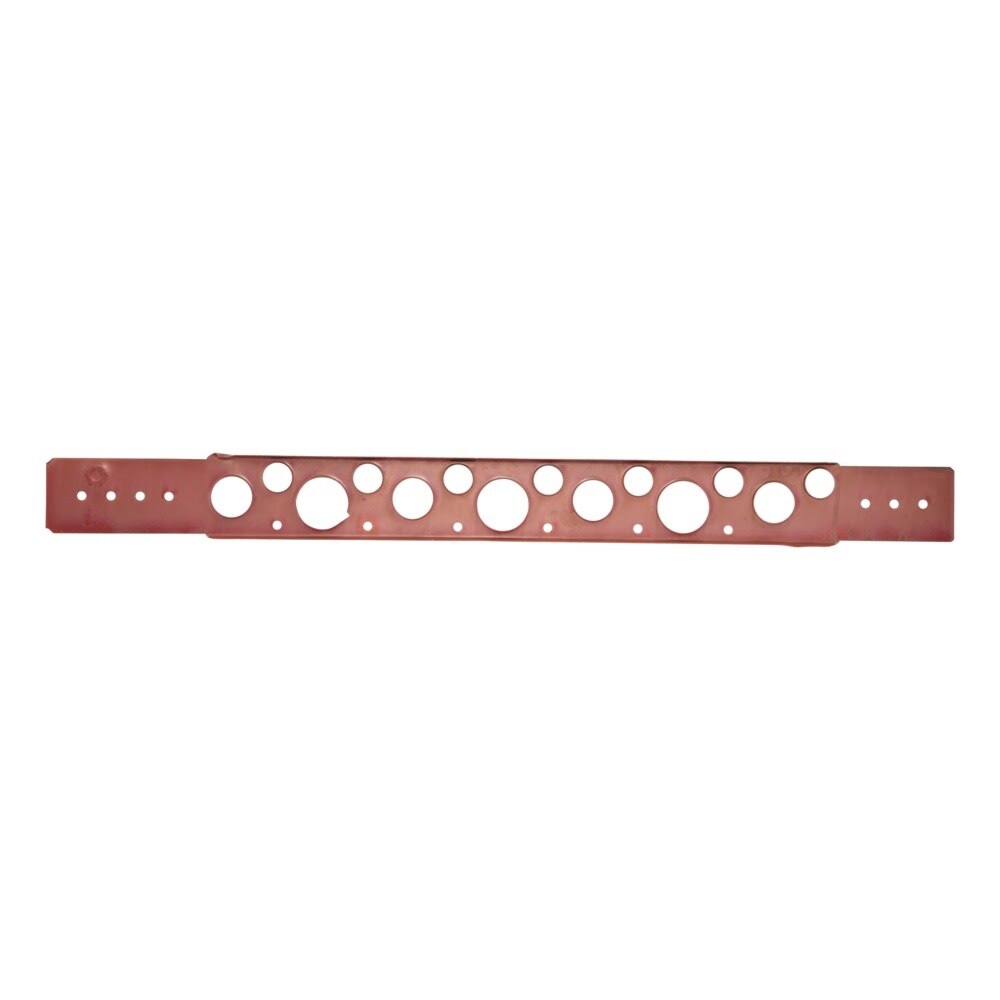

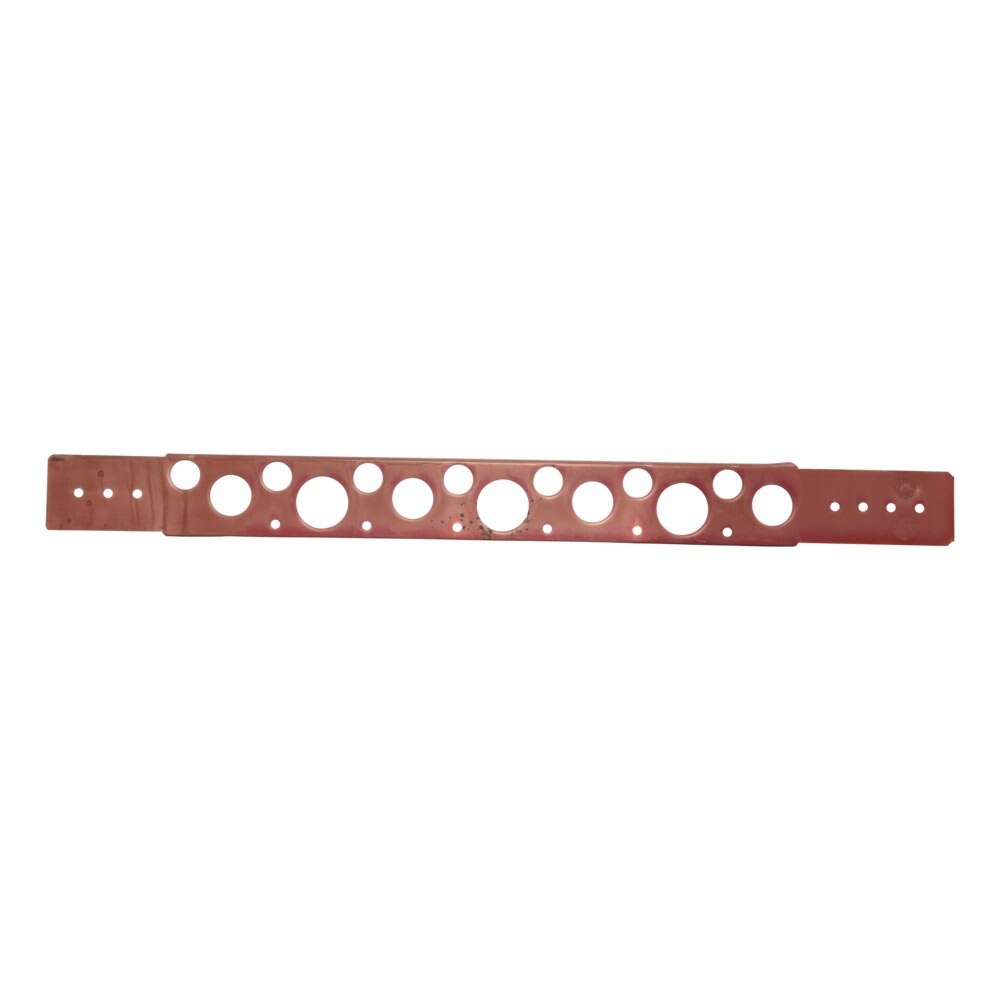

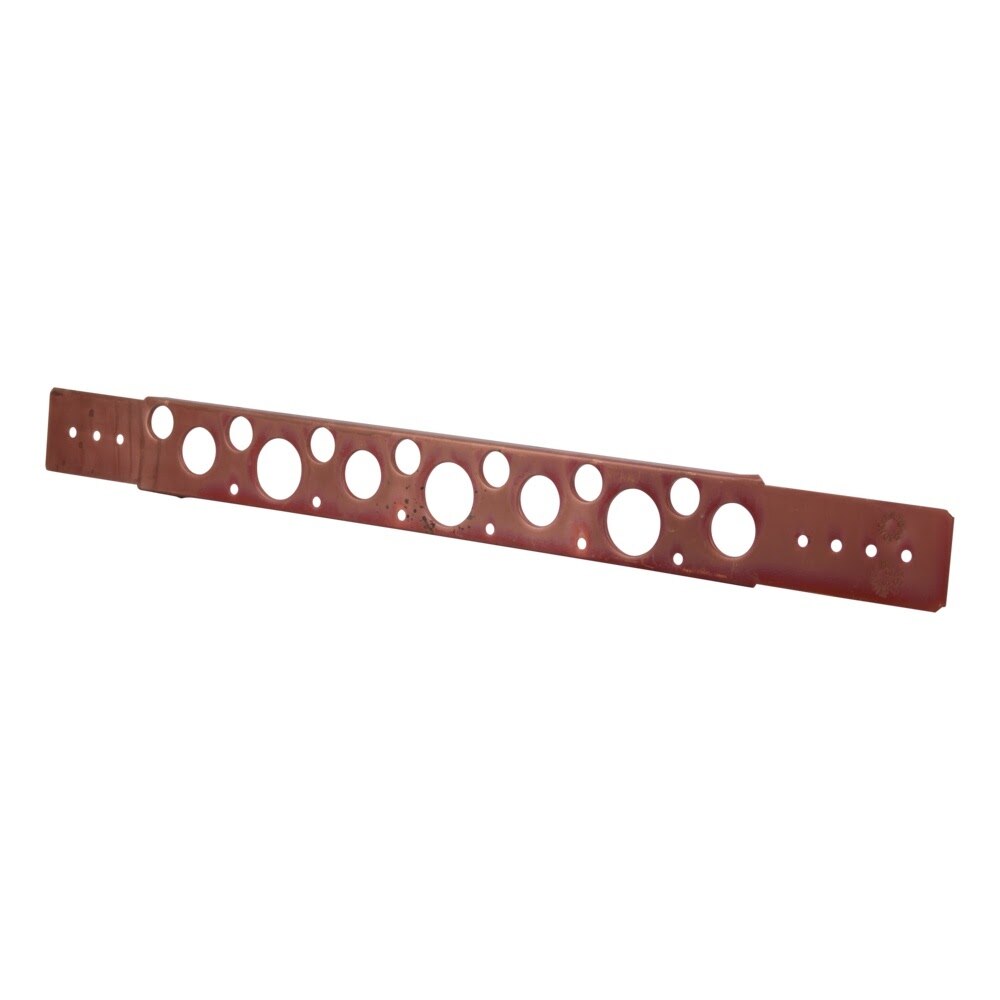

HoldRite 108-20 Description
The HoldRite 108-20 is a 20 in. copper-bonded steel flat bracket designed to position copper water supply lines in residential plumbing applications. Its extruded holes provide additional soldering surface, rolled edges add strength, and the bracket supports 1/2 in., 3/4 in., or 1 in. pipe.
HoldRite 108-20 Includes
- (1) 20 in. Copper-Bonded Flat Pipe Support Bracket
HoldRite 108-20 Features
- Copper-bonded steel construction for copper pipe support applications
- Extruded holes provide additional soldering surface
- Rolled edges add strength
- Allows contractors to heat the pipe instead of the bracket when soldering
- Supports 1/2 in., 3/4 in., and 1 in. pipe
- Holes on 2 in. centers for 1/2 in. tubing
- Holes on 4 in. centers for 3/4 in. and 1 in. tubing
- Ideal for lavatory, water closet, and water heater applications
- UPC / IPC / IAPMO listed
HoldRite 108-20 Specifications
| Series | 108 |
| Product Type | Flat Pipe Support Bracket |
| Material | Copper-bonded steel |
| Hole Type | Extruded |
| Compatible Pipe Sizes | 1/2 in., 3/4 in., 1 in. |
| Hole Spacing | 2 in. centers for 1/2 in. tubing; 4 in. centers for 3/4 in. and 1 in. tubing |
| Product Length | 20.00 in. |
| Product Width | 1.86 in. |
| Product Height | 0.28 in. |
| Product Weight | 0.26 lb |
| Listings | UPC / IPC / IAPMO listed |
