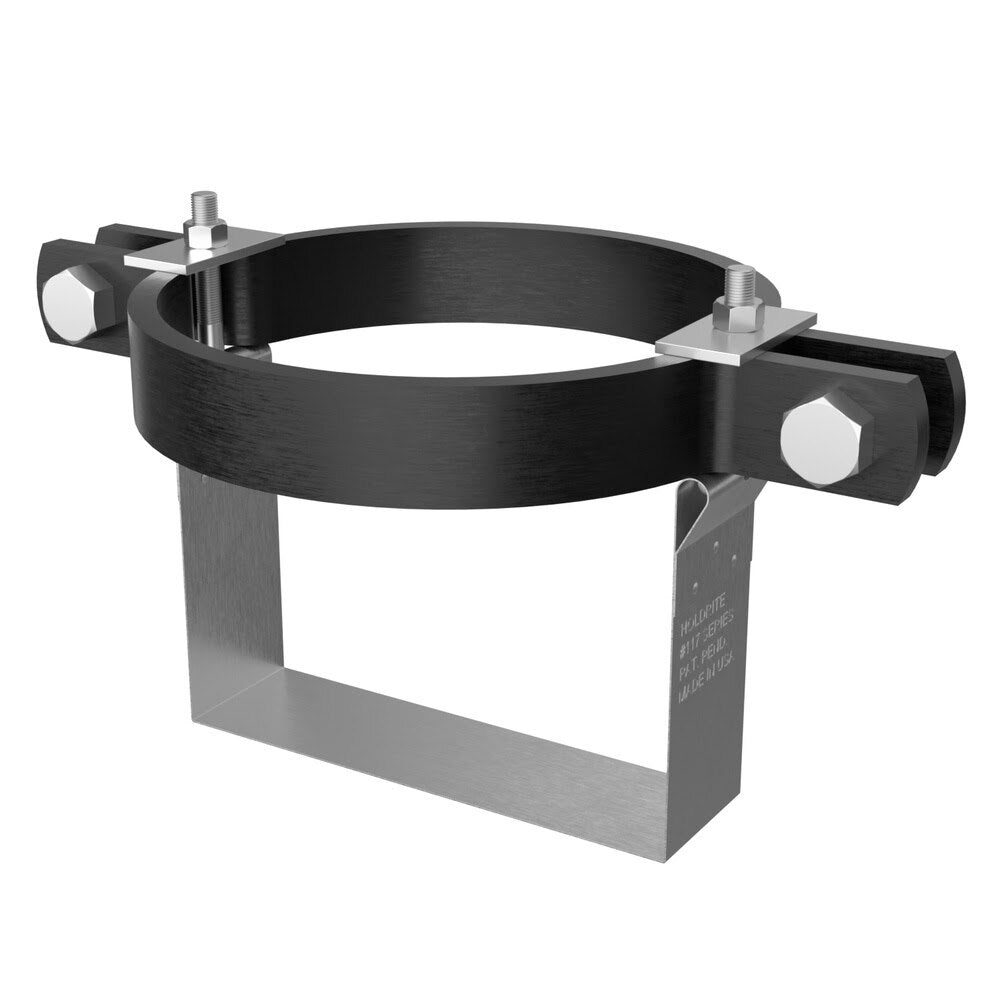

HoldRite 117-10BP Description
The HoldRite 117-10BP is a 10 in. no-hub blind plug restraint designed to reinforce blind plugs and caps in cast iron DWV installations. This large-diameter assembly uses a heavy-duty pipe clamp and galvanized steel strap design to help secure the adjoining piping during testing and installation.
HoldRite 117-10BP Includes
- (1) 10 in. No-Hub Blind Plug Restraint
HoldRite 117-10BP Features
- Designed to reinforce blind plugs and caps in no-hub cast iron installations
- Built for 10 in. DWV testing applications
- Uses a heavy-duty steel pipe clamp and strap system for large-diameter installations

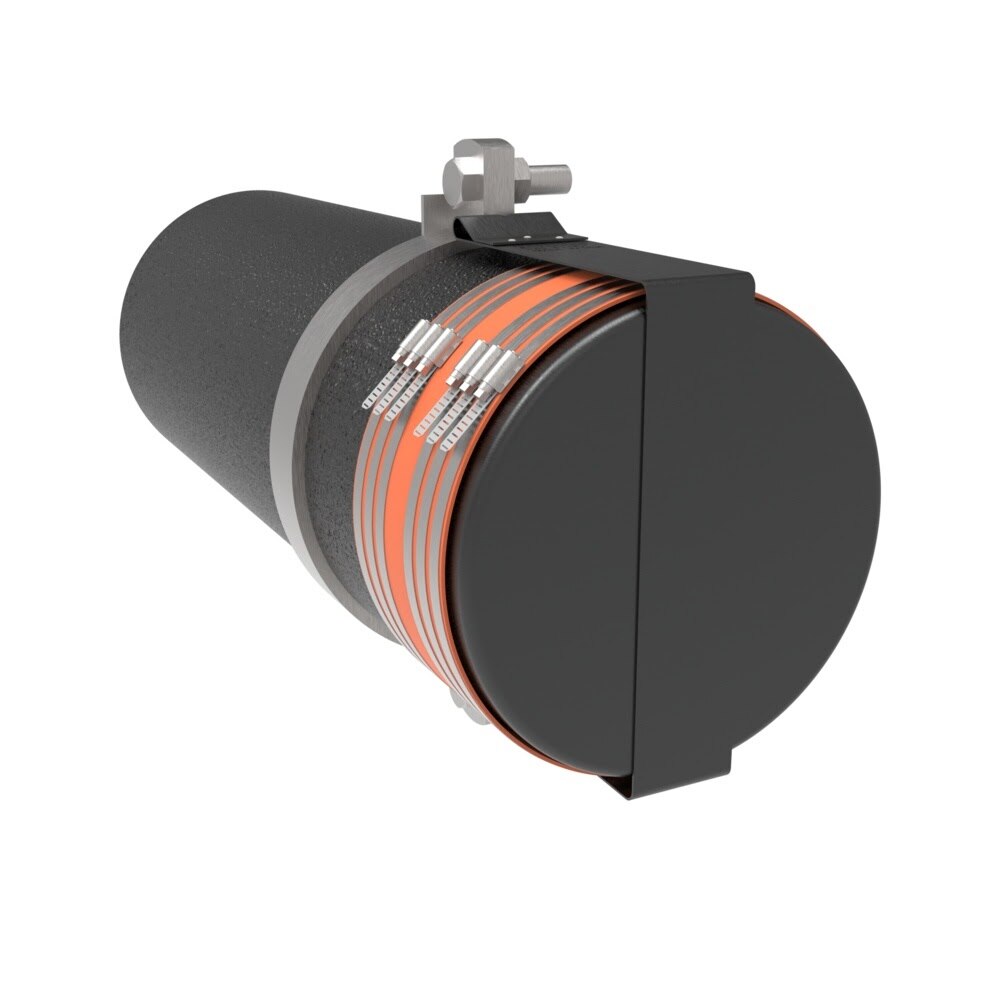

- Helps retain the plug onto adjoining piping when installed per manufacturer instructions
- Strap is made from 16 ga CRS galvanized steel
- Designed in accordance with CISPI Designation 301-18, 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-10BP Specifications
| Series | 117-BP |
| Product Type | No-Hub Blind Plug Restraint |
| Nominal Size | 10 in. |
| Application | Blind plug/cap restraint for no-hub cast iron installations |
| Strap Material | 16 ga CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Required Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Each Length | 30.25 in. |
| Each Width | 17.5 in. |
| Each Height | 3.5 in. |
| Each Shipping Weight | 25 lb. |
| Case Quantity | 2 |
Toolup Part # :
882123
