HoldRite 117-10S-G Description

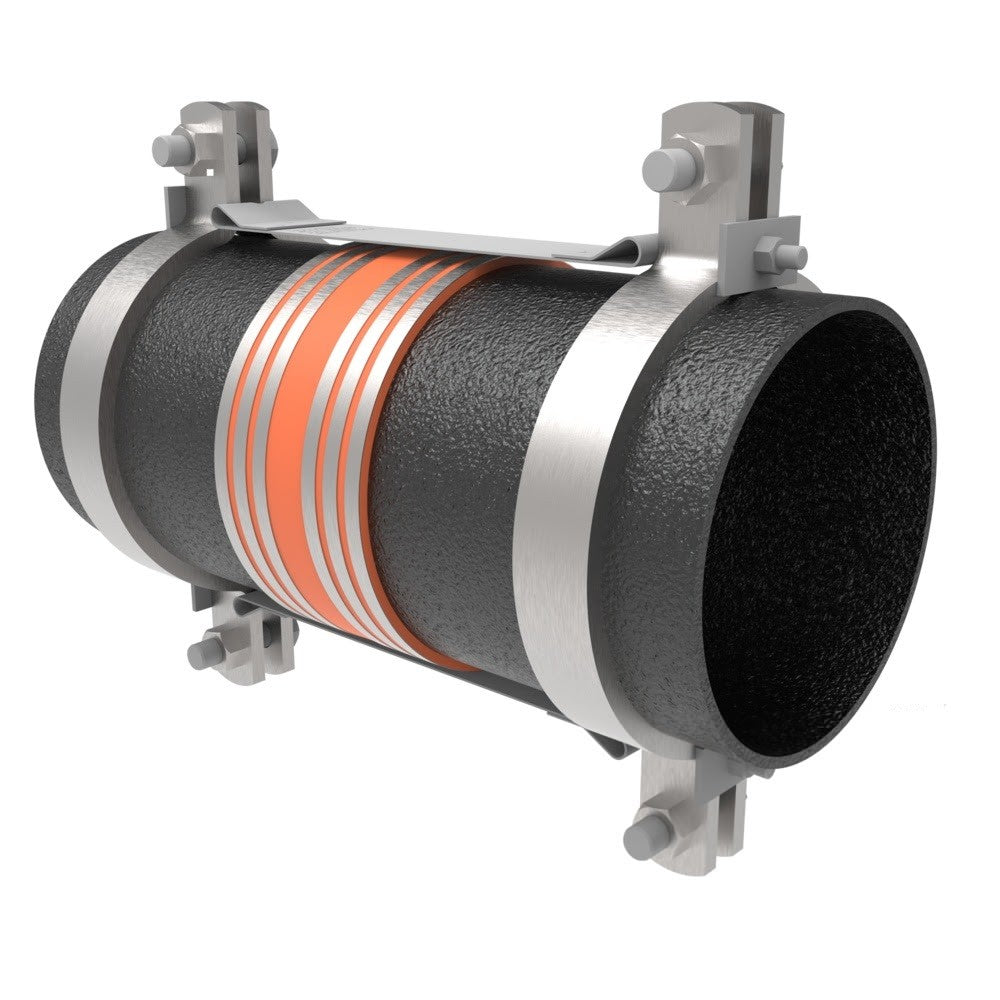

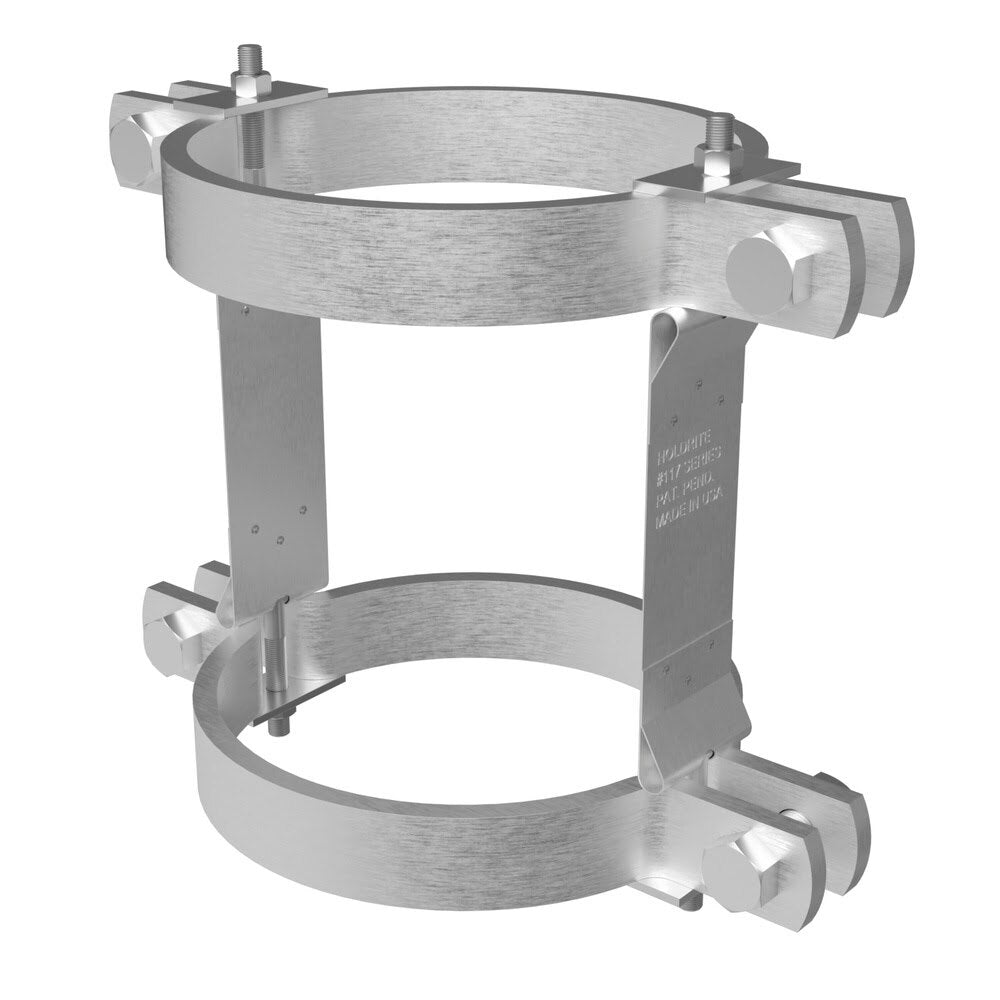

The HoldRite 117-10S-G is a 10 in. galvanized no-hub coupling restraint designed to reinforce straight couplings in no-hub cast iron DWV installations. Built with galvanized steel straps and heavy-duty steel pipe clamps, it helps retain adjoining piping sections and provides dependable joint reinforcement when installed according to applicable CISPI guidelines.
HoldRite 117-10S-G Includes
- (1) 10 in. No-Hub Coupling Restraint
- (2) Galvanized Steel Straps with T-bolts
HoldRite 117-10S-G Features
- Designed for 10 in. no-hub cast iron straight couplings
- Galvanized steel construction helps resist corrosion
- Uses heavy-duty steel pipe clamps for large-diameter installations
- Includes galvanized steel straps with T-bolts
- Reinforces adjoining piping sections in DWV installations
- Meets CISPI 301-18, 310-18, and 2006 CISPI Installation Handbook requirements when installed per instructions
- Achieves a safe thrust pressure rating equal to 50 ft. head of water when properly installed
- Requires 60 ft/lbs of torque on pipe clamp bolts for 10 in. to 15 in. sizes
HoldRite 117-10S-G Specifications
| Brand | HoldRite |
| Series | 117-S |
| Product Type | No-hub coupling restraint |
| Application | Straight couplings in no-hub cast iron DWV installations |
| Size | 10 in. |
| Finish | Galvanized |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty galvanized steel pipe clamp |
| Hardware Material | Standard |
| Torque Requirement | 60 ft/lbs on pipe clamp bolts |
| Pressure Rating | Equal to 50 ft. head of water pressure |
| Item Length (in) | 30.5 |
| Item Width (in) | 8.65 |
| Item Height (in) | 3.4 |
| Shipping Weight (lb) | 29.6 |
