HoldRite 117-10T Description

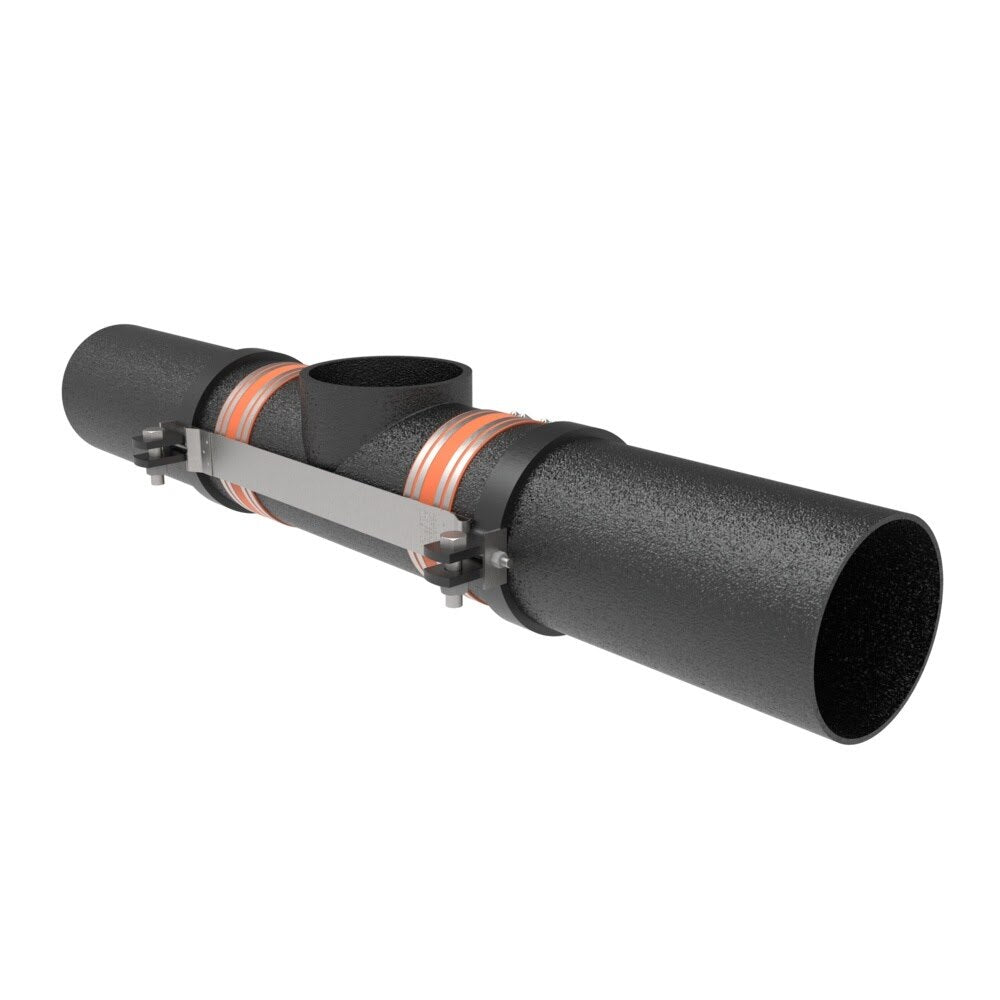

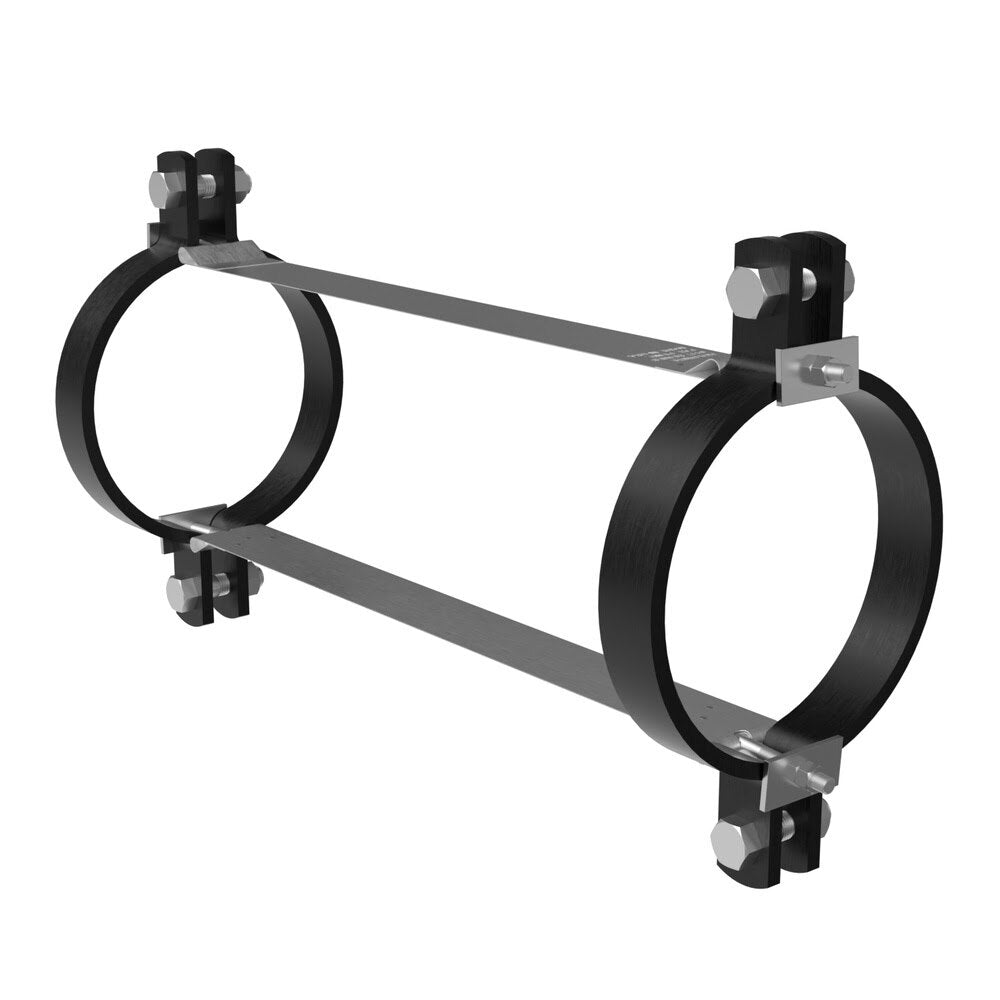

The HoldRite 117-10T 10 in. NoHub Test Tee Restraint is designed to reinforce no-hub cast iron test and cleanout tee installations. Built for large-diameter DWV applications, it uses heavy-duty pipe clamps and steel straps to help secure adjoining piping in accordance with applicable CISPI installation guidance.
HoldRite 117-10T Includes
- (1) 10 in. NoHub Test Tee Restraint
HoldRite 117-10T Features
- Designed to reinforce no-hub cast iron test and cleanout tee installations
- For 10 in. large-diameter DWV applications
- Uses heavy-duty steel pipe clamps and straps
- Helps secure adjoining piping at the tee connection
- Designed in accordance with U.S. cast iron soil pipe manufacturer installation guidance and CISPI references
- Pipe clamp bolts require 60 ft./lbs. of torque for the 10 in. size
HoldRite 117-10T Specifications
| Brand | HoldRite |
| Series | 117-T |
| Product Type | No-hub test tee fitting restraint |
| Nominal Size | 10 in. |
| Application | Reinforcing no-hub cast iron test/cleanout tee installations |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Required Clamp Bolt Torque | 60 ft./lbs. |
| Product Length | 29 in. |
| Product Width | 14 in. |
| Product Height | 3.25 in. |
| Shipping Weight | 31.9 lb |
Toolup Part # :
882097
