HoldRite 117-10T-G Description

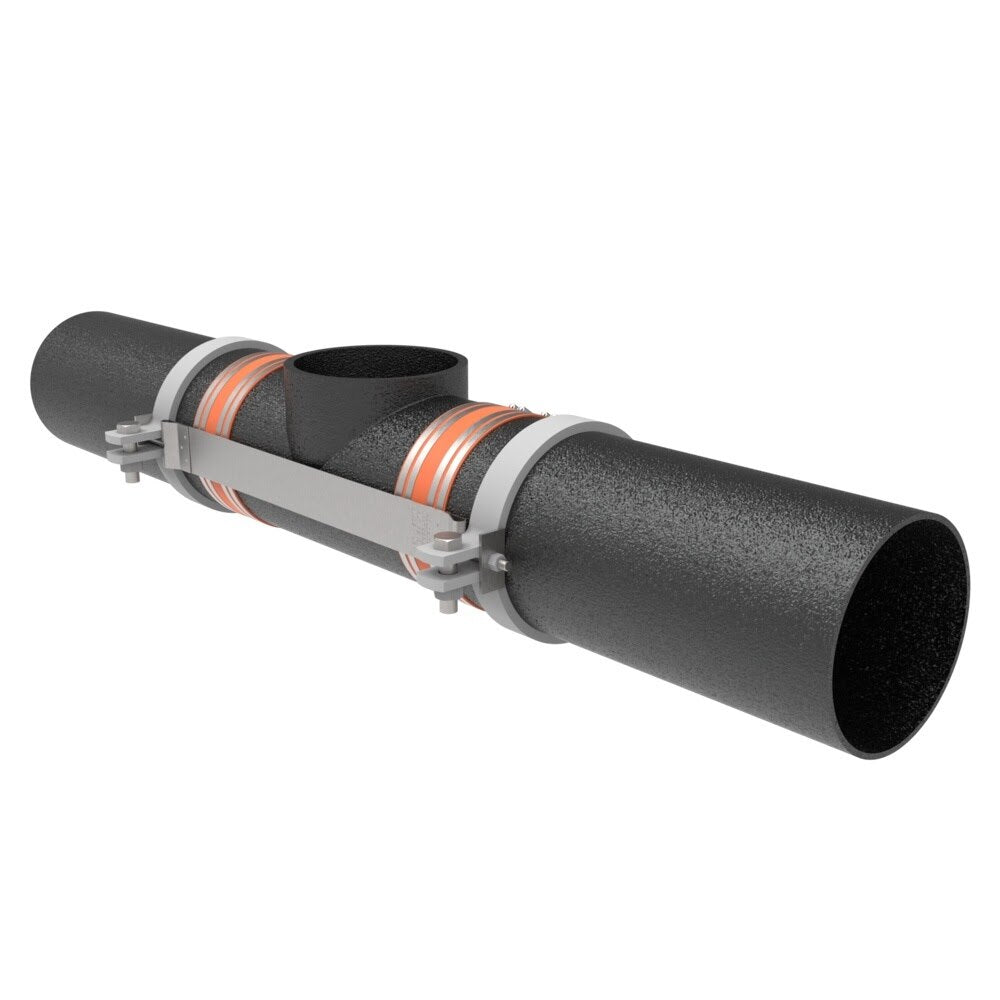

The HoldRite 117-10T-G is a 10 in. galvanized no-hub test tee fitting restraint designed to reinforce no-hub cast iron test and cleanout tee installations. Built for large-diameter applications, it uses heavy-duty clamps and steel straps to help secure adjoining piping in accordance with CISPI installation standards.
HoldRite 117-10T-G Includes

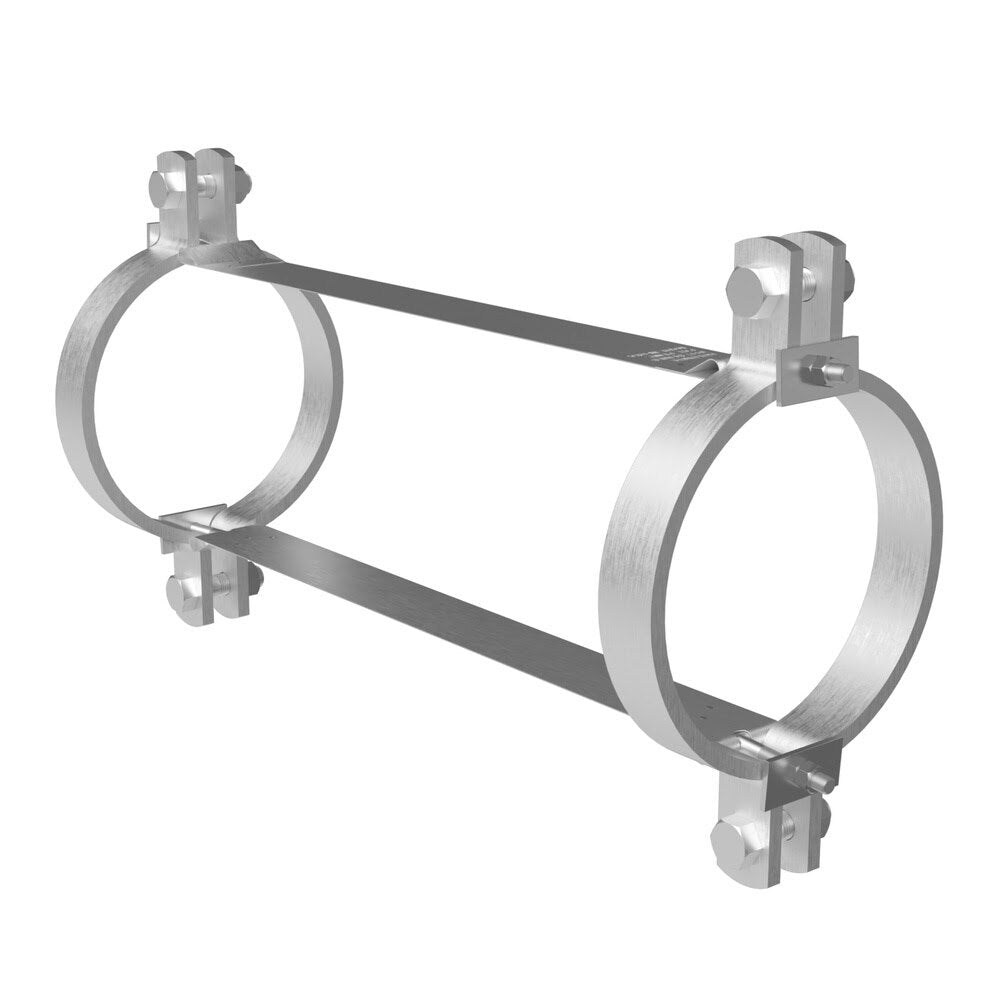

- (1) 10 in. Galvanized No-Hub Test Tee Fitting Restraint
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-10T-G Features
- Designed to reinforce no-hub cast iron test and cleanout tee installations
- Galvanized steel construction helps resist corrosion
- Sized for 10 in. no-hub fittings
- Uses heavy-duty steel pipe clamps and straps for large-diameter applications
- Helps retain adjoining fittings and piping in place
- Installs in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Requires 60 ft./lbs. torque on pipe clamp bolts for the 10 in. size
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed
HoldRite 117-10T-G Specifications
| Brand | HoldRite |
| Series | 117-T |
| Product Type | No-Hub Test Tee Fitting Restraint |
| Size | 10 in. |
| Finish | Galvanized |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Hardware Material | Standard |
| Compatible Pipe Type | No-hub cast iron |
| Application | Reinforcing test and cleanout tee installations |
| Torque Requirement | 60 ft./lbs. on pipe clamp bolts |
| Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Shipping Weight | 31.3 lb |
