HoldRite 117-10W-G Description

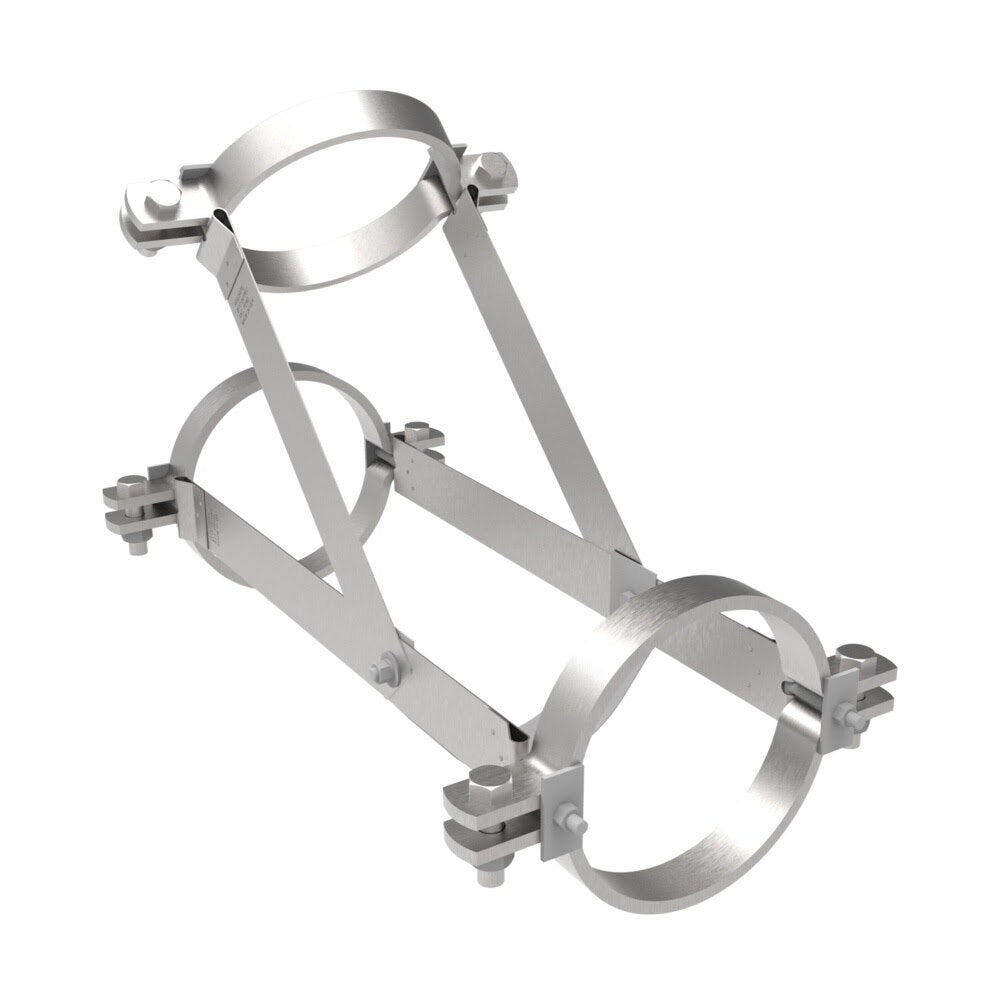

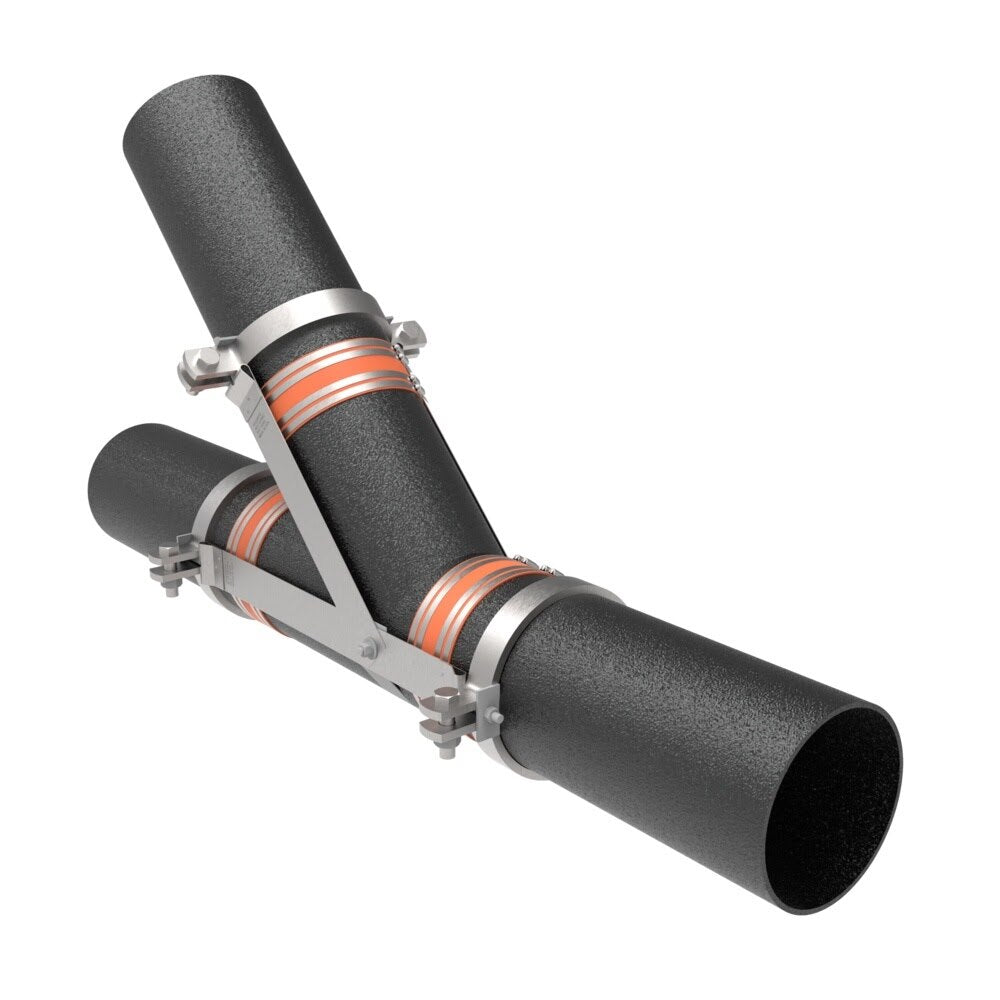

The HoldRite 117-W Series 10 in. galvanized no-hub wye fitting restraint is designed to reinforce no-hub cast iron DWV installations and help retain the wye fitting to adjoining piping in mid-span runs. It uses galvanized steel straps and heavy-duty pipe clamps for secure support when installed according to CISPI guidelines.
HoldRite 117-10W-G Includes
- (1) 10 in. Galvanized No-Hub Wye Fitting Restraint
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-10W-G Features
- Designed to reinforce 10 in. no-hub cast iron wye fittings
- Helps retain the fitting to adjoining piping in mid-span runs
- Galvanized steel construction for durable DWV installations
- Uses heavy-duty steel pipe clamps and straps on large-diameter applications
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Requires 60 ft./lbs. of torque on pipe clamp bolts for 10 in. to 15 in. sizes
HoldRite 117-10W-G Specifications
| Series | 117-W |
| Product Type | No-Hub Wye Fitting Restraint |
| Nominal Size | 10 in. |
| Finish | Galvanized |
| Application | DWV cast iron no-hub installations |
| Strap Material | 16 ga CRS galvanized steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Hardware Material | Standard |
| Item Length | 30.25 in. |
| Item Width | 17.5 in. |
| Item Height | 3.5 in. |
| Shipping Weight | 45 lb |
| UPC | 671119803341 |
