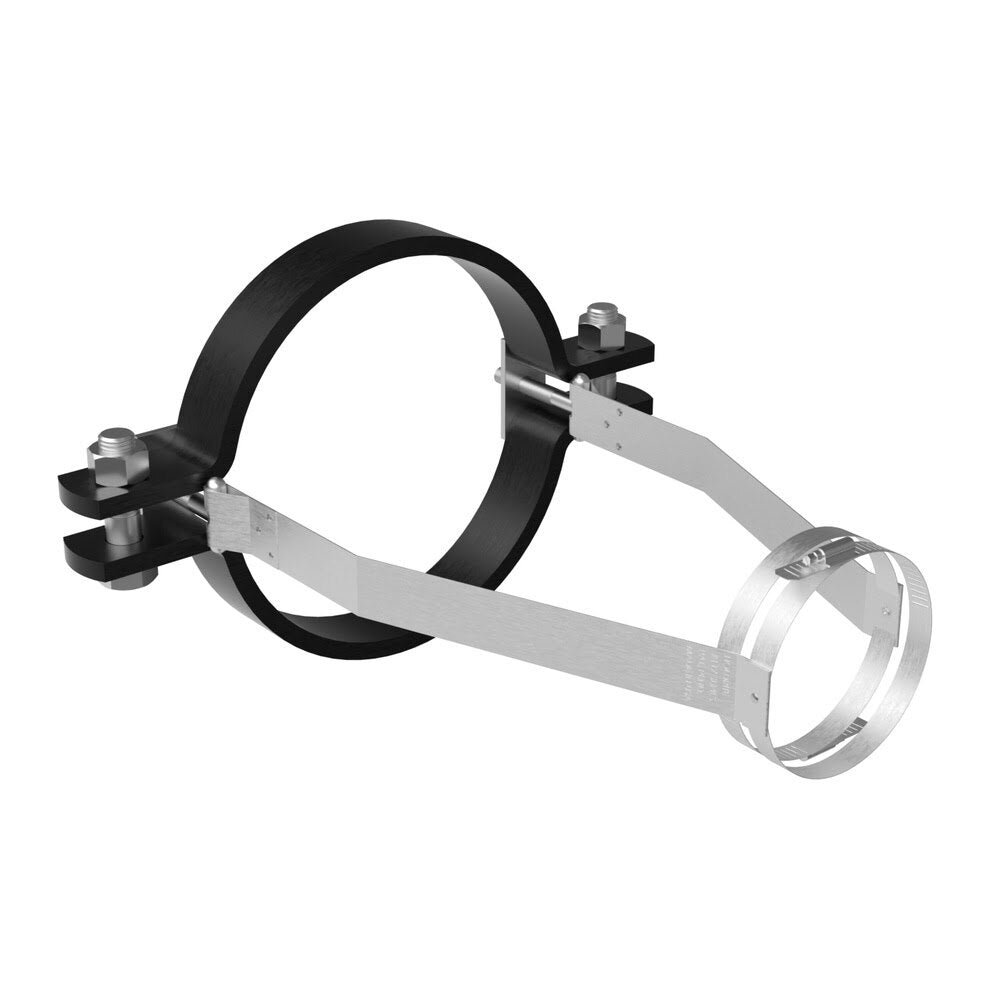

HoldRite 117-10x4R Description

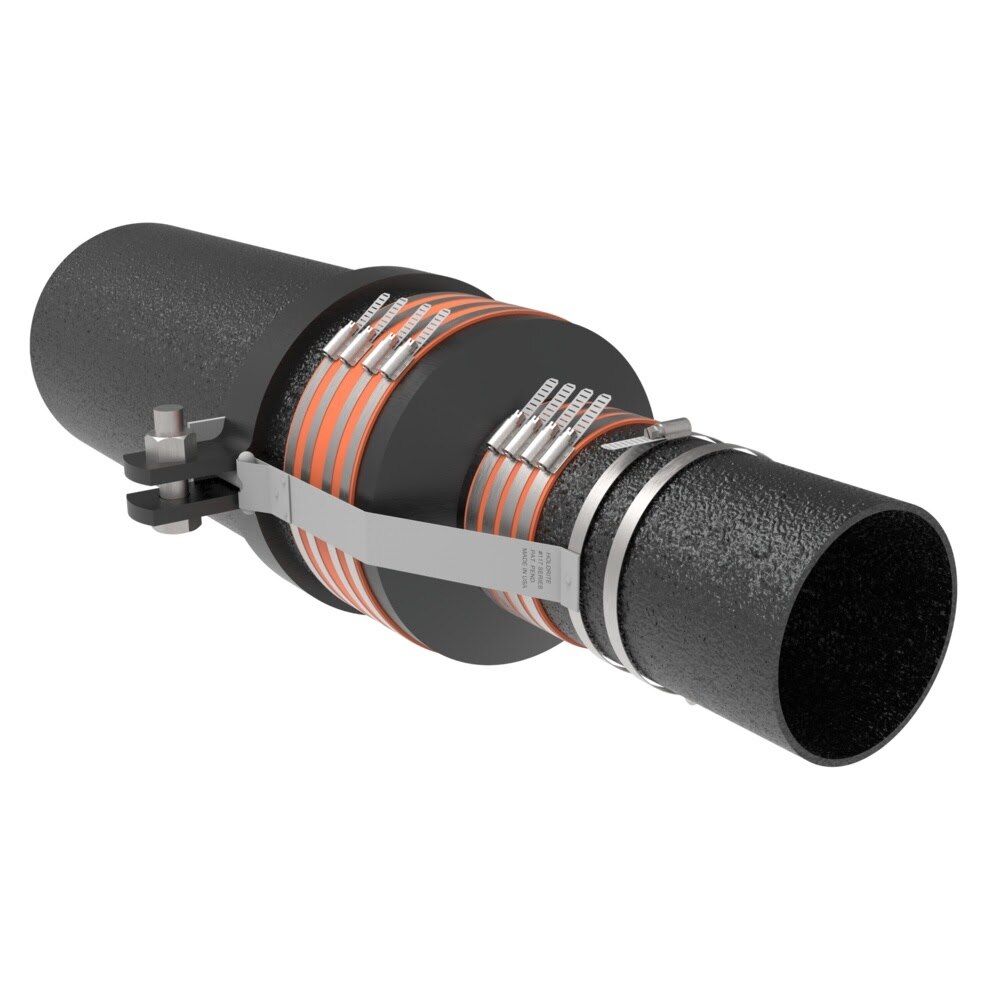

The HoldRite 117-10x4R 117-R Series restraint is designed to reinforce 10 x 4 in. no-hub cast iron short reducer fittings in DWV systems. For large-diameter applications, it uses galvanized steel straps and a heavy-duty pipe clamp to help retain the reducer fitting to adjoining piping and achieve a safe thrust pressure rating equal to 50 ft. head of water when installed correctly.
HoldRite 117-10x4R Includes
- (1) 10 x 4 in. No-Hub Short Reducer Fitting Restraint
HoldRite 117-10x4R Features
- Designed for 10 x 4 in. no-hub short reducer fittings
- Reinforces no-hub cast iron reducer installations in DWV systems
- Uses galvanized steel straps for large-diameter applications
- Heavy-duty steel pipe clamp helps retain the reducer to adjoining piping
- Achieves a safe thrust pressure rating equal to 50 ft. head of water when properly installed
- Requires 60 ft/lbs torque on pipe clamp bolts for 10 in. to 15 in. sizes
- Intended for installation in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-10x4R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 10 x 4 |
| Application | No-hub cast iron fitting reducers |
| System Type | DWV |
| Strap Material | 24GA CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Minimum Pipe Clamp Bolt Torque | 60 ft/lbs |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Item Length | 20.4 in. |
| Item Width | 15.9 in. |
| Item Height | 10.8 in. |
| Shipping Weight | 15 lb |
Toolup Part # :
882184
