HoldRite 117-10x6R Description

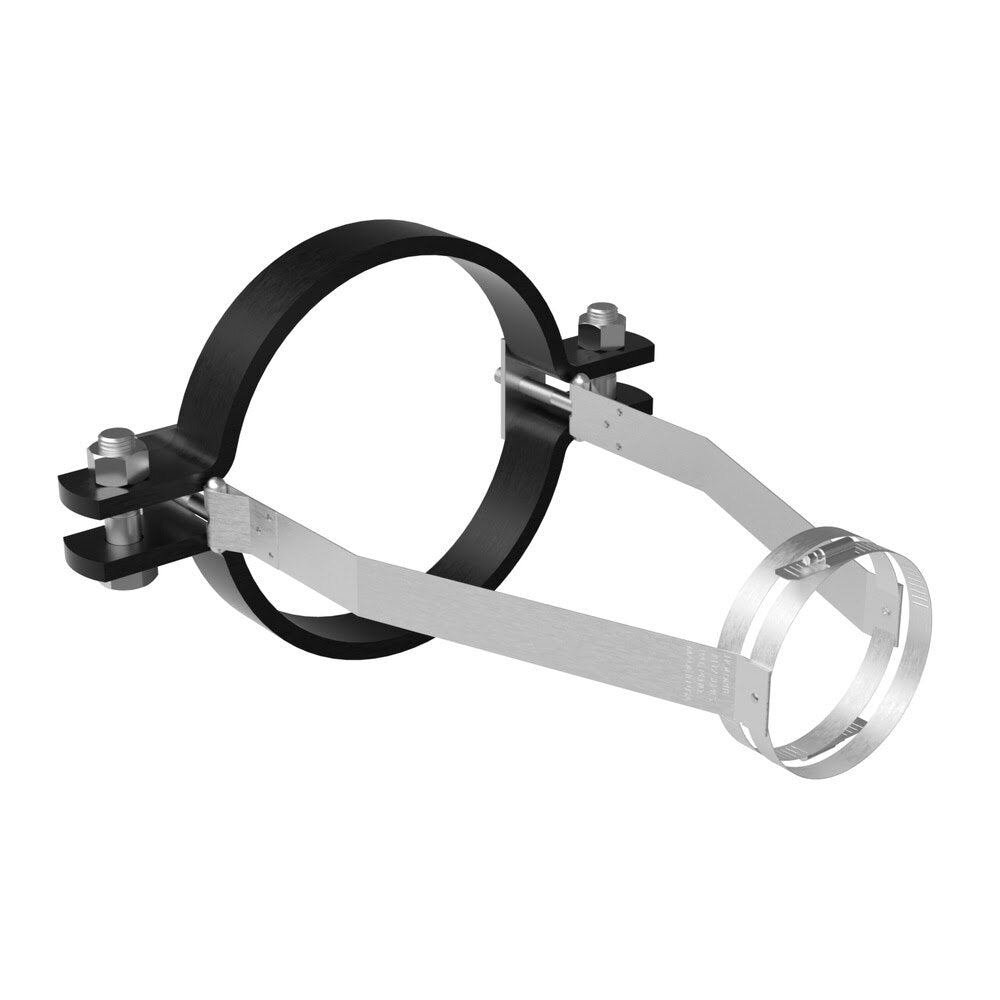

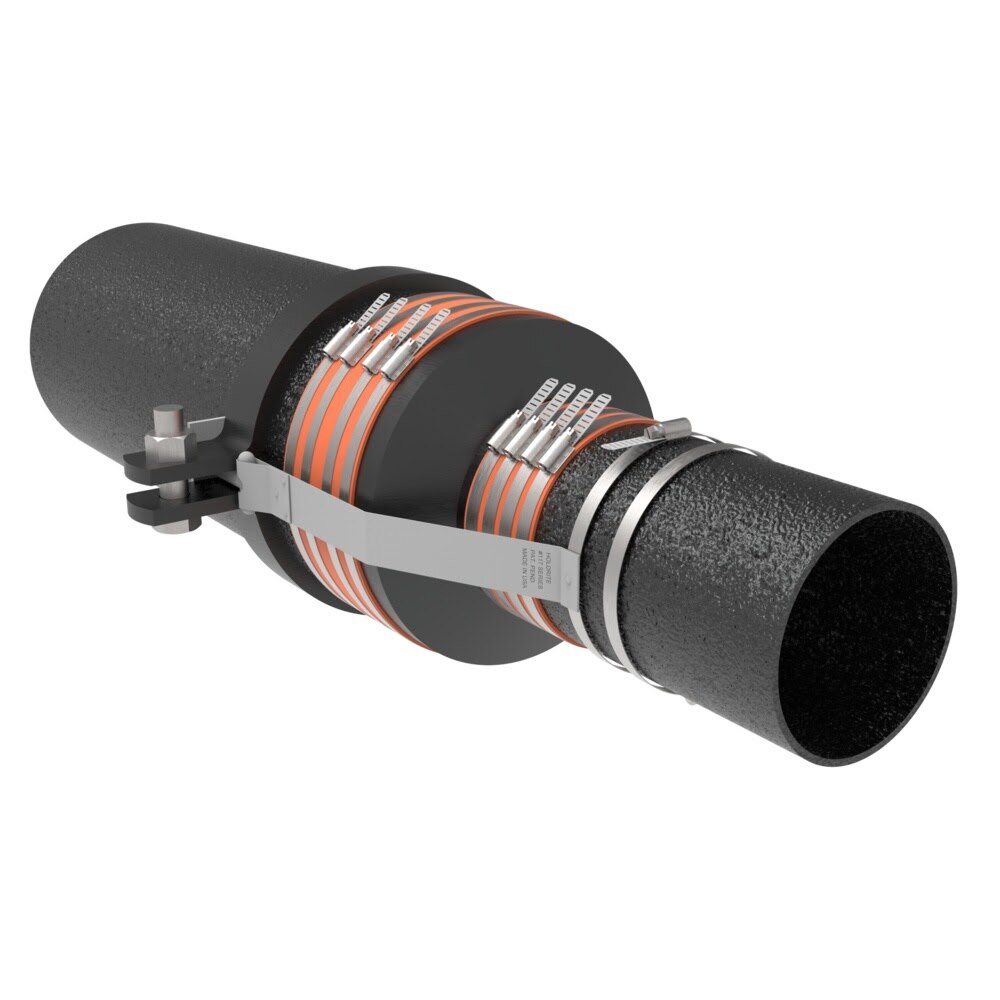

The HoldRite 117-10x6R is a 10 x 6 in. 117-R series no-hub short reducer fitting restraint for cast iron DWV systems. It uses a 24 ga cold rolled galvanized steel strap with a heavy-duty pipe clamp to reinforce reducer installations and, when installed correctly, provides a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-10x6R Includes
- (1) 10 x 6 in. No-Hub Short Reducer Fitting Restraint
HoldRite 117-10x6R Features
- Designed to reinforce no-hub cast iron reducer installations
- Helps retain reducer fittings onto adjoining piping
- 24 ga cold rolled galvanized steel strap construction
- Uses a heavy-duty black or galvanized steel pipe clamp
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Meets CISPI 301-18, 310-18, and 2006 CISPI Installation Handbook requirements
- Uses standard hardware
- For 10 in. to 15 in. sizes, pipe clamp bolts require 60 ft/lbs torque
HoldRite 117-10x6R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-hub short reducer fitting restraint |
| Size | 10 x 6 in. |
| Application | No-hub cast iron fitting reducers in DWV systems |
| Strap Material | 24 ga cold rolled galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Pipe Clamp Bolt Torque | 60 ft/lbs |
| Length | 19 in. |
| Width | 10 in. |
| Height | 10 in. |
| Shipping Weight | 15.05 lb |
| Case Quantity | 2 |
Toolup Part # :
882180
