HoldRite 117-10x6W Description

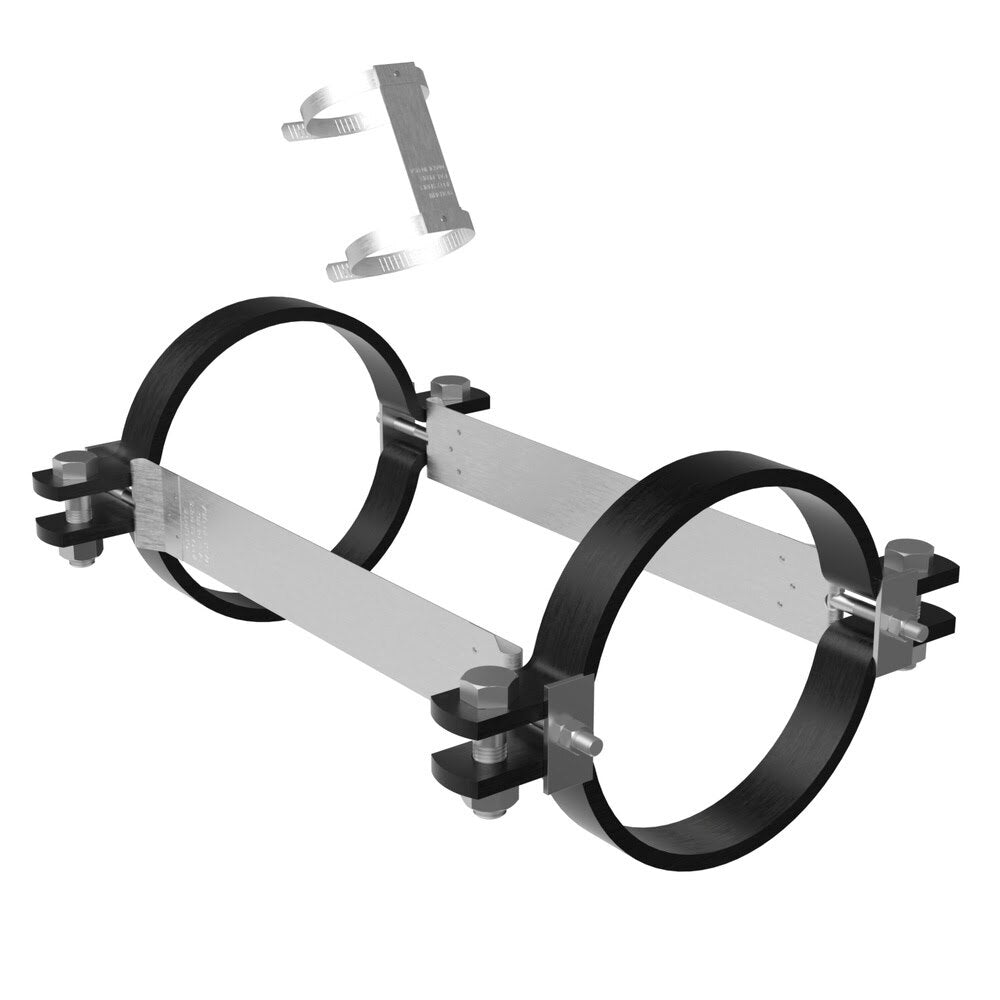

The HoldRite 117-10x6W No-Hub Wye Restraint is designed to reinforce 10 in. x 6 in. no-hub cast iron wye installations. Built with galvanized steel straps and heavy-duty pipe clamps, it helps retain the fitting to adjoining piping in mid-span runs and provides dependable restraint when installed correctly.
HoldRite 117-10x6W Includes
- (1) 10 in. x 6 in. No-Hub Wye Restraint
HoldRite 117-10x6W Features
- Designed for 10 in. x 6 in. no-hub wye fittings
- Reinforces no-hub cast iron installations

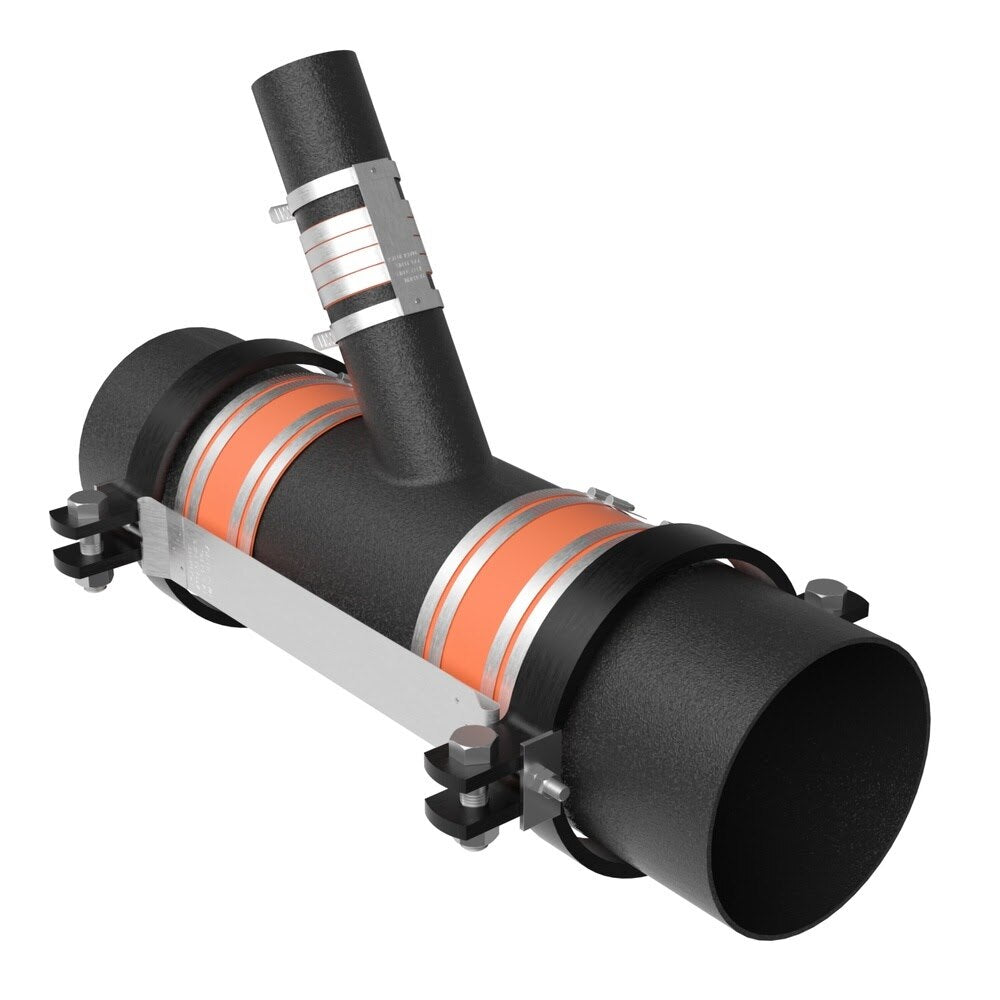

- Retains the wye fitting onto adjoining piping in mid-span runs
- Uses heavy-duty steel pipe clamps and straps for large-diameter applications
- Constructed with 16-gauge cold-rolled galvanized steel straps
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Requires 60 ft./lbs. torque on pipe clamp bolts for 10 in. to 15 in. sizes
HoldRite 117-10x6W Specifications
| Brand | HoldRite |
| Series | 117-W |
| Product Type | No-Hub Wye Restraint |
| Size | 10 in. x 6 in. |
| Application | No-hub cast iron wye fitting restraint |
| Installation Location | Mid-span runs |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Product Length (in) | 20.25 |
| Product Width (in) | 16 |
| Product Height (in) | 10.75 |
| Product Weight (lbs) | 32 |
