HoldRite 117-10x8R Description

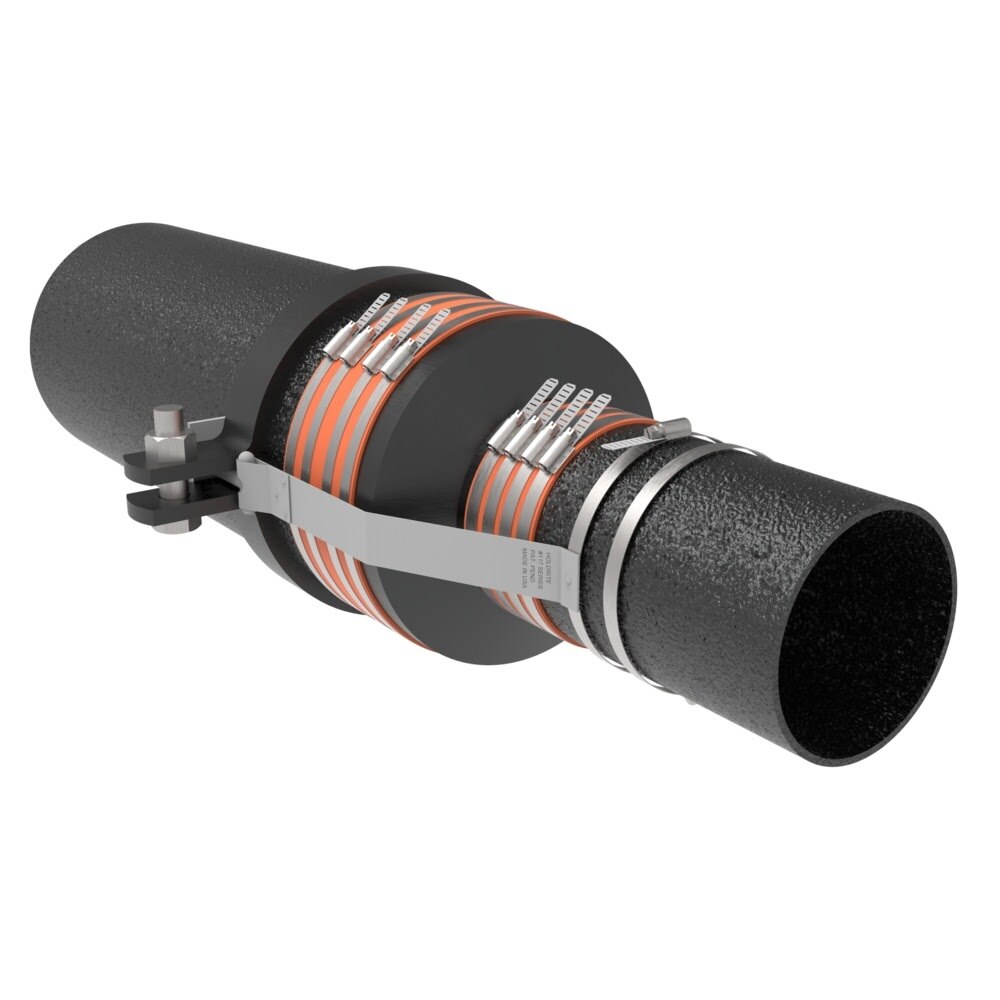

The HoldRite 117-10x8R is a 10 in. x 8 in. no-hub short reducer fitting restraint designed to reinforce cast iron reducer installations in DWV systems. It helps retain the reducer fitting to adjoining piping and supports compliant installation when used according to manufacturer instructions.
HoldRite 117-10x8R Includes
- (1) 10 in. x 8 in. No-Hub Short Reducer Fitting Restraint
HoldRite 117-10x8R Features
- Designed for 10 in. x 8 in. no-hub short reducer applications
- Reinforces cast iron reducer fittings in DWV systems
- Helps retain the reducer fitting to adjoining piping
- Part of the HoldRite 117-R reduce series

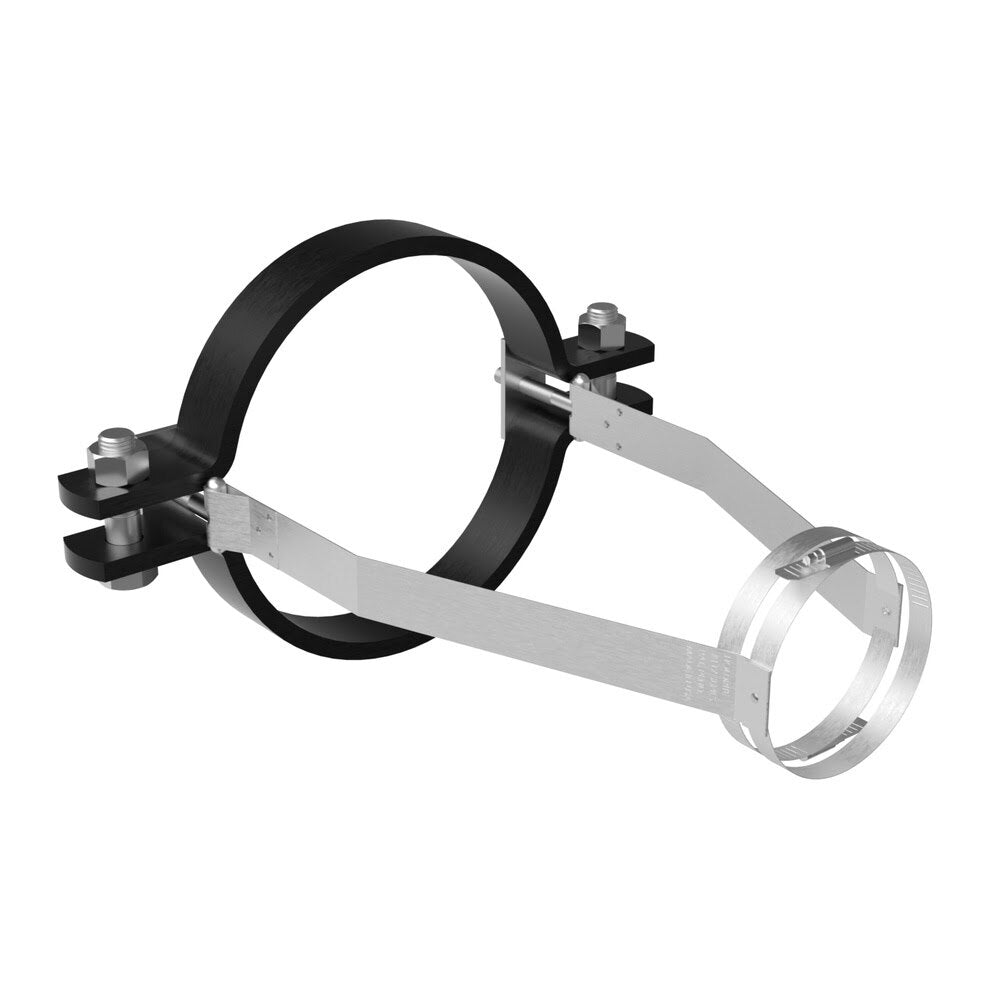

- Large-size design uses heavy-duty pipe clamp and strap construction
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed
- Pipe clamp bolts for 10 in. through 15 in. sizes require 60 ft./lbs. of torque
HoldRite 117-10x8R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 10 in. x 8 in. |
| Application | DWV no-hub cast iron reducer installations |
| SAP Description | Restraint Strap, Reduce Series |
| Each Length (in) | 19 |
| Each Width (in) | 10.5 |
| Each Height (in) | 10 |
| Each Shipping Weight (lb) | 15 |
| Case Quantity | 2 |
| Case Length (in) | 20.4 |
| Case Width (in) | 15.8 |
| Case Height (in) | 15.8 |
| Case Weight (lb) | 30 |
| Minimum Order Quantity | 1 |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Thrust Pressure Rating | 50 ft. head of water pressure |
