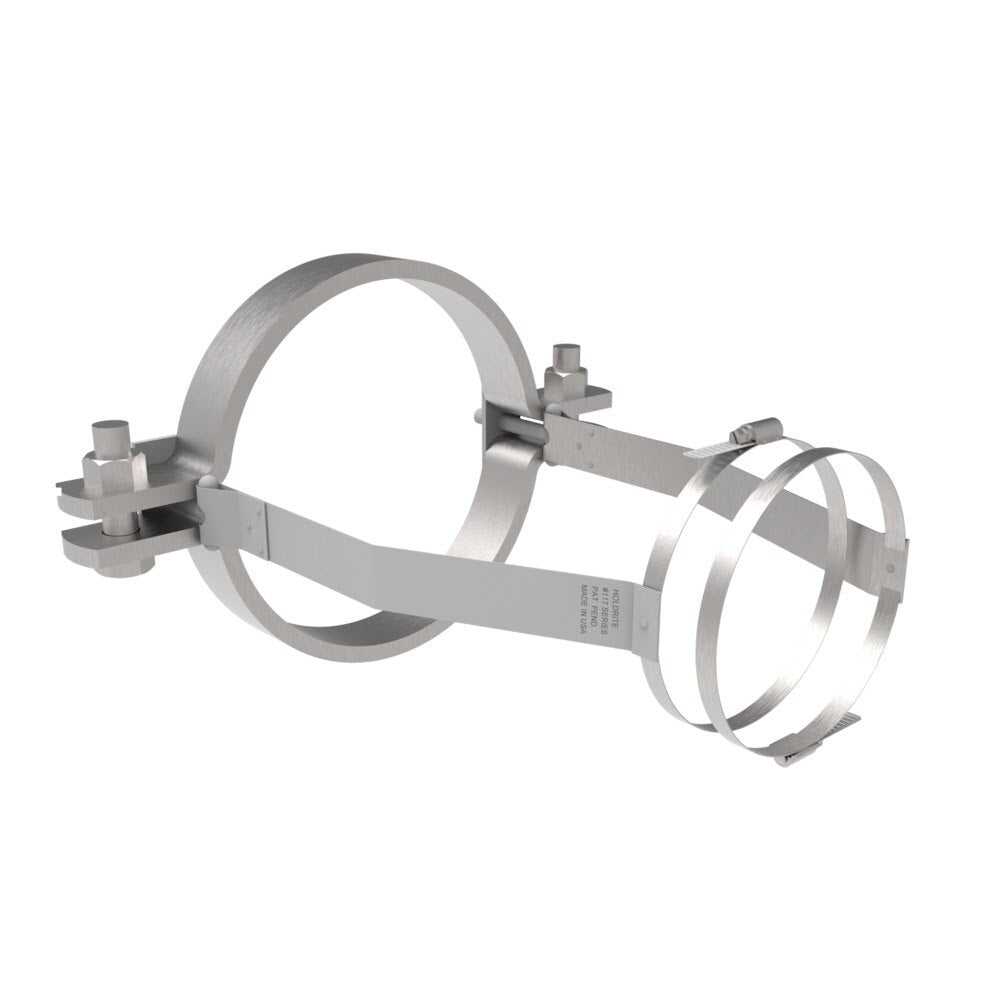

HoldRite 117-10x8R-G Description

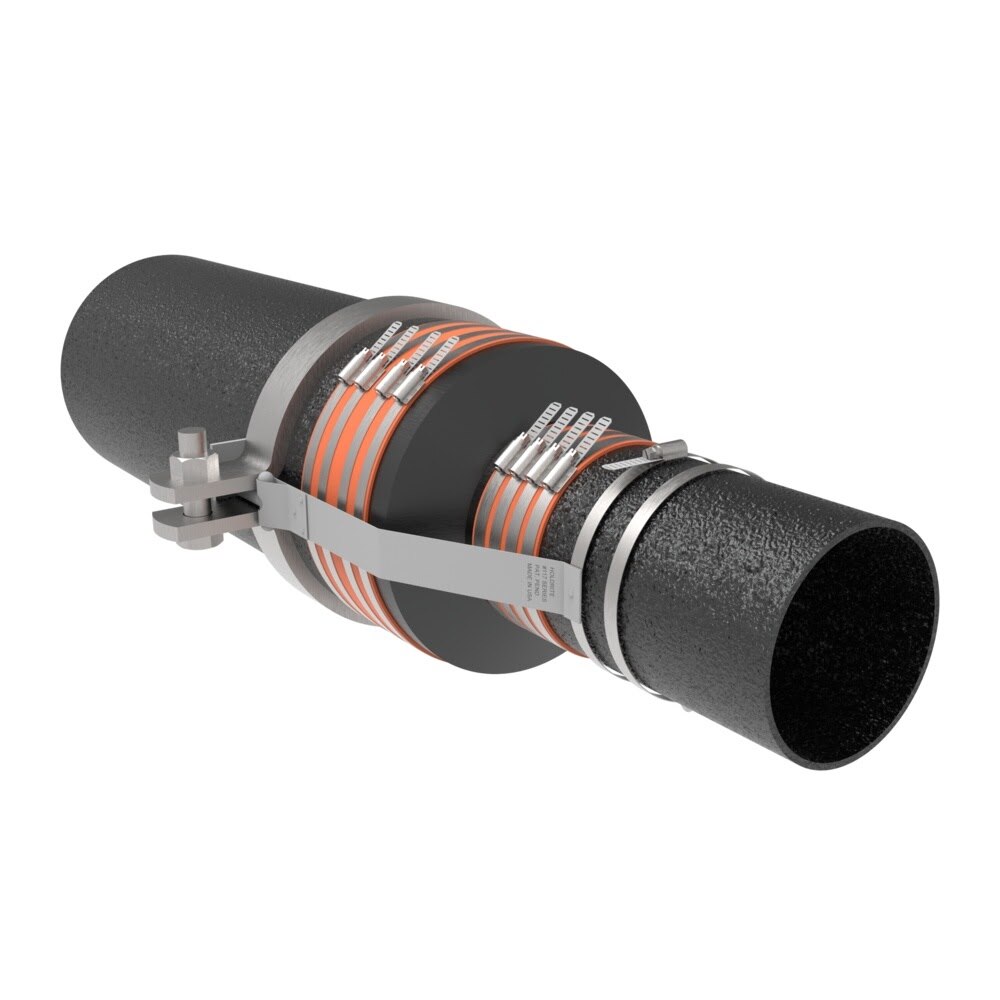

The HoldRite 117-10x8R-G is a 10 x 8 in. galvanized no-hub short reducer fitting restraint designed for DWV cast iron installations. It reinforces reducer fittings, helps retain them to adjoining piping, and is built for large-diameter applications using heavy-duty clamp and strap components.
HoldRite 117-10x8R-G Includes
- (1) 10 x 8 in. No-Hub Short Reducer Fitting Restraint
- (2) Galvanized steel straps with T-bolts
- (1) Heavy-duty pipe clamp assembly
HoldRite 117-10x8R-G Features
- Designed for 10 x 8 in. no-hub cast iron short reducer installations
- Galvanized steel construction for DWV applications
- Reinforces reducer fittings and retains them to adjoining piping
- Large-size design uses heavy-duty clamp and strap components
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Requires 60 ft./lbs. torque on pipe clamp bolts for 10 in. to 15 in. sizes
HoldRite 117-10x8R-G Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Fitting Restraint |
| Application | Short reducer cast iron fitting installations |
| Size | 10 x 8 |
| Finish | Galvanized |
| Strap Material | 24GA CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Length | 19 in. |
| Width | 10 in. |
| Height | 7 in. |
| Shipping Weight | 15.25 lb |
| Torque Requirement | 60 ft./lbs. on pipe clamp bolts |
| Thrust Pressure Rating | 50 ft. head of water pressure |
