HoldRite 117-10x8W-G Description

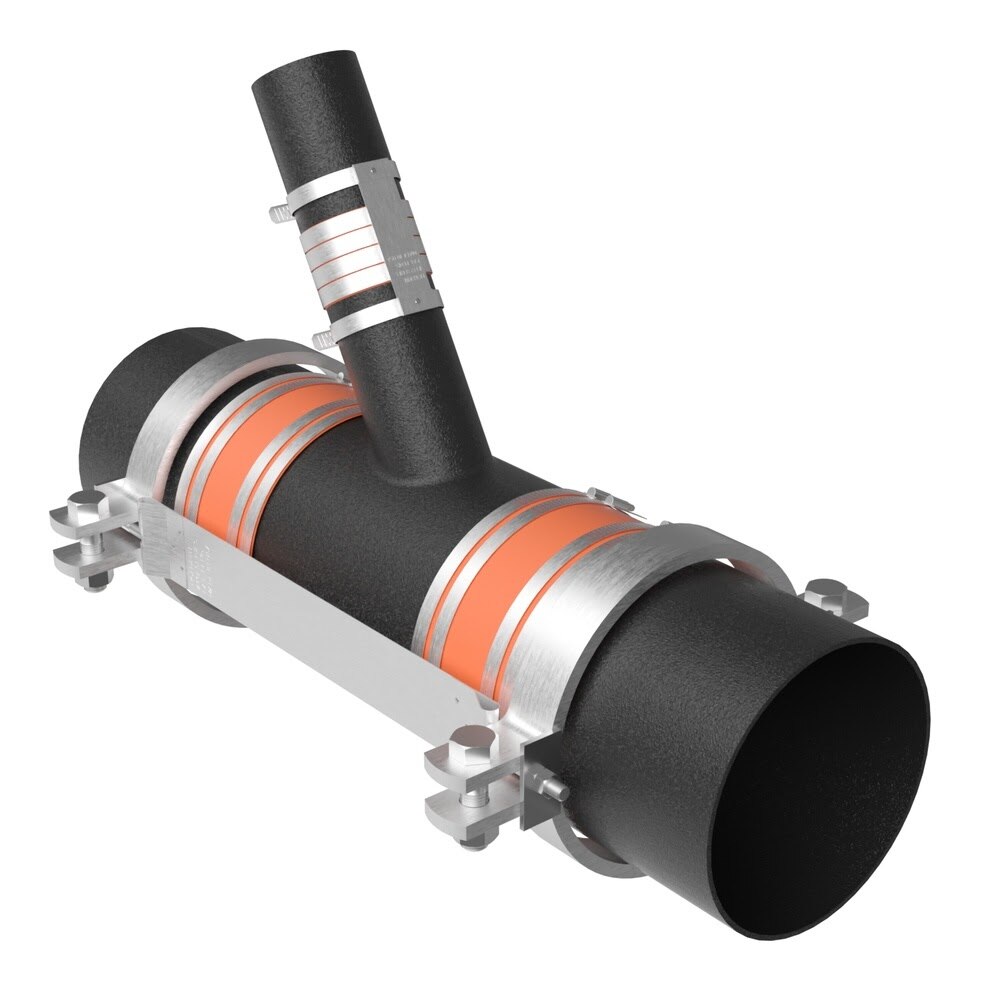

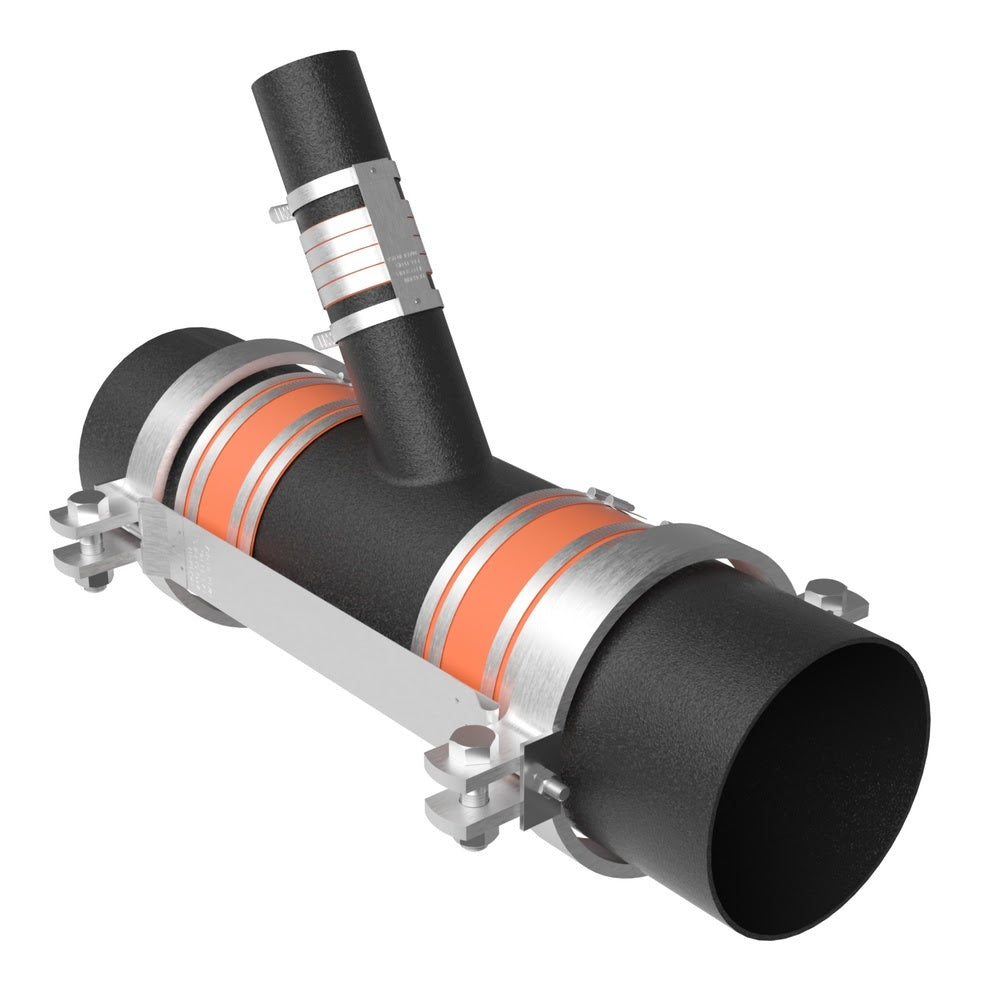

The HoldRite 117-W Series 10 x 8 in. no-hub wye fitting restraint is designed to reinforce no-hub cast iron installations and secure the wye fitting to adjoining piping in mid-span runs. Its galvanized steel construction and heavy-duty clamp design provide dependable restraint and achieve a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly.
HoldRite 117-10x8W-G Includes

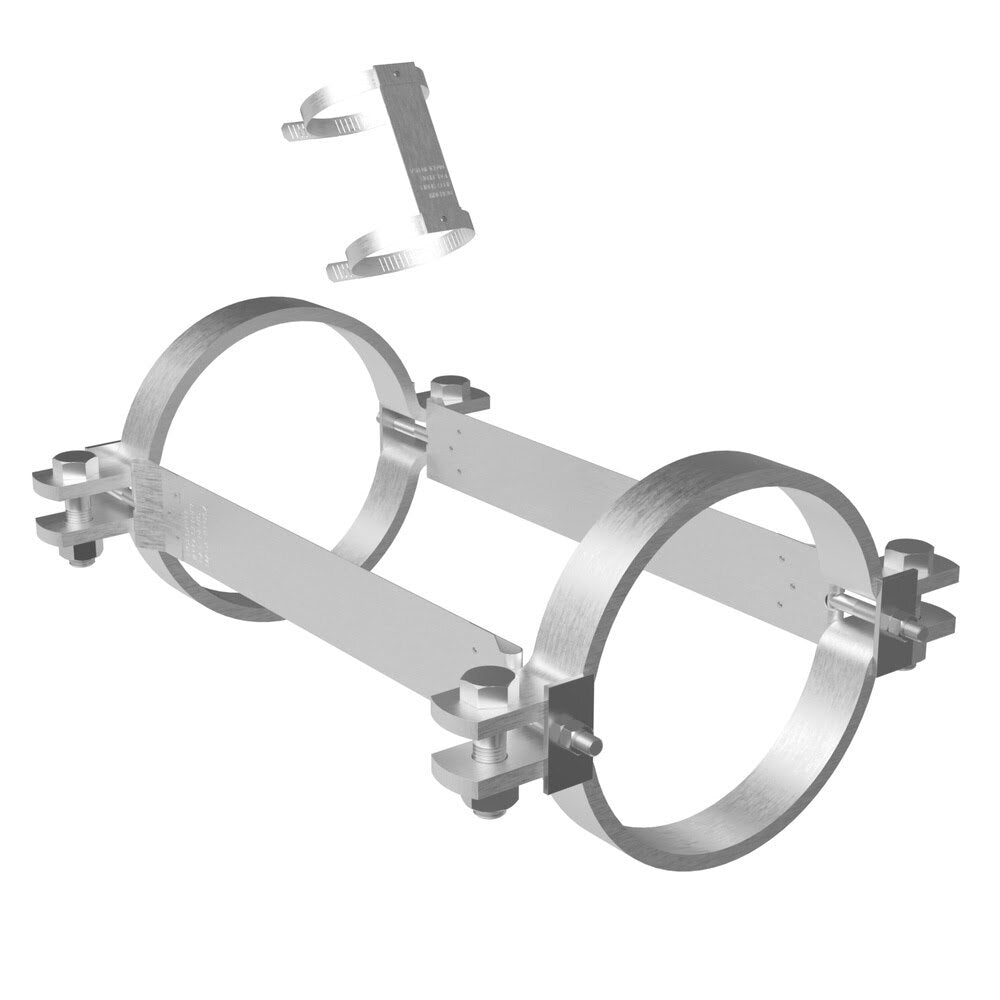

- (1) 10 x 8 in. No-Hub Wye Fitting Restraint
- (2) Galvanized steel straps with T-bolts
HoldRite 117-10x8W-G Features
- Designed to reinforce no-hub cast iron installations
- Retains the wye fitting onto adjoining piping in mid-span runs
- Galvanized steel construction helps resist corrosion
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Built for large-diameter applications with heavy-duty steel pipe clamps and straps
- Installs in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-10x8W-G Specifications
| Brand | HoldRite |
| Series | 117-W |
| Product Type | No-Hub Wye Fitting Restraint |
| Size | 10 x 8 in. |
| Finish | Galvanized |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Hardware Material | Standard |
| Application | No-hub cast iron installations |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Product Length | 20.5 in. |
| Product Width | 16 in. |
| Product Height | 11 in. |
| Shipping Weight | 32.6 lb |
