HoldRite 117-12BP Description

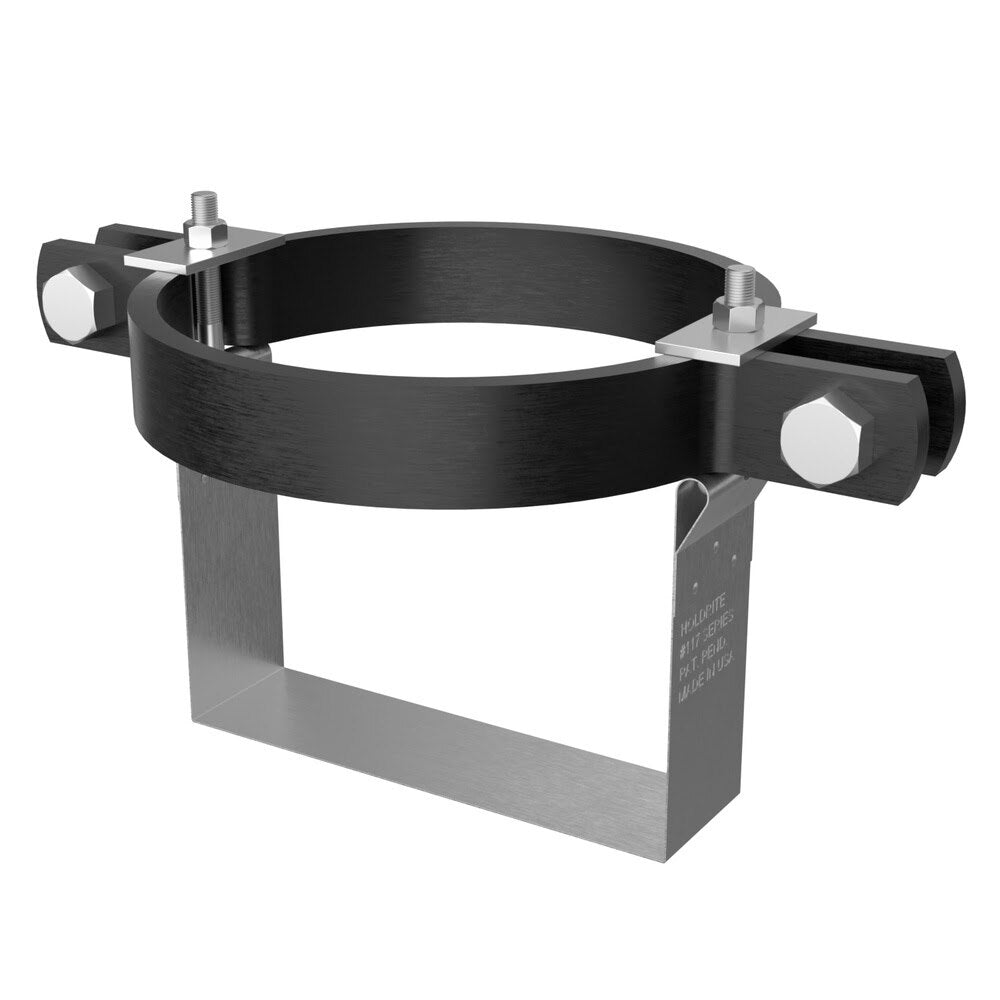

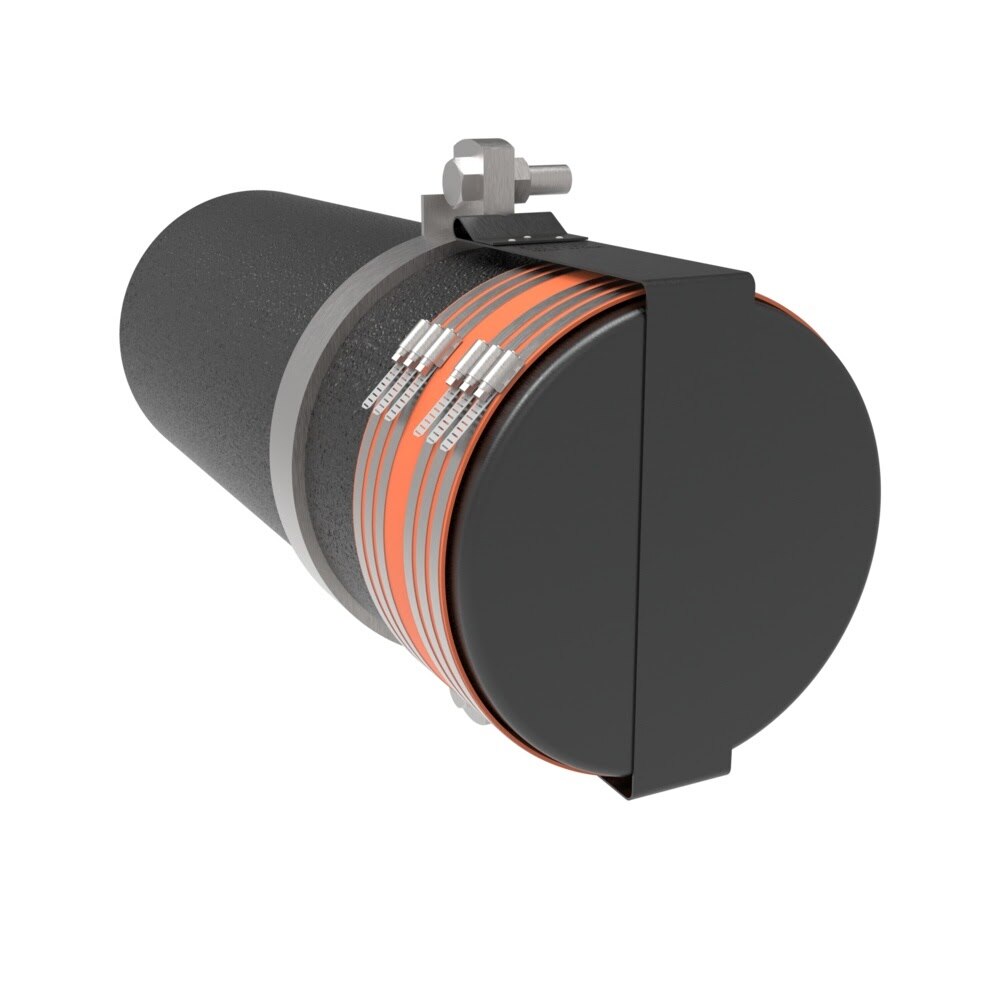

The HoldRite 117-12BP is a 12 in. no-hub blind plug restraint designed to reinforce blind plugs and caps in no-hub cast iron DWV installations. Built for large-diameter applications, it uses galvanized steel straps and a heavy-duty steel pipe clamp to help provide secure retention during DWV testing.
HoldRite 117-12BP Includes
- (1) 12 in. No-Hub Blind Plug Restraint
HoldRite 117-12BP Features
- Designed to reinforce blind plugs and caps in no-hub cast iron DWV installations
- Sized for 12 in. applications
- Uses a heavy-duty steel pipe clamp and restraint straps for large-diameter installations
- Constructed with 16-gauge cold-rolled galvanized steel straps
- Requires 60 ft./lbs. torque on pipe clamp bolts for 10 in. to 15 in. sizes
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
HoldRite 117-12BP Specifications
| Brand | HoldRite |
| Series | 117-BP |
| Product Type | No-Hub Blind Plug Restraint |
| Application | DWV Testing |
| Size | 12 in. |
| Compatible System | No-hub cast iron installations |
| Strap Material | 16GA, CRS, Galvanized Steel |
| Clamp Material | Heavy Duty Black or Galvanized Steel Pipe Clamp |
| Hardware Material | Standard |
| Required Torque | 60 ft./lbs. on pipe clamp bolts |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Product Length (in) | 30.5 |
| Product Width (in) | 17.5 |
| Product Height (in) | 3.4 |
| Shipping Weight (lb) | 17.35 |
Toolup Part # :
882150
