HoldRite 117-12BP-G Description

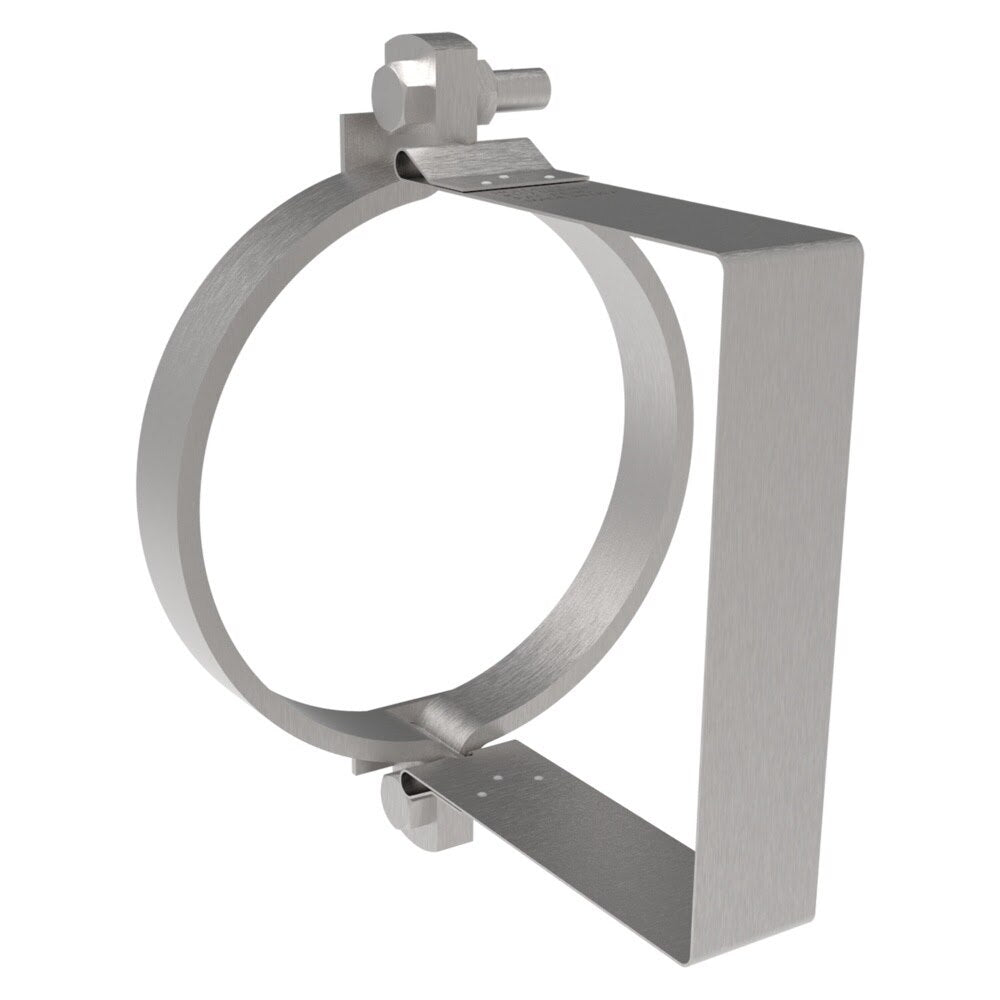

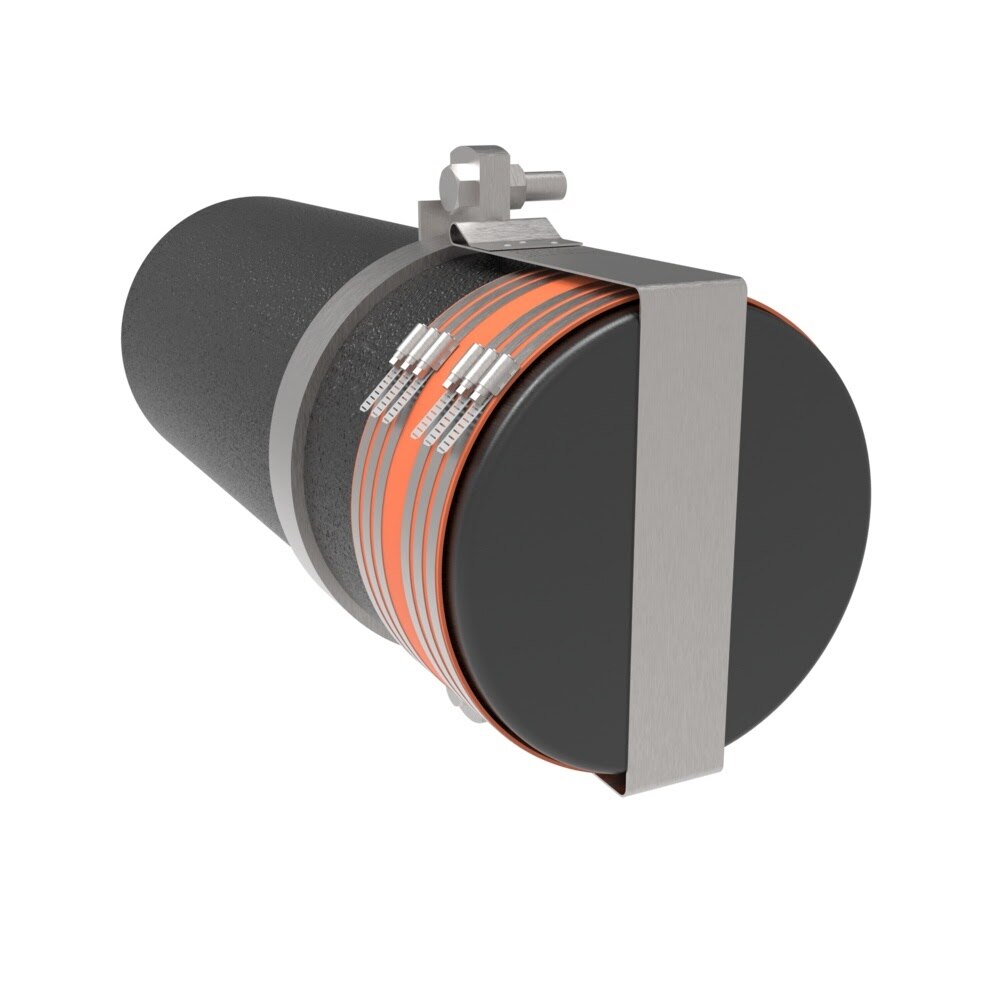

The HoldRite 117-12BP-G is a 12 in. galvanized blind plug no-hub fitting restraint designed to reinforce no-hub cast iron blind plug and cap installations. Built with galvanized steel straps and a heavy-duty pipe clamp for large-diameter applications, it helps retain the plug to adjoining piping and achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly.
HoldRite 117-12BP-G Includes
- (1) 12 in. Galvanized Blind Plug No-Hub Fitting Restraint
HoldRite 117-12BP-G Features
- Designed for 12 in. no-hub cast iron blind plug and cap installations
- Galvanized steel restraint for large-diameter DWV testing applications
- Uses 16GA cold rolled steel galvanized strap material
- Heavy-duty steel pipe clamp design for 10 in. to 15 in. sizes
- Retains the blind plug onto adjoining piping
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Requires 60 ft./lbs. torque on pipe clamp bolts for 10 in. to 15 in. sizes
HoldRite 117-12BP-G Specifications
| Brand | HoldRite |
| Series | 117-BP |
| Product Type | Blind Plug No-Hub Fitting Restraint |
| Nominal Size | 12 in. |
| Finish | Galvanized |
| Application | No-hub cast iron blind plugs/caps |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Required Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Pressure Rating | 50 ft. head of water pressure |
| Case Quantity | 2 |
| Each Shipping Weight | 17.8 lb |
