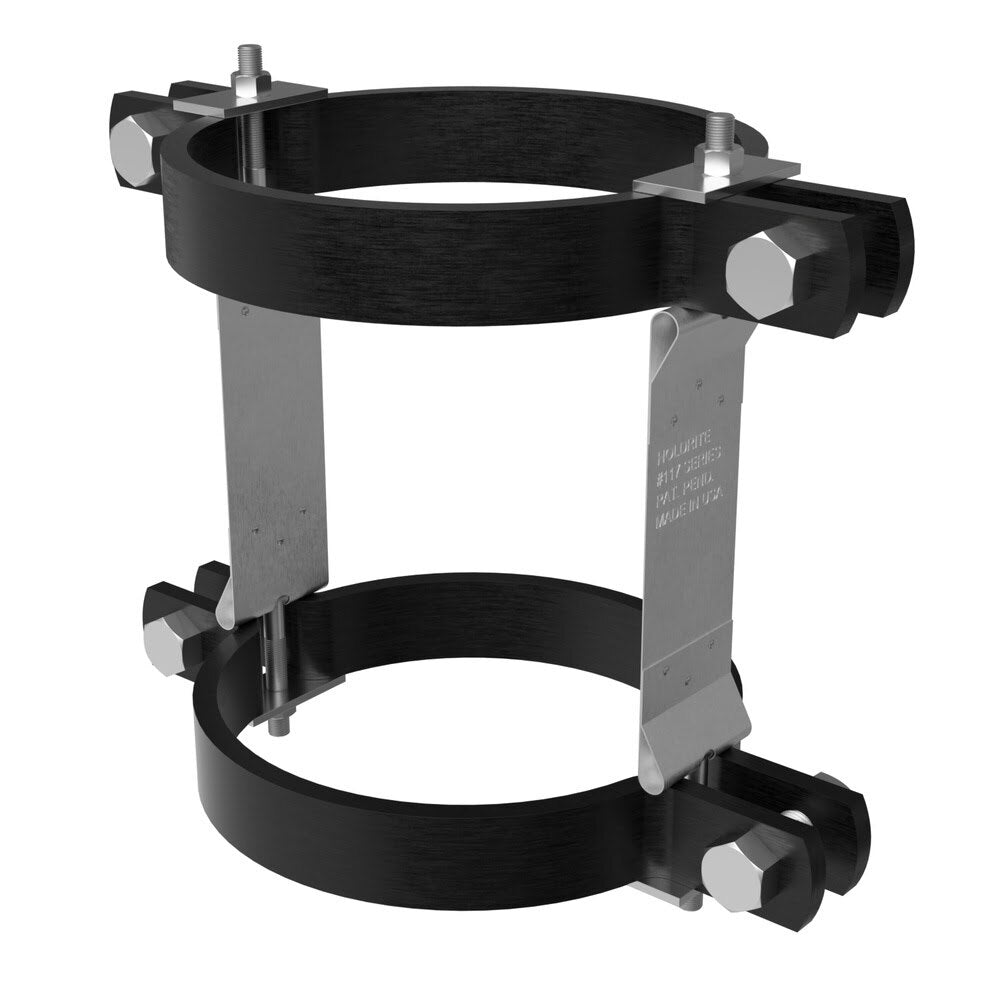

HoldRite 117-12S Description
The HoldRite 117-12S is a 12 in. no-hub coupling restraint designed to reinforce straight coupling joints in no-hub cast iron DWV installations. Part of the 117-S Series, it helps retain adjoining pipe sections at the coupling and is built for large-diameter applications using heavy-duty clamp and strap components.
HoldRite 117-12S Includes
- (1) 12 in. No-Hub Coupling Restraint
HoldRite 117-12S Features

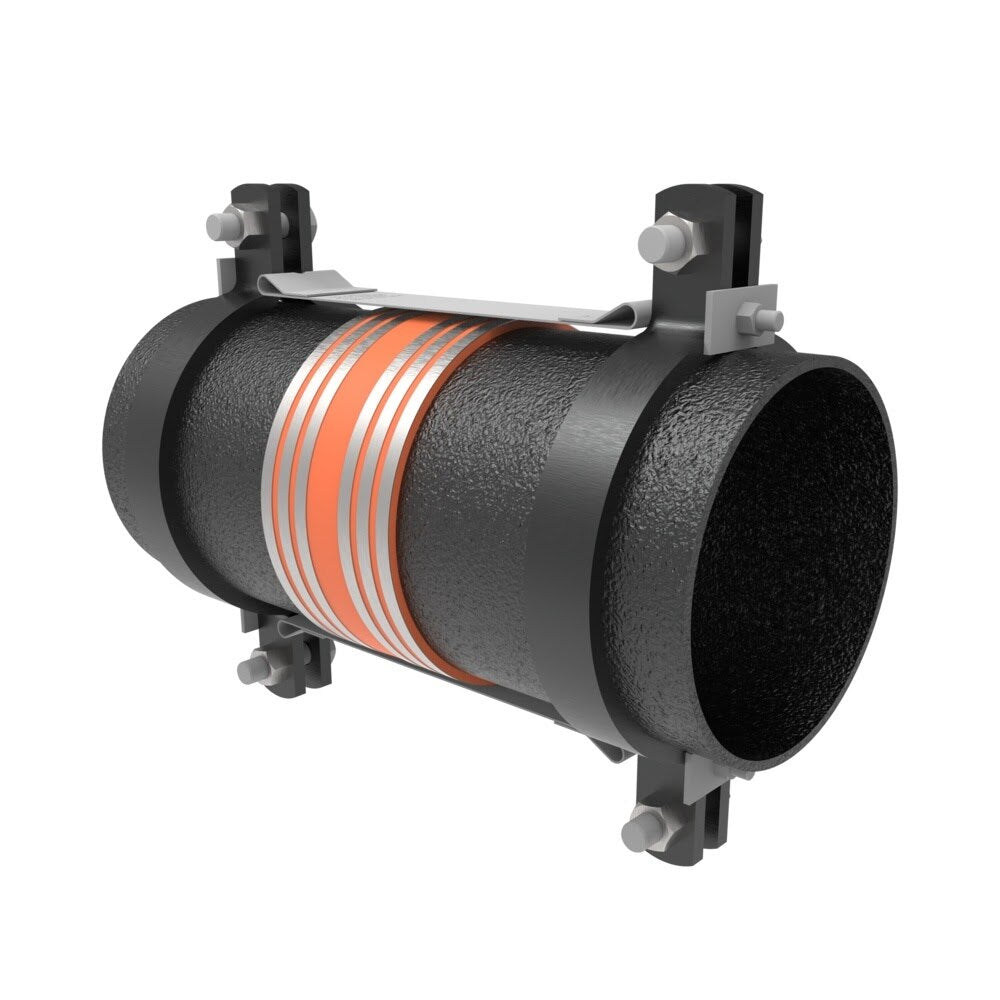

- Designed to reinforce 12 in. no-hub straight coupling joints
- For no-hub cast iron DWV installations
- Helps retain adjoining pipe sections at the coupling
- Part of the HoldRite 117-S Series
- Large-diameter design uses heavy-duty pipe clamps and straps
- When installed correctly, achieves a safe thrust pressure rating equal to 50 ft. head of water pressure
HoldRite 117-12S Specifications
| Brand | HoldRite |
| SKU | 117-12S |
| Series | 117-S Series |
| Product Type | No-Hub Coupling Restraint |
| Nominal Size | 12 in. |
| Application | Straight coupling joint restraint for no-hub cast iron DWV installations |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Product Length | 20.5 in. |
| Product Width | 13.5 in. |
| Product Height | 5.25 in. |
| Product Shipping Weight | 33 lb |
| Case Quantity | 2 |
| Case Length | 30.3 in. |
| Case Width | 17.6 in. |
| Case Height | 17.6 in. |
| Case Weight | 64.2 lb |
Toolup Part # :
882069
