HoldRite 117-12S-G Description

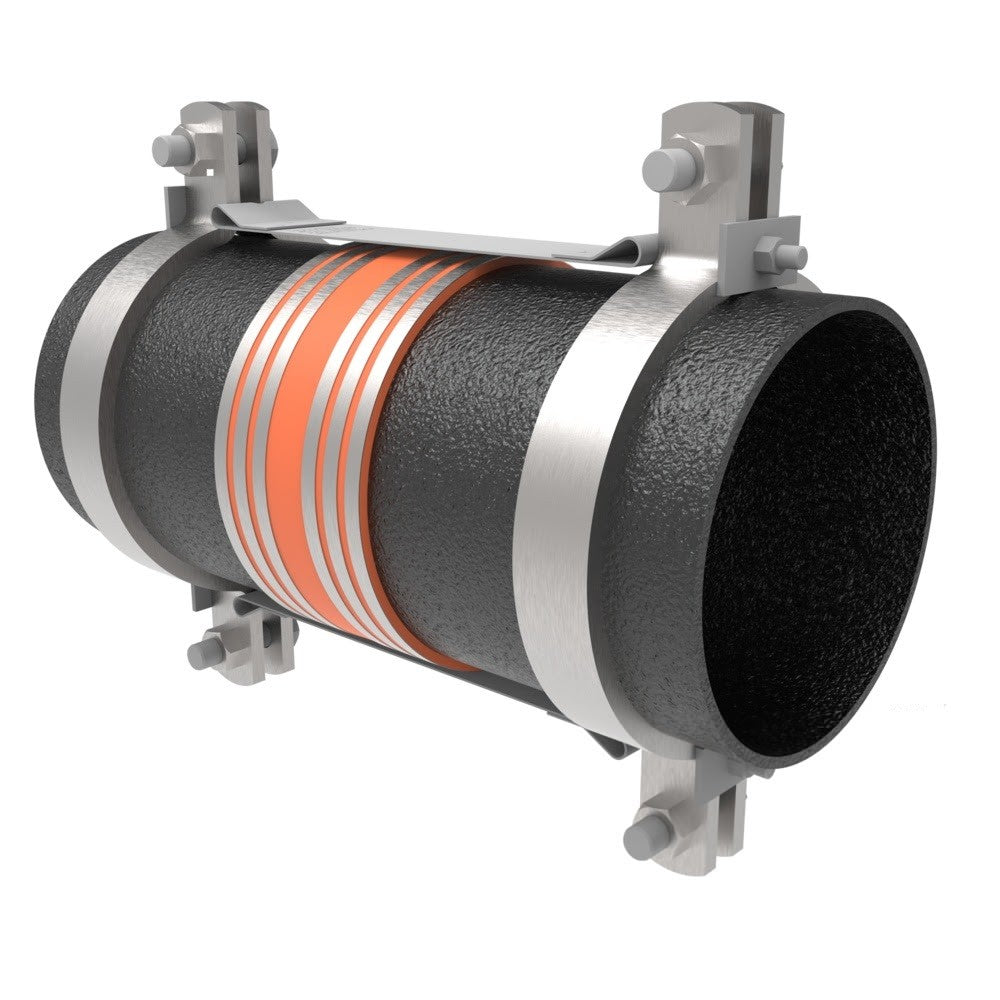

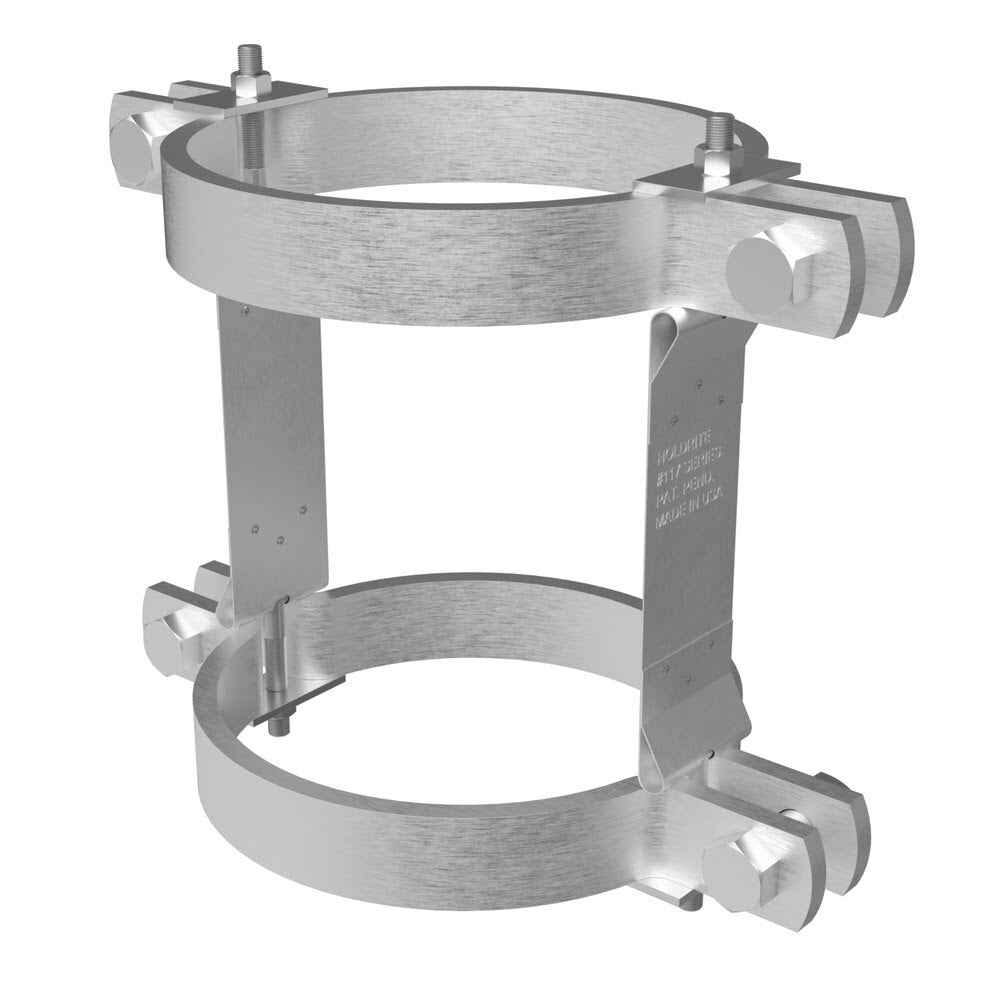

The HoldRite 117-12S-G is a 12 in. galvanized no-hub coupling restraint designed to reinforce straight no-hub cast iron couplings in DWV installations. When installed correctly, it achieves a safe thrust pressure rating equal to 50 ft. head of water pressure and is built for large-diameter applications with heavy-duty clamp components.
HoldRite 117-12S-G Includes
- (1) 12 in. No Hub Coupling Restraint
- (2) Galvanized steel straps with T-bolts
HoldRite 117-12S-G Features
- Designed to reinforce straight no-hub cast iron coupling installations
- Galvanized steel construction for corrosion resistance
- Built for large-diameter 12 in. applications
- Uses heavy-duty pipe clamp and strap design for sizes 10 in. to 15 in.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water when installed correctly
- Requires 60 ft./lbs. torque on pipe clamp bolts for large-diameter sizes
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-12S-G Specifications
| Brand | HoldRite |
| Series | 117-S Series |
| Product Type | No-Hub Straight Coupling Restraint |
| Size | 12 in. |
| Finish | Galvanized |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Hardware Material | Standard |
| Pressure Rating | 50 ft. head of water |
| Torque Requirement | 60 ft./lbs. on pipe clamp bolts |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length (in) | 30.25 |
| Product Width (in) | 18.25 |
| Product Height (in) | 3.25 |
| Shipping Weight (lb) | 16.6 |
