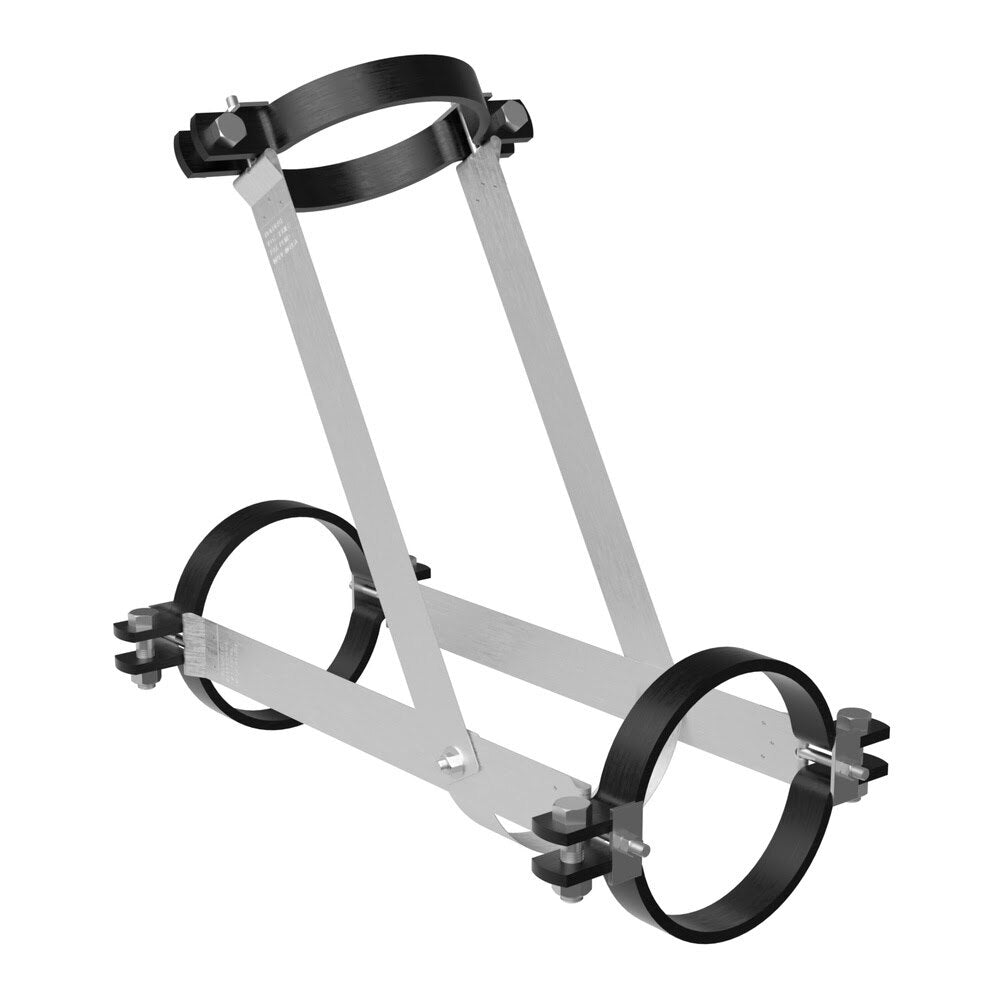

HoldRite 117-12W Description

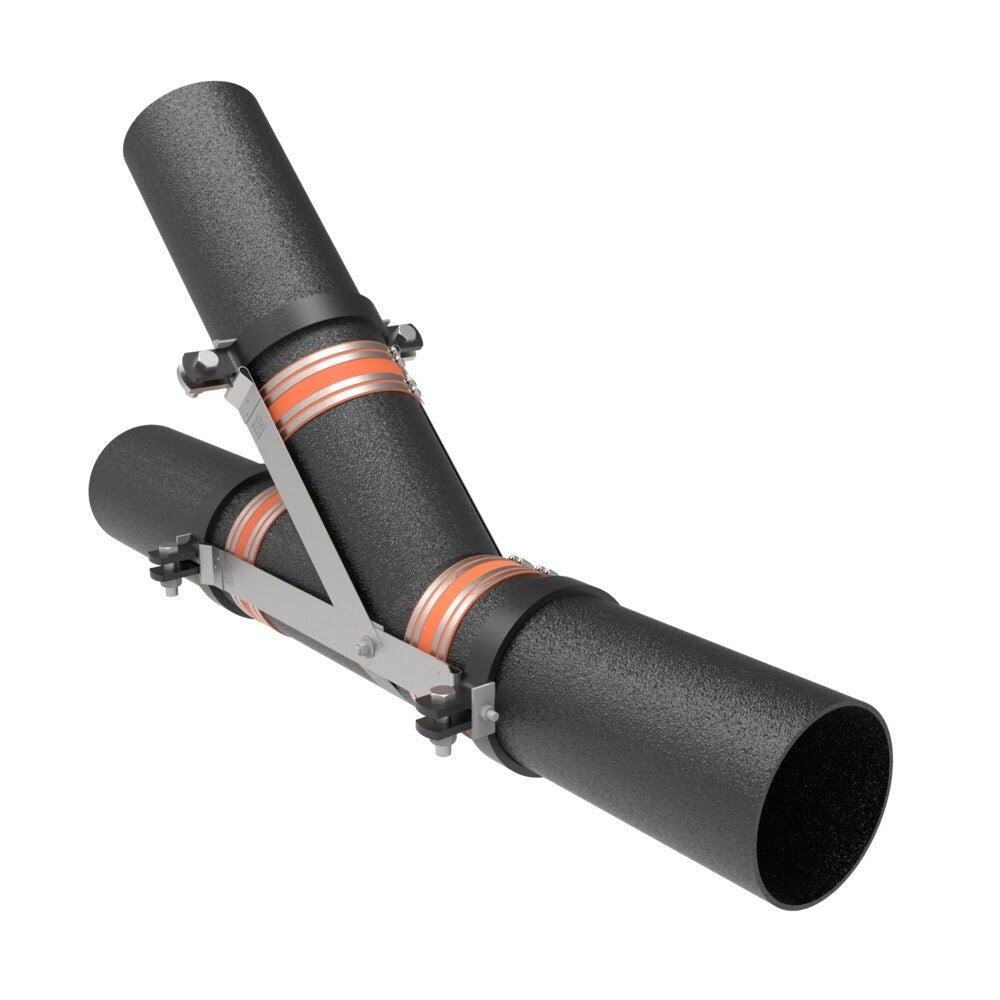

The HoldRite 117-12W 12 in. No-Hub Wye Restraint is designed to reinforce no-hub cast iron installations and secure the wye fitting to adjoining piping in mid-span runs. Built for large-diameter DWV systems, it uses heavy-duty clamps and galvanized steel straps to help achieve a safe thrust pressure rating equal to 50 ft. head of water pressure when installed according to instructions.
HoldRite 117-12W Includes
- (1) 12 in. No-Hub Wye Restraint
HoldRite 117-12W Features
- Designed to reinforce no-hub cast iron installations
- Retains the wye fitting to adjoining piping in mid-span runs
- Built for large-diameter 10 in. to 15 in. applications with heavy-duty steel pipe clamps and straps
- Helps achieve a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Constructed with 16 ga. cold-rolled galvanized steel straps
- Uses heavy-duty black or galvanized steel pipe clamps
- Complies with CISPI Designation 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Pipe clamp bolts require 60 ft./lbs. torque for 10 in. to 15 in. sizes
HoldRite 117-12W Specifications
| Series | 117-W |
| Product Type | No-Hub Wye Restraint |
| Nominal Size | 12 in. |
| Application | No-hub cast iron DWV installations |
| Installation Location | Mid-span runs |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Thrust Pressure Rating | 50 ft. head of water pressure |
| Product Length (in) | 30.25 |
| Product Width (in) | 17.75 |
| Product Height (in) | 3.5 |
| Shipping Weight (lbs) | 37.5 |
Toolup Part # :
882042
