HoldRite 117-12W-G Description

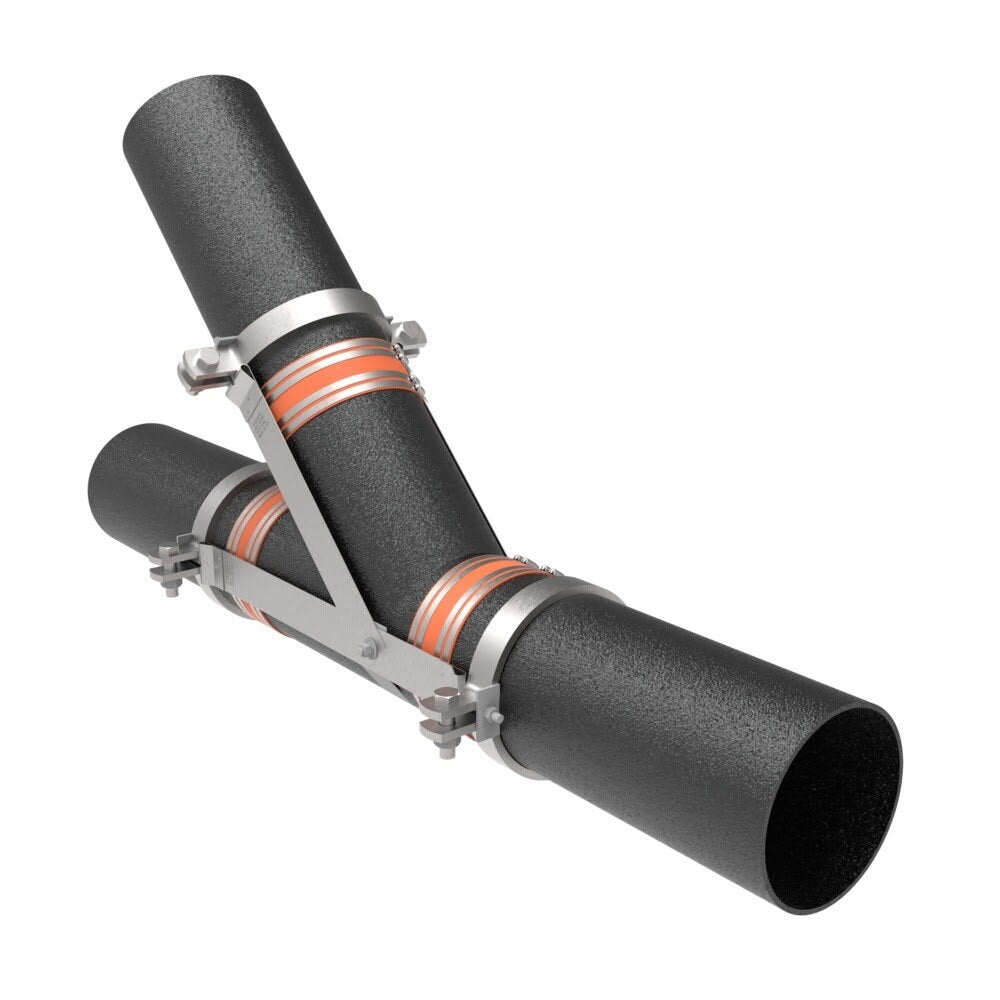

The HoldRite 117-12W-G is a 12 in galvanized no-hub wye fitting restraint designed to reinforce no-hub cast iron installations in mid-span runs. Built as part of the 117-W Series, it helps retain the wye fitting on adjoining piping and can achieve a safe thrust pressure rating equal to 50 ft. head of water pressure when installed per applicable CISPI guidelines.
HoldRite 117-12W-G Includes

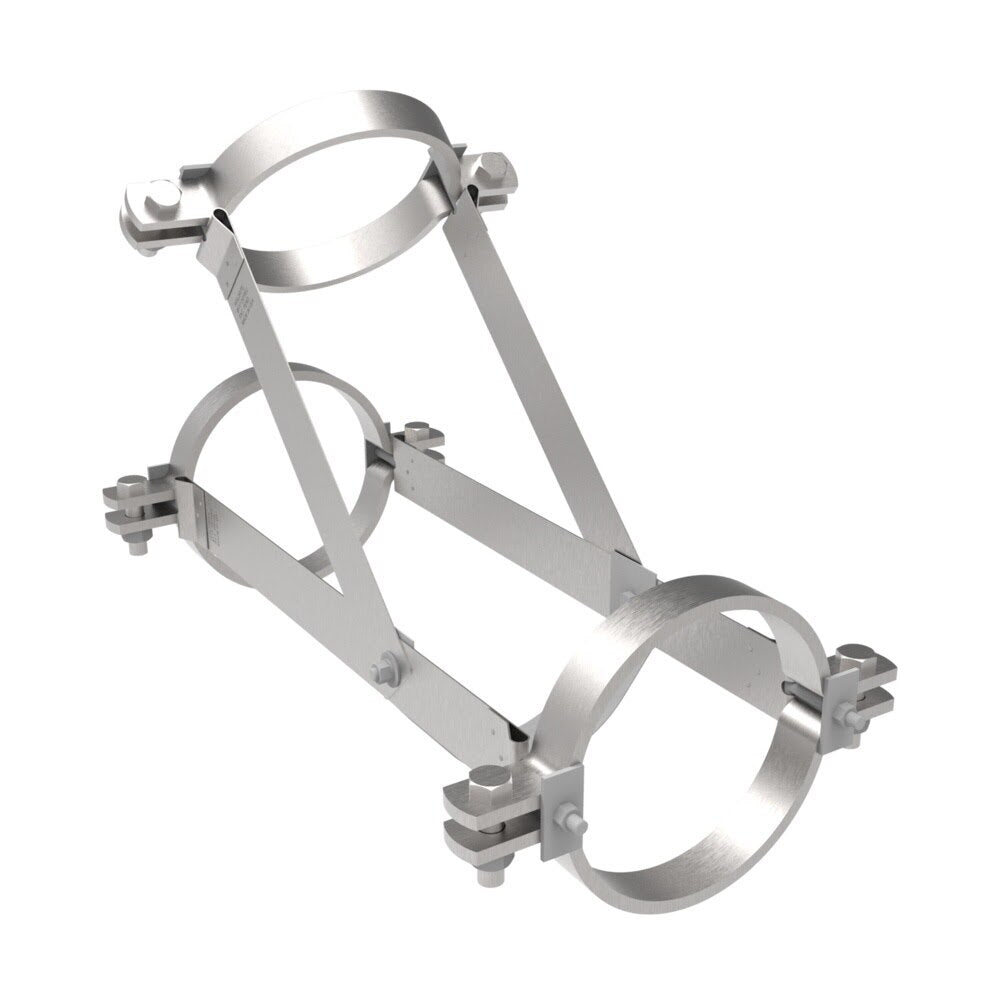

- (1) HoldRite 117-12W-G 12 in No-Hub Wye Fitting Restraint Assembly
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-12W-G Features
- Designed for 12 in no-hub wye fitting applications
- Galvanized steel construction for corrosion resistance and durability
- Reinforces no-hub cast iron installations in mid-span runs
- Helps retain the wye fitting onto adjoining piping
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Large-diameter design uses heavy-duty pipe clamp and strap construction
- Pipe clamp bolts require 60 ft./lbs. of torque for 10 in to 15 in sizes
HoldRite 117-12W-G Specifications
| Brand | HoldRite |
| Series | 117-W |
| Product Type | No-Hub Wye Fitting Restraint |
| Size | 12 in |
| Finish | Galvanized |
| Strap Material | 16GA CRS Galvanized Steel |
| Clamp Style | Heavy-Duty Steel Pipe Clamp |
| Hardware Material | Standard |
| Application | Reinforce no-hub cast iron installations |
| Installation Location | Mid-span runs |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Product Length (in) | 30.25 |
| Product Width (in) | 17.5 |
| Product Height (in) | 3.5 |
| Shipping Weight (lb) | 60 |
Toolup Part # :
882014
