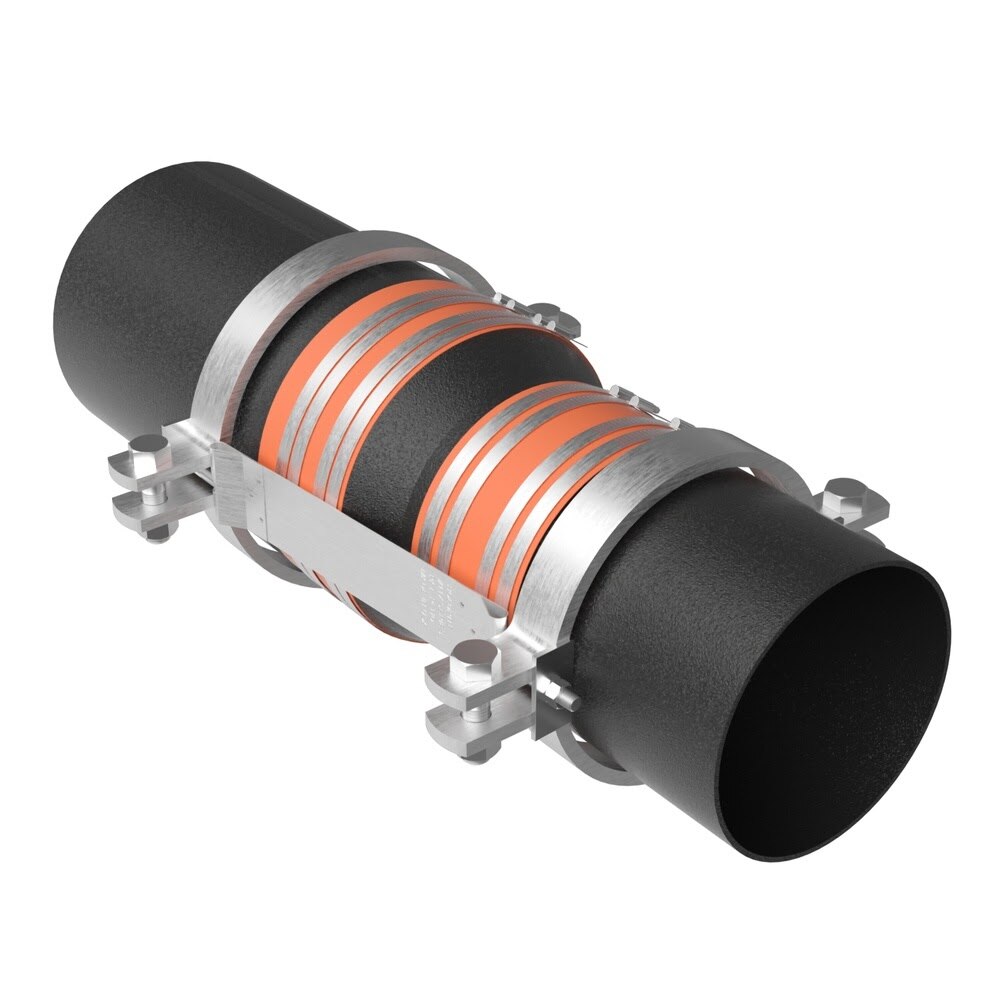

HoldRite 117-12x10R-G Description
The HoldRite 117-12x10R-G is a 12 in. x 10 in. galvanized no-hub short reducer restraint for DWV cast iron reducer installations. Part of the 117-R Series, it reinforces the fitting connection to adjoining piping and, when installed correctly, provides a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-12x10R-G Includes
- (1) 12 in. x 10 in. No-Hub Short Reducer Restraint
- (2) Galvanized Steel Straps with T-Bolts
- (2) Heavy-Duty Pipe Clamps
HoldRite 117-12x10R-G Features
- Designed for 12 in. x 10 in. no-hub cast iron reducer fittings
- Galvanized steel construction for durability and corrosion resistance
- Reinforces no-hub reducer installations and helps retain fittings to adjoining piping
- Part of the HoldRite 117-R Series for DWV no-hub fitting restraints
- Heavy-duty clamp and strap design for larger size applications
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Requires 60 ft./lbs. torque on pipe clamp bolts for sizes 10 in. to 15 in.
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-12x10R-G Specifications
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Series | 117-R Series |
| Size | 12 in. x 10 in. |
| Finish | Galvanized |
| Application | DWV no-hub cast iron reducer installations |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Type | Heavy-duty steel pipe clamp |
| Thrust Pressure Rating | 50 ft. head of water pressure |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Length | 29.9 in. |
| Width | 17.6 in. |
| Height | 3.6 in. |
| Shipping Weight | 32 lb |
| Case Quantity | 2 |
